| Item | Part No. | Part Name | Qty | Serial No. |

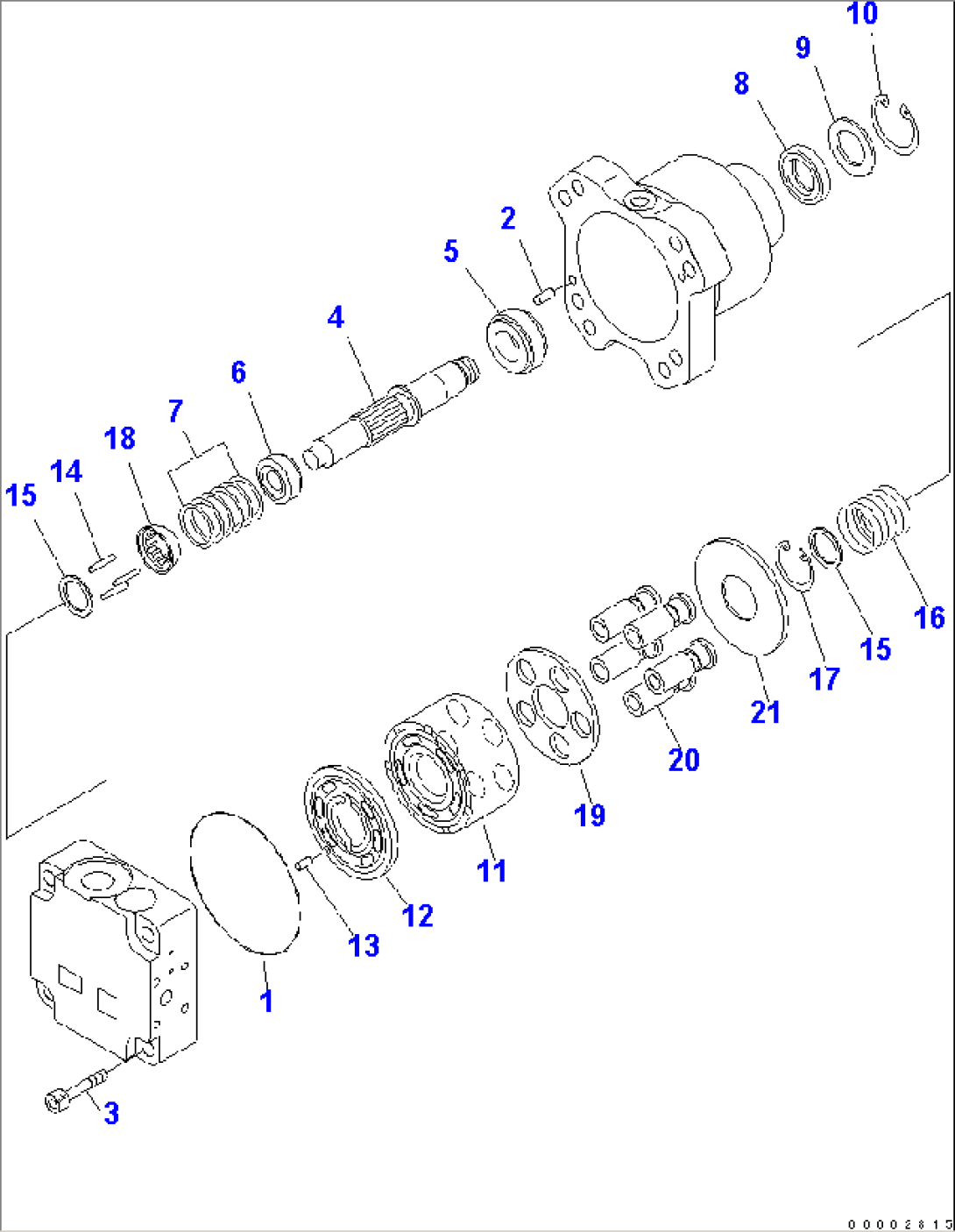

| (708-7S-00550) | MOTOR ASS'Y | 85001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1642-01A0 AND Y1642-02A0. | ||||
| 1 | 07000-E2110 | O-RING | 85001- | |
| 2 | 04020-00616 | PIN,DOWEL | 85001- | |
| 3 | 01252-61255 | BOLT | 85001- | |
| 4 | (\7\708-7S-12330) | SHAFT | 85001- | |
| 5 | (\7\708-7S-12140) | BEARING | 85001- | |
| 6 | (\7\708-7S-12220) | BEARING | 85001- | |
| 7 | (\7\708-7S-05110) | SHIM KIT | 85001- | |
| 7 | \6\ | SHIM, 0.85MM | 85001- | |
| 7 | \6\ | SHIM, 1.05MM | 85001- | |
| 7 | \6\ | SHIM, 1.25MM | 85001- | |
| 7 | \6\ | SHIM, 0.75MM | 85001- | |
| 7 | \6\ | SHIM, 0.95MM | 85001- | |
| 7 | \6\ | SHIM, 1.15MM | 85001- | |
| 8 | (\7\708-7T-12330) | SEAL,OIL | 85001- | |
| 9 | (\7\708-1S-11890) | SPACER | 85001- | |
| 10 | 04065-04518 | RING,SNAP | 85001- | |
| 11 | (\7\708-7S-13120) | BLOCK,CYLINDER | 85001- | |
| 12 | (\7\708-7S-13250) | PLATE,VALVE | 85001- | |
| 13 | (\7\720-68-19610) | PIN | 85001- | |
| 14 | (\7\708-2L-23360) | PIN | 85001- | |
| 15 | (\7\708-7S-13530) | SPACER | 85001- | |
| 16 | (\7\708-7S-13560) | SPRING | 85001- | |
| 17 | 04065-03212 | RING,SNAP | 85001- | |
| 18 | (\7\708-7S-13550) | GUIDE,RETAINER | 85001- | |
| 19 | (\7\708-7S-13360) | RETAINER,SHOE | 85001- | |
| 20 | (\7\708-7S-13350) | PISTON SUB ASS'Y | 85001- | |
| 21 | (\7\708-7S-13420) | PLATE,THRUST | 85001- |
