| Item | Part No. | Part Name | Qty | Serial No. |
| (708-7R-00700) | MOTOR ASS'Y | 70001- | ||

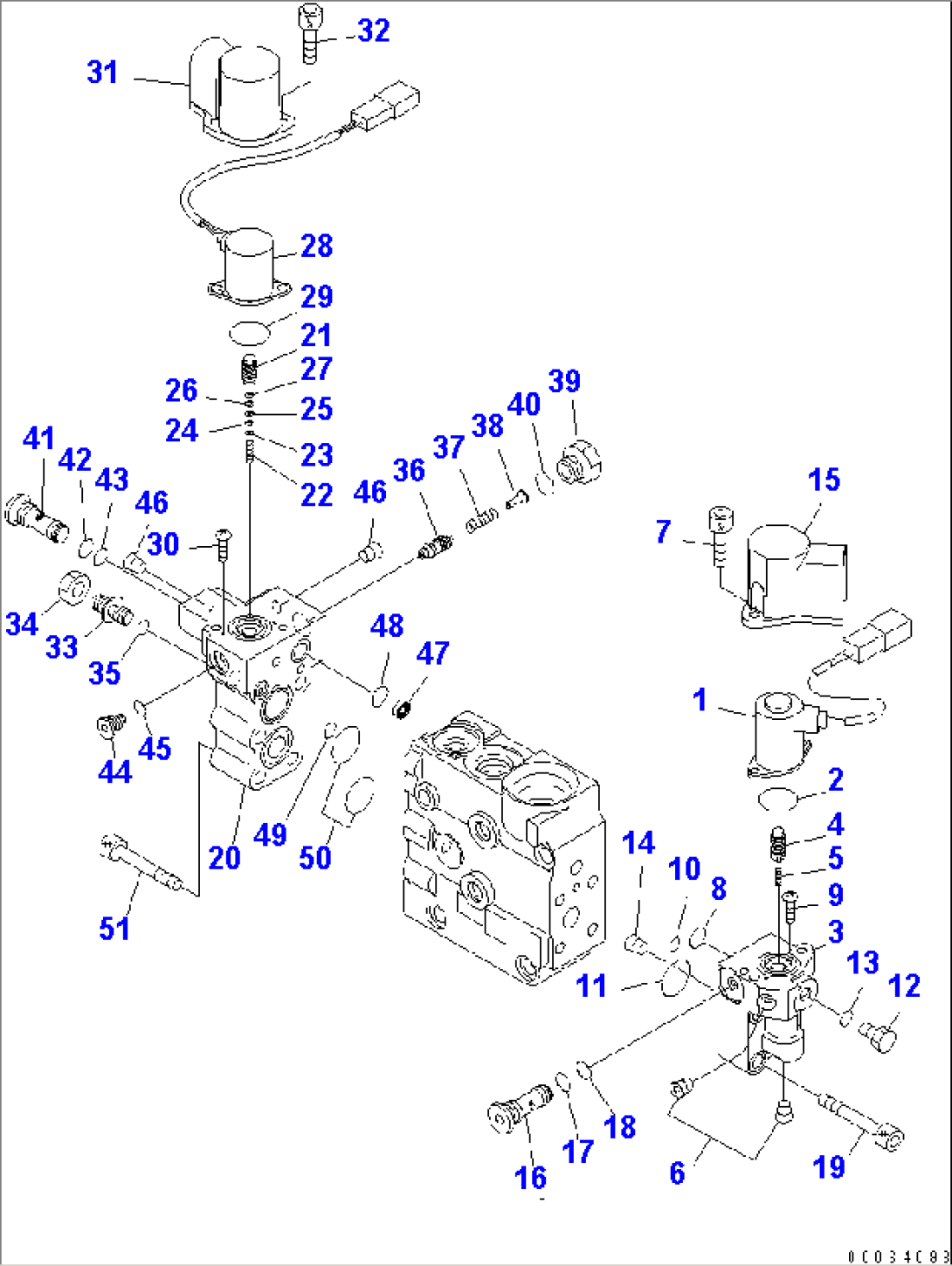

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1642-01A0 TO Y1642-03A0. | ||||
| (708-7R-01680) | COVER SUB ASS'Y | 70001- | ||
| 708-7R-01631 | PILOT VALVE ASS'Y | 70001- | ||
| 1 | (\7\702-21-56241) | SOLENOID | 70001- | |
| 2 | (\7\700-80-61260) | O-RING | 70001- | |
| 3 | \6\ | CASE | 70001- | |
| 4 | \6\ | SPOOL | 70001- | |
| 5 | \6\ | SPRING | 70001- | |
| 6 | (\7\708-21-12541) | PLUG | 70001- | |
| 7 | 01252-60616 | BOLT | 70001- | |
| 8 | 708-2L-25490 | O-RING | 70001- | |
| 9 | (\7\702-21-54180) | SCREW | 70001- | |
| 10 | 07000-11008 | O-RING | 70001- | |
| 11 | 723-11-18430 | O-RING | 70001- | |
| 12 | 07040-11007 | PLUG | 70001- | |
| 13 | 07002-11023 | O-RING | 70001- | |
| 14 | (\7\708-2L-29460) | ORIFICE | 70001- | |
| 15 | 708-1S-18180 | COVER | 70001- | |
| 16 | (\7\708-7R-18230) | FILTER | 70001- | |
| 17 | (\7\07002-11423) | O-RING | 70001- | |
| 18 | (\7\07000-11009) | O-RING | 70001- | |
| 19 | 01252-60835 | BOLT | 70001- | |
| 708-7R-01622 | PILOT VALVE ASS'Y | 70001- | ||
| 20 | \6\ | CASE | 70001- | |
| 21 | \6\ | SPOOL | 70001- | |
| 22 | \6\ | SPRING | 70001- | |
| 23 | \6\ | SHIM, 1.0MM | 70001- | |
| 24 | \6\ | SHIM, 1.2MM | 70001- | |
| 25 | \6\ | SHIM, 1.4MM | 70001- | |
| 26 | \6\ | SHIM, 0.8MM | 70001- | |
| 27 | \6\ | SHIM, 0.6MM | 70001- | |
| 28 | (\7\702-21-57410) | SOLENOID | 70001- | |
| 29 | (\7\700-80-61260) | O-RING | 70001- | |
| 30 | (\7\702-21-54180) | SCREW | 70001- | |
| 31 | 708-1S-18180 | COVER | 70001- | |
| 32 | 01252-60616 | BOLT | 70001- | |
| 33 | \6\ | PLUG | 70001- | |
| 34 | \6\ | NUT | 70001- | |
| 35 | \6\ | O-RING | 70001- | |
| 36 | \6\ | SPOOL | 70001- | |
| 37 | \6\ | SPRING | 70001- | |
| 38 | \6\ | RETAINER | 70001- | |
| 39 | \6\ | PLUG | 70001- | |
| 40 | \6\ | O-RING | 70001- | |
| 41 | (\7\708-7R-18230) | FILTER | 70001- | |
| 42 | (\7\07002-11423) | O-RING | 70001- | |
| 43 | (\7\07000-11009) | O-RING | 70001- | |
| 44 | (\7\702-21-54190) | FILTER | 70001- | |
| 45 | (\7\07002-11023) | O-RING | 70001- | |
| 46 | (\7\708-21-12541) | PLUG | 70001- | |
| 47 | (\7\708-2L-25480) | FILTER | 70001- | |
| 48 | (\7\723-11-19490) | O-RING | 70001- | |
| 49 | 07000-11010 | O-RING | 70001- | |
| 50 | 702-21-55440 | O-RING | 70001- | |
| 51 | 01252-60845 | BOLT | 70001- |
