| Item | Part No. | Part Name | Qty | Serial No. |
| 708-1W-90600 | PUMP ASS'Y | 30001- | ||

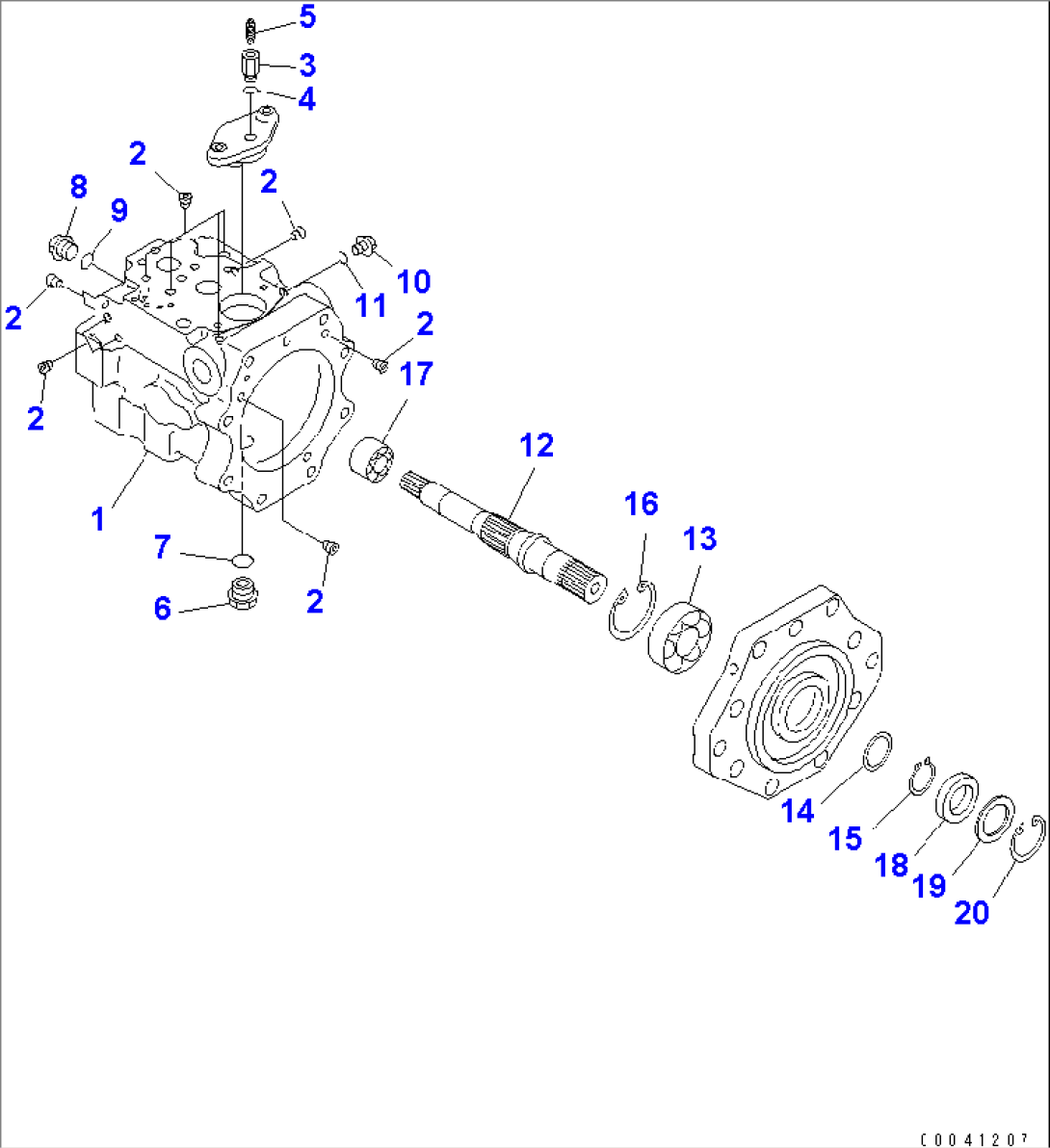

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-21A0 T0 Y1600-31A0. | ||||
| 708-1W-90631 | PUMP ASS'Y | 30001- | ||
| (\7\708-1W-01632) | PUMP SUB ASS'Y | 30001- | ||
| (\7\708-1W-04222) | CASE ASS'Y | 30001- | ||
| 1 | \6\ | CASE,PUMP | 30001- | |
| 2 | \6\ | PLUG | 30001- | |
| 3 | 708-1W-28940 | PLUG | 30001- | |
| 4 | 07002-62434 | O-RING | 30001- | |
| 5 | 20B-27-11210 | BLEEDER | 30001- | |
| 6 | 720-68-19870 | PLUG | 30001- | |
| 7 | 07002-61223 | O-RING | 30001- | |
| 8 | 706-8E-14191 | PLUG | 30001- | |
| 9 | 07002-61823 | O-RING | 30001- | |
| 10 | 708-8E-16150 | PLUG | 30001- | |
| 11 | 07002-61023 | O-RING | 30001- | |
| 12 | (\7\708-1W-22310) | SHAFT | 30001- | |
| 13 | (\7\708-1W-22140) | BEARING | 30001- | |
| 14 | (\7\708-23-05011) | WASHER KIT | 30001- | |
| 14 | \6\ | WASHER, 2.60MM | 30001- | |
| 14 | \6\ | WASHER, 2.70MM | 30001- | |
| 14 | \6\ | WASHER, 2.80MM | 30001- | |
| 14 | \6\ | WASHER, 2.50MM | 30001- | |
| 15 | (\7\708-23-12840) | RING,SNAP | 30001- | |
| 16 | (\7\04065-07225) | RING,SNAP | 30001- | |
| 17 | (\7\708-1W-22320) | BEARING | 30001- | |
| 18 | 708-8D-12221 | SEAL,OIL | 30001- | |
| 19 | 708-1W-22160 | SPACER | 30001- | |
| 20 | 04065-05520 | RING | 30001- |
