| Item | Part No. | Part Name | Qty | Serial No. |
| 708-1S-00240 | PUMP ASS'Y | B45001-B47487 | ||

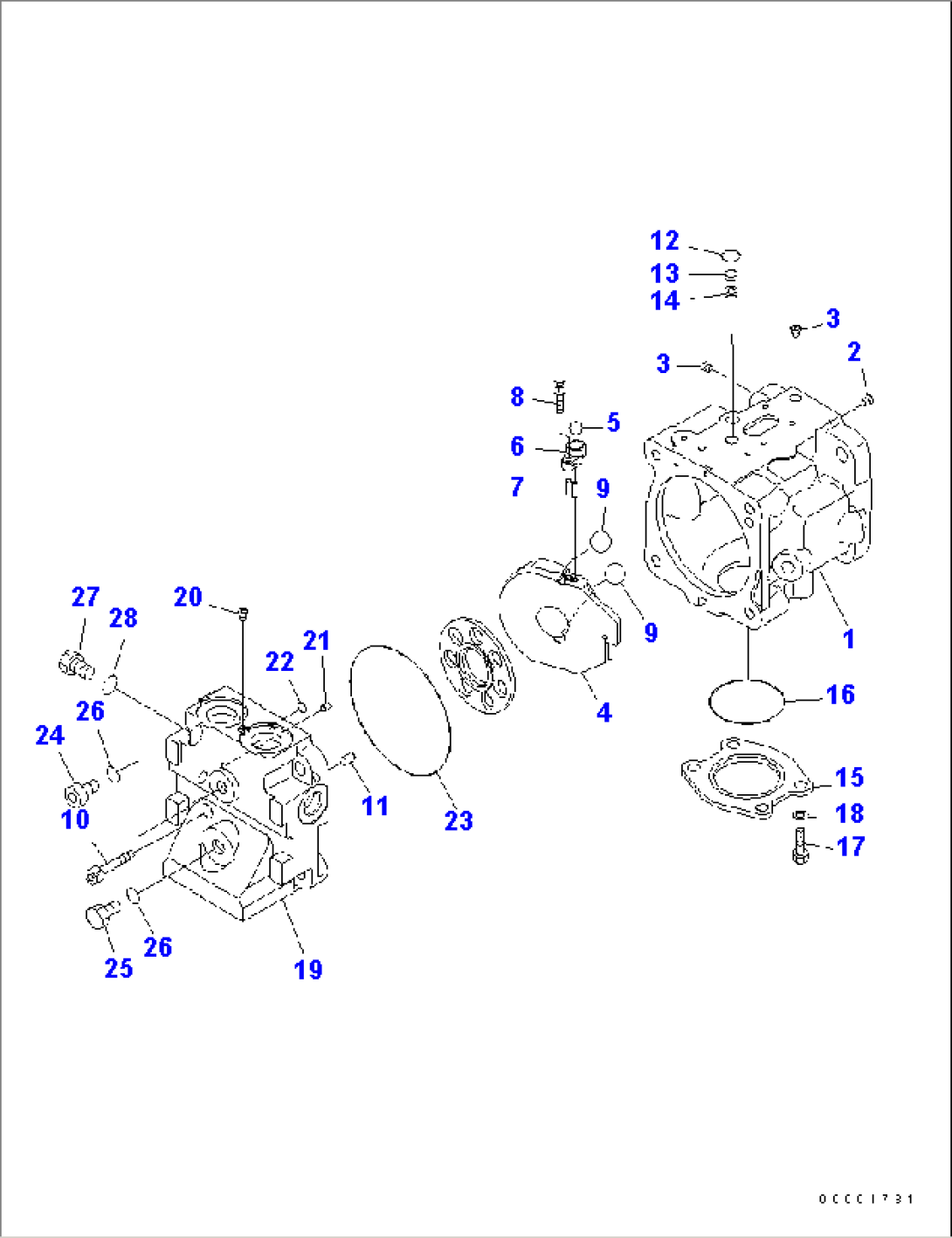

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-11A0 TO Y1600-15A0B. | ||||
| 708-1S-01930 | PUMP SUB ASS'Y | B45001-B47487 | ||
| (\7\708-1T-04410) | CASE SUB ASS'Y | B45001-B47487 | ||
| 1 | \6\ | CASE,PUMP | B45001-B47487 | |
| 2 | \6\ | PLUG | B45001-B47487 | |
| 3 | \6\ | PLUG | B45001-B47487 | |
| 4 | (\7\708-1S-13411) | CAM,ROCKER | B45001-B47487 | |
| 5 | (\7\04260-01270) | BALL | B45001-B47487 | |
| 6 | (\7\708-1S-14611) | SPACER | B45001-B47487 | |
| 7 | (\7\708-1S-13420) | PIN | B45001-B47487 | |
| 8 | (\7\01252-60616) | BOLT | B45001-B47487 | |
| 9 | (\7\708-1S-13430) | BALL | B45001-B47487 | |
| 10 | 01252-61235 | BOLT | B45001-B47487 | |
| 11 | (\7\04020-01024) | PIN | B45001-B47487 | |
| 12 | 708-2L-25490 | O-RING | B45001-B47487 | |
| 13 | 708-2L-25480 | FILTER | B45001-B47487 | |
| 14 | 708-1S-19710 | ORIFICE | B45001-B47487 | |
| 15 | 708-1S-19920 | PLATE | B45001-B47487 | |
| 16 | 07000-12065 | O-RING | B45001-B47487 | |
| 17 | 01010-81025 | BOLT | B45001-B47487 | |
| 18 | 01643-31032 | WASHER | B45001-B47487 | |
| (\7\708-1S-04390) | CAP SUB ASS'Y | B45001-B47487 | ||
| 19 | \6\ | CAP,END | B45001-B47487 | |
| 20 | \6\ | PLUG | B45001-B47487 | |
| 21 | (\7\720-68-19610) | PIN | B45001-B47487 | |
| 22 | (\7\07000-11006) | O-RING | B45001-B47487 | |
| 23 | (\7\07000-12125) | O-RING | B45001-B47487 | |
| 24 | 702-21-55620 | PLUG | B45001-B47487 | |
| 25 | 07040-11409 | PLUG | B45001-B47487 | |
| 26 | 07002-11423 | O-RING | B45001-B47487 | |
| 27 | 07040-12012 | PLUG | B45001-B47487 | |
| 28 | 07002-12034 | O-RING | B45001-B47487 |
