| Item | Part No. | Part Name | Qty | Serial No. |
| (708-1S-00240) | PUMP ASS'Y | 1001- | ||

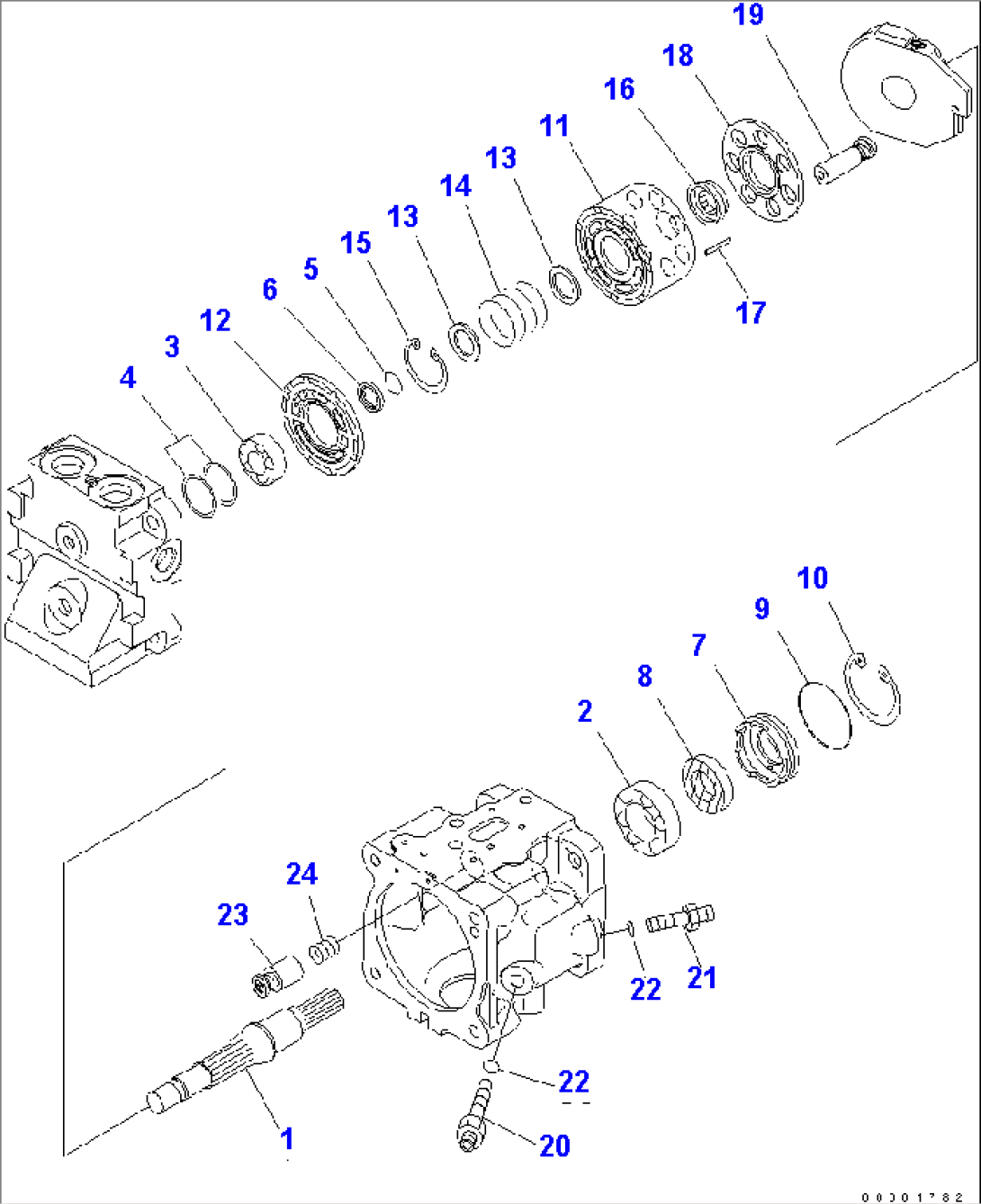

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-11A0 TO Y1600-15A0. | ||||
| (708-1S-01930) | PUMP SUB ASS'Y | 1001- | ||
| 1 | (\7\708-1S-12320) | SHAFT | 1001- | |
| 2 | (\7\706-73-40890) | BEARING | 1001- | |
| 3 | (\7\708-1S-12260) | BEARING | 1001- | |
| 4 | (\7\708-7T-05020) | SPACER KIT | 1001- | |
| 4 | \6\ | SPACER, 1.6MM | 1001- | |
| 4 | \6\ | SPACER, 1.7MM | 1001- | |
| 4 | \6\ | SPACER, 1.8MM | 1001- | |
| 4 | \6\ | SPACER, 1.9MM | 1001- | |
| 4 | \6\ | SPACER, 2.0MM | 1001- | |
| 4 | \6\ | SPACER, 2.1MM | 1001- | |
| 4 | \6\ | SPACER, 2.2MM | 1001- | |
| 5 | (\7\708-1S-12280) | RING,WIRE | 1001- | |
| 6 | (\7\708-1S-12330) | RETAINER | 1001- | |
| 7 | 708-1S-12340 | CASE | 1001- | |
| 8 | 708-1T-11880 | SEAL,OIL | 1001- | |
| 9 | 207-09-11140 | O-RING | 1001- | |
| 10 | 04065-06220 | RING | 1001- | |
| 11 | (\7\708-1S-13130) | BLOCK,CYLINDER | 1001- | |
| 12 | (\7\708-1S-13460) | PLATE,VALVE | 1001- | |
| 13 | (\7\708-3S-13160) | WASHER | 1001- | |
| 14 | (\7\708-3S-13150) | SPRING | 1001- | |
| 15 | (\7\04065-03515) | RING,SNAP | 1001- | |
| 16 | (\7\708-1S-13370) | GUIDE,RETAINER | 1001- | |
| 17 | (\7\708-1S-13380) | PIN | 1001- | |
| 18 | (\7\708-1S-13360) | RETAINER,SHOE | 1001- | |
| 19 | (\7\708-1S-13320) | PISTON SUB ASS'Y | 1001- | |
| 20 | (\7\708-1S-14210) | PLUG | 1001- | |
| 21 | (\7\708-1S-14220) | PLUG | 1001- | |
| 22 | (\7\07002-11223) | O-RING | 1001- | |
| 23 | (\7\708-1S-14230) | PISTON SUB ASS'Y | 1001- | |
| 24 | (\7\708-1S-14241) | SPRING | 1001- |
