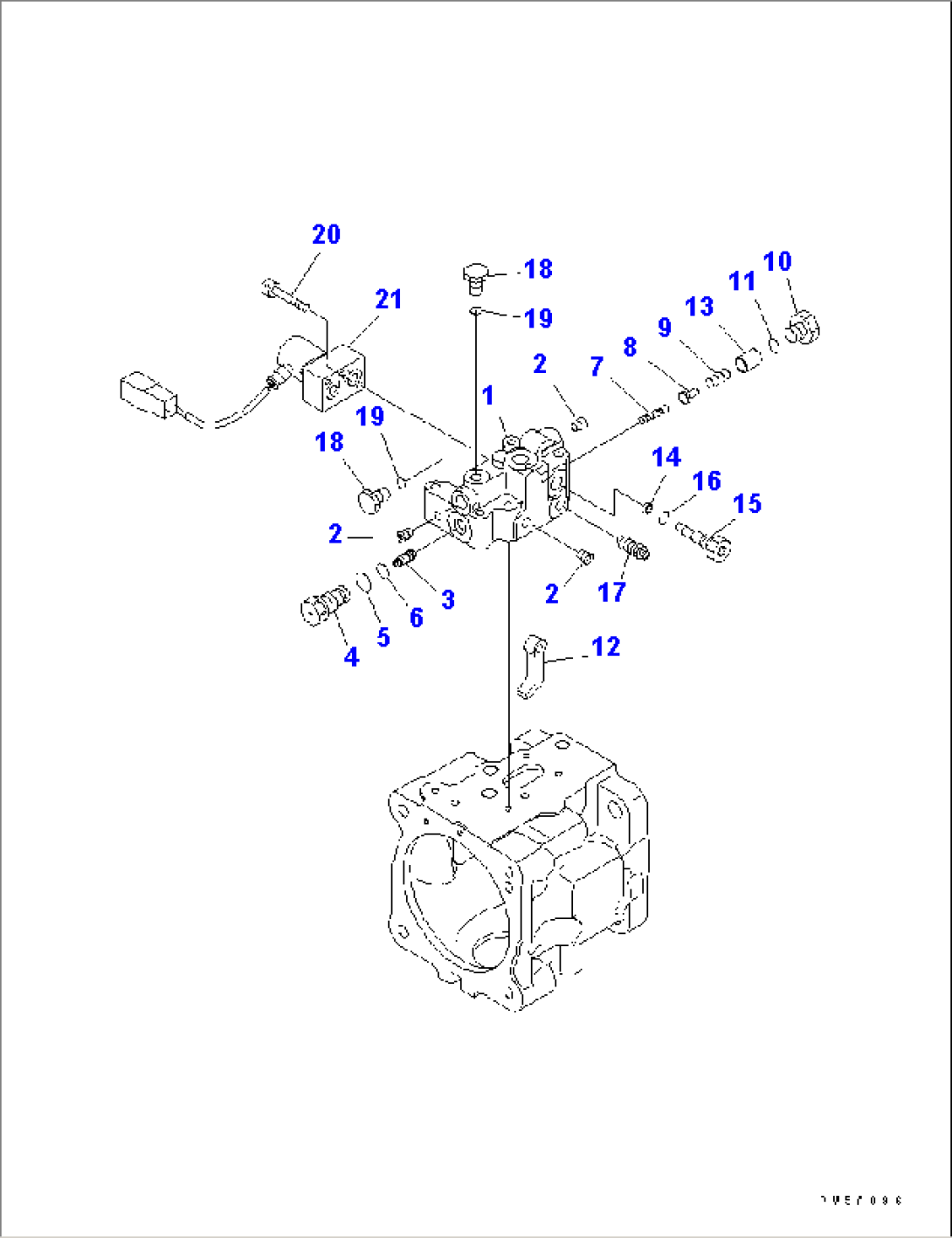

| Item | Part No. | Part Name | Qty | Serial No. |
| (708-1S-00240) | PUMP ASS'Y | B45001-B47487 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-11A0 TO Y1600-15A0B. | ||||
| (708-1S-01930) | PUMP SUB ASS'Y | B45001-B47487 | ||
| (\7\708-1S-03340) | VALVE ASS'Y | B45001-B47487 | ||
| (\7\708-1S-03920) | BODY SUB ASS'Y | B45001-B47487 | ||
| 1 | \6\ | BODY,VALVE | B45001-B47487 | |
| 2 | \6\ | PLUG | B45001-B47487 | |
| 3 | (\7\708-1S-15420) | PISTON | B45001-B47487 | |
| 4 | (\7\708-1S-15430) | SLEEVE | B45001-B47487 | |
| 5 | 07002-21623 | O-RING | B45001-B47487 | |
| 6 | 07000-B1010 | O-RING | B45001-B47487 | |
| 7 | (\7\708-1S-15230) | SPOOL | B45001-B47487 | |
| 8 | (\7\708-1S-15240) | SEAT | B45001-B47487 | |
| 9 | (\7\708-1S-15440) | SPRING | B45001-B47487 | |
| 10 | (\7\723-56-31630) | PLUG | B45001-B47487 | |
| 11 | 07002-21623 | O-RING | B45001-B47487 | |
| 12 | (\7\708-1S-15270) | LEVER | B45001-B47487 | |
| 13 | (\7\708-1S-15250) | RETAINER | B45001-B47487 | |
| 14 | (\7\708-1S-15280) | SPACER | B45001-B47487 | |
| 15 | (\7\708-1S-15260) | PLUG | B45001-B47487 | |
| 16 | 07002-21023 | O-RING | B45001-B47487 | |
| 17 | 20B-27-11210 | BLEEDER | B45001-B47487 | |
| 18 | 07040-11007 | PLUG | B45001-B47487 | |
| 19 | 07002-21023 | O-RING | B45001-B47487 | |
| 20 | 01252-60635 | BOLT | B45001-B47487 | |
| 21 | (\7\702-21-57700) | PILOT VALVE | B45001-B47487 |
