| Item | Part No. | Part Name | Qty | Serial No. |

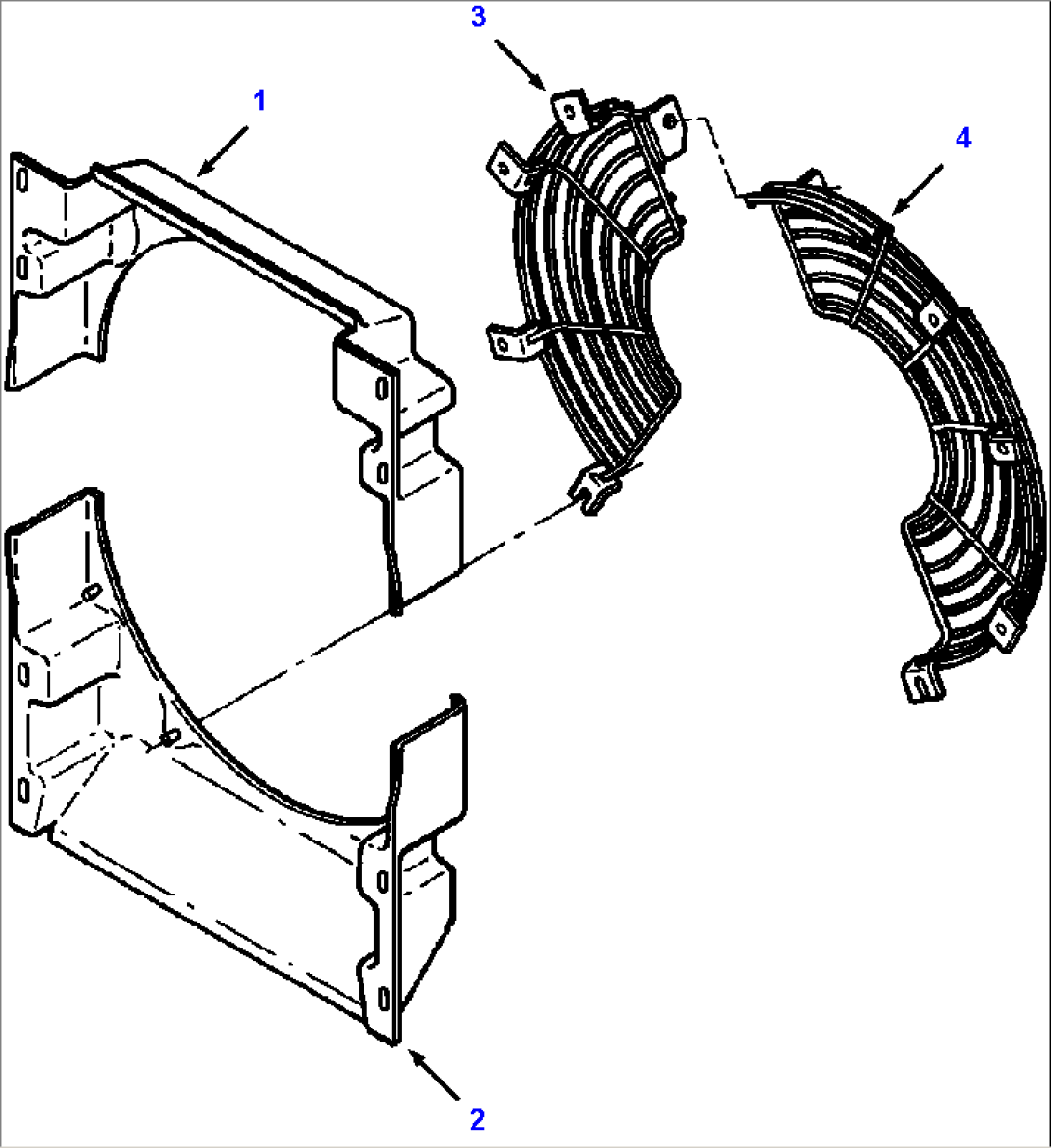

| (1269 788 H91) | FAN SHROUDS AND GUARDS | |||
| 1 | 1278 564 H1 | SHROUD, UPPER FAN | ||
| 26 309 R1 | BOLT, HEX - 3/8NCx3/4 | |||
| 25 544 R1 | WASHER, FLAT - 3/8 | |||
| 2 | 1278 565 H1 | SHROUD, LOWER FAN | ||
| 26 309 R1 | BOLT, HEX - 3/8NCx3/4 | |||
| 25 544 R1 | WASHER, FLAT - 3/8 | |||
| 3 | 1269 740 H91 | GUARD, RIGHT FAN | ||
| 25 493 R1 | BOLT, HEX - 5/16NCx1 | |||
| 1311 024 H1 | WASHER, SPECIAL | |||
| 4 | 1269 739 H91 | GUARD, LEFT FAN | ||
| 25 493 R1 | BOLT, HEX - 5/16NCx1 | |||
| 1311 024 H1 | WASHER, SPECIAL | |||
| 25 520 R1 | NUT, HEX - 5/16NC | |||
| F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY. | ||||
