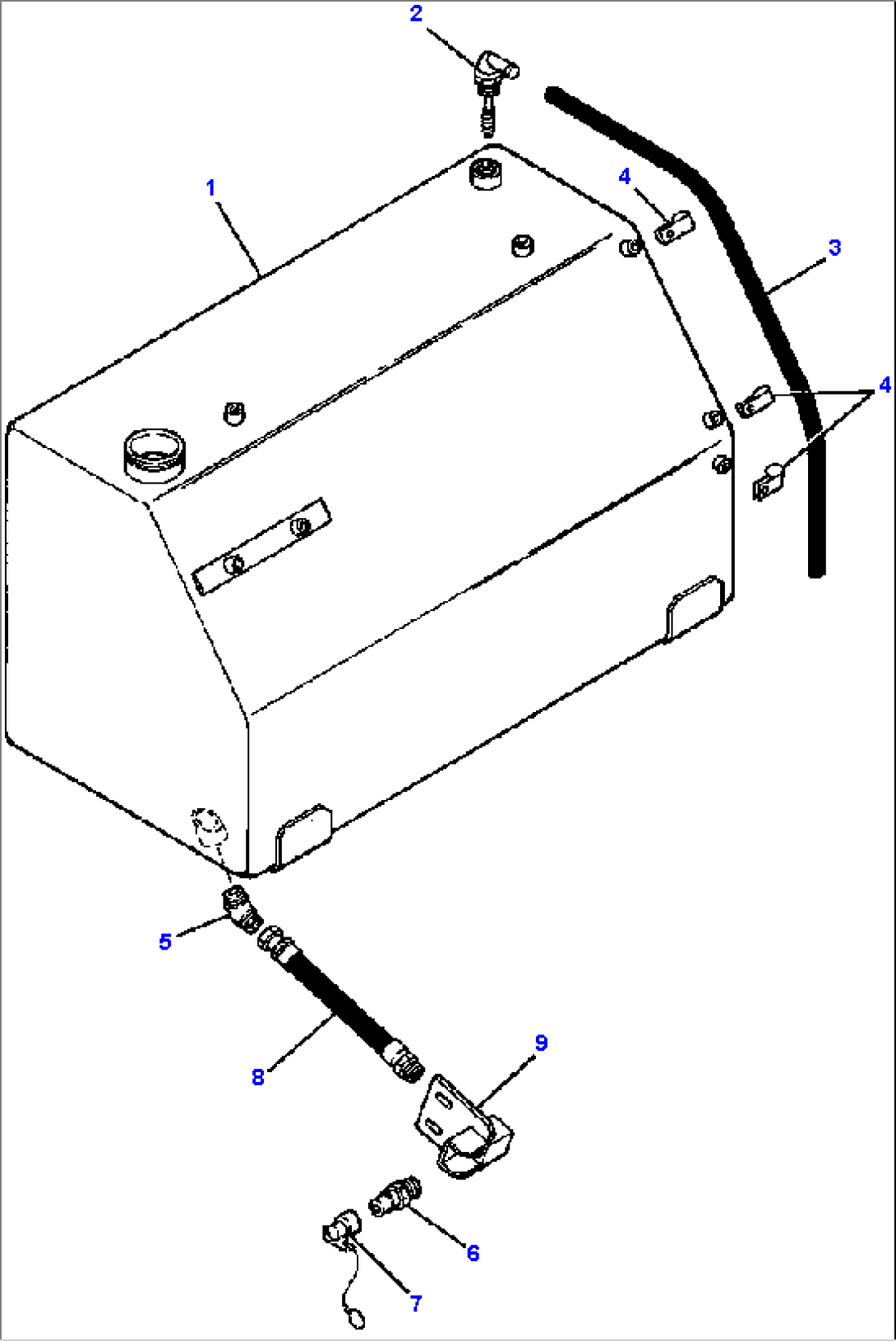

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TANK, FUEL (SEE PG 12-014) | |||
| 2 | 1222 472 H1 | VENT, FUEL TANK | ||
| 3 | 1221 523 H1 | HOSE, VENT | ||
| 4 | 309 929 R1 | CLIP, HOSE | ||
| 30 223 R1 | BOLT, MOUNTING - M10x20 | |||
| 30 327 R1 | WASHER, FLAT - M10 | |||
| 5 | 1221 521 H1 | ELBOW, 45° | ||
| 6 | 1222 471 H1 | NIPPLE, FILLER | ||
| 7 | 1222 470 H1 | CAP, FILLER | ||
| 8 | 1221 522 H1 | HOSE, FAST FILL | ||
| 9 | 1221 516 H91 | RECEIVER, FAST FILL | ||
| 30 091 R1 | BOLT, MOUNTING - M20x60 | |||
| 30 187 R1 | WASHER, FLAT - M20 |
