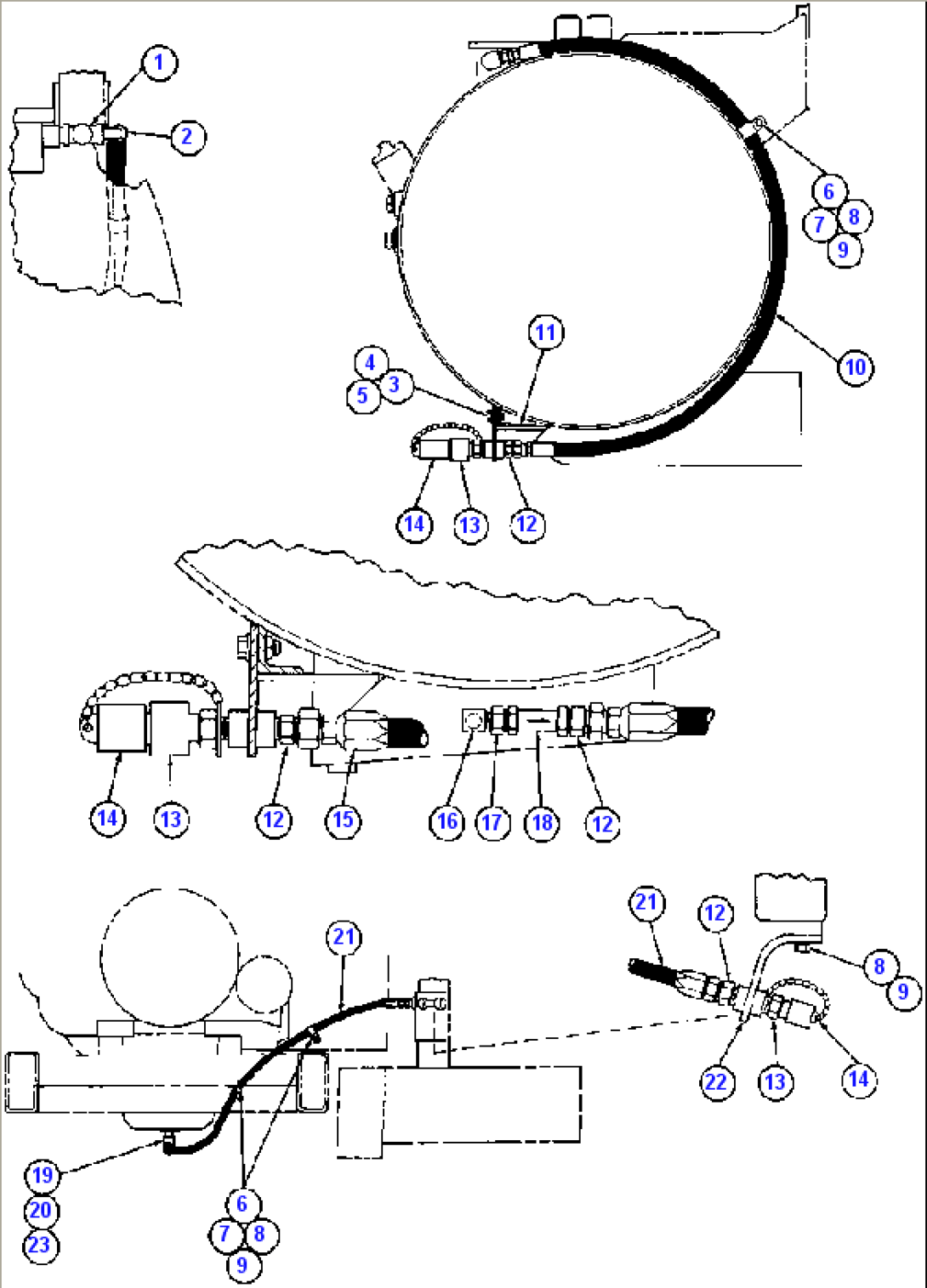

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | SD5179 | FITTING, PIPE | ||
| 2 | WA2919 | ELBOW | ||
| 3 | TY7867 | BRACKET | ||
| 4 | TG5720 | CAPSCREW - 3/8" - 16NC X 1" | ||
| 5 | TC1231 | LOCKWASHER - 3/8" | ||
| 6 | TR9441 | CLAMP | ||
| 7 | TR6643 | NUT - 1/2" - 13NC | ||
| 8 | TR5445 | LOCKWASHER - 1/2" | ||
| 9 | VC1387 | CAPSCREW - 1/2" - 13NC X 1" | ||
| 10 | DA2955 | HOSE | ||
| 11 | TN1956 | ANGLE | ||
| 12 | TD9722 | ADAPTOR | ||
| 13 | PB0911 | RECEIVER ASSEMBLY | ||
| 14 | PB0912 | CAP ASSEMBLY | ||
| 15 | HA0628 | HOSE | ||
| 16 | WA2226 | TUBE, FITTING | ||
| 17 | SF4094 | BUSHING, PIPE | ||
| 18 | VW7785 | VALVE, RELIEF | ||
| 19 | TA4405 | HOSE | ||
| 20 | TD9749 | ADAPTOR - 90 DEG | ||
| 21 | HA0317 | HOSE | ||
| 22 | TY6557 | BRACKET | ||
| 23 | VD4675 | TEE (BOTTOM OF OIL PAN, CONNECTING #19 & 21) |
