| Item | Part No. | Part Name | Qty | Serial No. |
| \0 | (42N-01-11100) | ENGINE, ASSY. | ||
| 1 | EA2830266 | PUMP, ASSY. | ||
| 2 | EA4890964 | UNION | ||
| 3 | EA4894721 | GASKET | ||
| 4 | EA4899079 | BOLT | ||
| 5 | EA2830156 | GASKET | ||
| SEE FIG. 0201 |
Поиск по каталогу

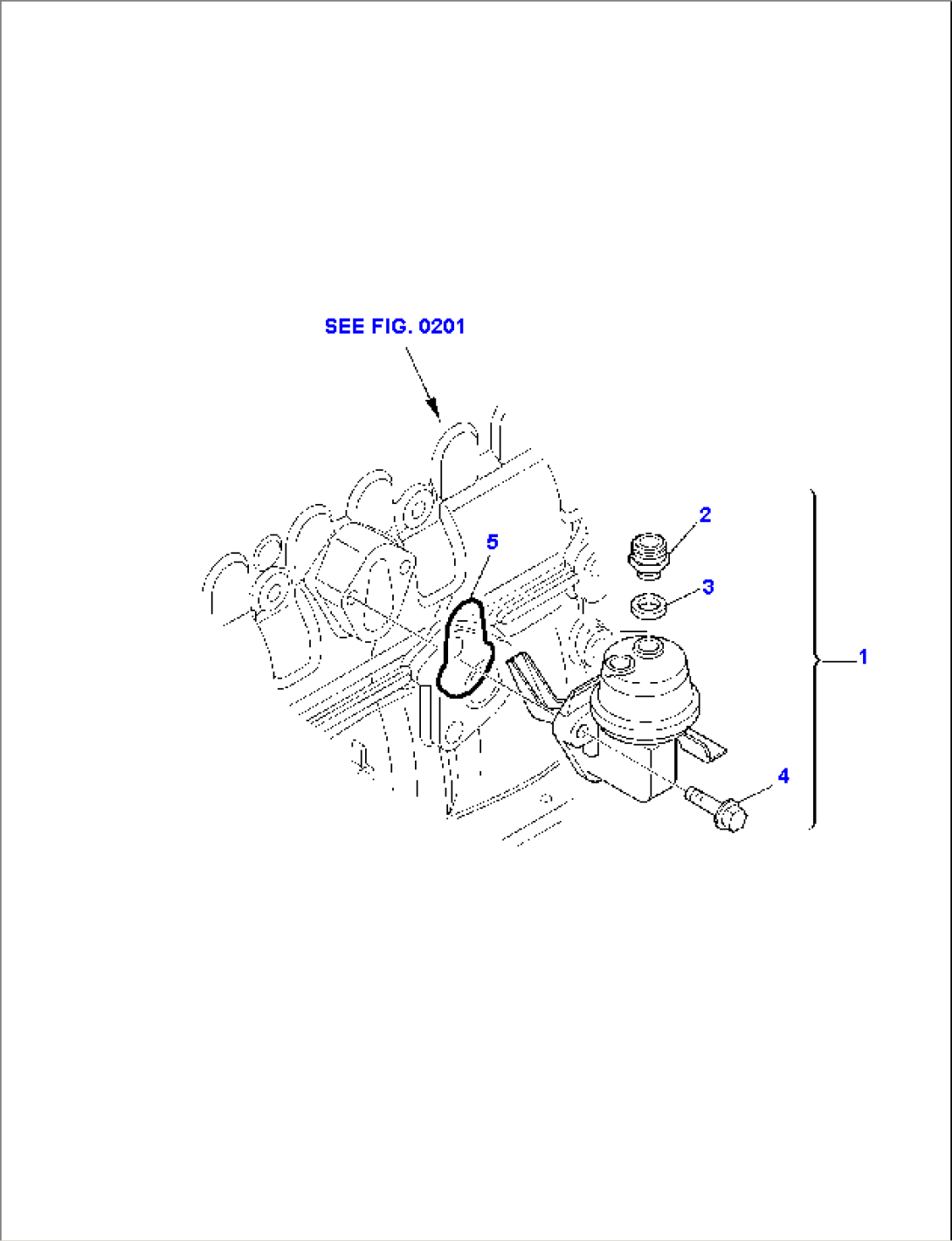

FEED PUMP
| Item | Part No. | Part Name | Qty | Serial No. |
| \0 | (42N-01-11100) | ENGINE, ASSY. | ||
| 1 | EA2830266 | PUMP, ASSY. | ||
| 2 | EA4890964 | UNION | ||
| 3 | EA4894721 | GASKET | ||
| 4 | EA4899079 | BOLT | ||
| 5 | EA2830156 | GASKET | ||
| SEE FIG. 0201 |
