| Item | Part No. | Part Name | Qty | Serial No. |

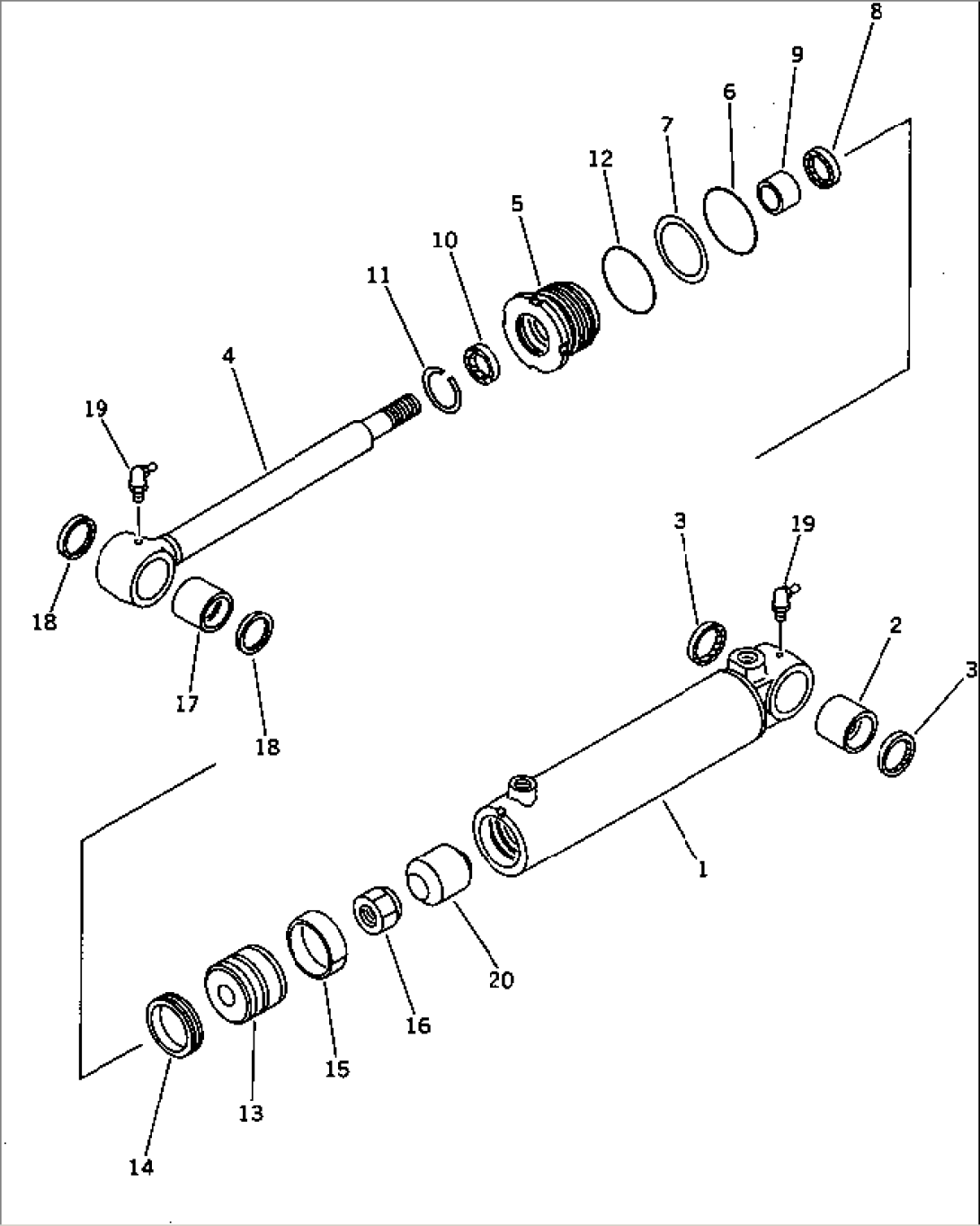

| 262-97-55490 | CYLINDER ASS'Y,FEEDER 3RD FOLD | 10026- | ||
| 23A-63-52102 | CYLINDER ASS'Y | 10026- | ||
| 1 | 23A-63-52141 | CYLINDER | 10026- | |
| 2 | 07144-10404 | BUSHING | 10026- | |
| 3 | 07145-00040 | SEAL,DUST (K7) | 10026- | |
| 4 | 23A-63-52121 | ROD,PISTON | 10026- | |
| 5 | 707-29-70920 | HEAD,CYLINDER | 10026- | |
| 6 | 07000-12065 | O-RING (K7) | 10026- | |
| 7 | 07001-02065 | RING,BACK-UP (K7) | 10026- | |
| 8 | 707-51-35210 | PACKING,ROD (K7) | 10026- | |
| 9 | 07177-03525 | BUSHING | 10026- | |
| 10 | 175-63-75190 | SEAL,DUST (K7) | 10026- | |
| 11 | 07179-12047 | RING,SNAP | 10026- | |
| 12 | 07000-02070 | O-RING (K7) | 10026- | |
| 13 | 707-36-70912 | PISTON | 10026- | |
| 14 | 707-44-70070 | RING,PISTON (K7) | 10026- | |
| 15 | 07155-00720 | RING,WEAR (K7) | 10026- | |
| 16 | 07165-12426 | NUT | 10026- | |
| 17 | 707-76-45120 | BUSHING | 10026- | |
| 18 | 07145-00045 | SEAL,DUST (K7) | 10026- | |
| 19 | 07020-00675 | FITTING,GREASE | 10026- | |
| 20 | 262-97-55650 | SPACER | 10026- |
