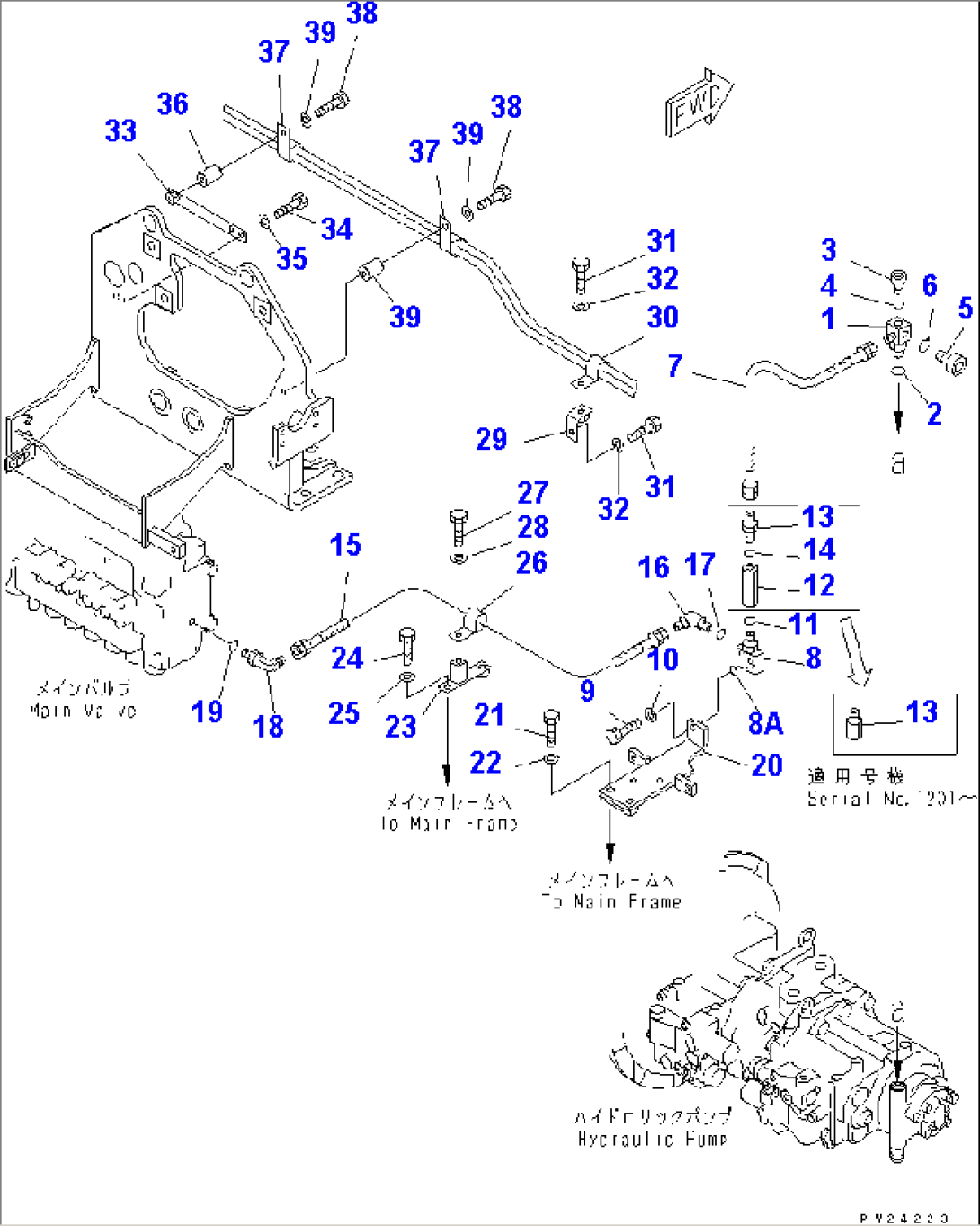

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-62-22341 | TEE | 1002- | |
| 2 | 07002-02434 | O-RING | 1002- | |
| 3 | 07040-12012 | PLUG | 1002- | |
| 4 | 07002-02034 | O-RING | 1002- | |
| 5 | 07040-11007 | PLUG | 1002- | |
| 6 | 07002-01023 | O-RING | 1002- | |
| 7 | 07102-20305 | HOSE | 1002- | |
| 8 | 20Y-62-15910 | TEE | 1002- | |
| 8A | 07002-12034 | O-RING | 1002- | |
| 9 | 01010-81230 | BOLT | 1002- | |
| 10 | 01643-31232 | WASHER | 1002- | |
| 11 | 07002-12034 | O-RING | 1002- | |
| 12 | 8248-62-1910 | JOINT | 1201- | |
| 12 | 205-60-64300 | CHECK VALVE ASS'Y | 1002-1200 | |
| 13 | 07230-10315 | UNION | 1002-1200 | |
| 14 | 07002-12034 | O-RING | 1002-1200 | |
| 15 | 07102-20318 | HOSE | 1002- | |
| 16 | 207-62-33920 | ELBOW | 1002- | |
| 17 | 07002-11423 | O-RING | 1002- | |
| 18 | 20T-62-61620 | ELBOW | 1002- | |
| 19 | 07002-11423 | O-RING | 1002- | |
| 20 | 207-62-62531 | BRACKET | 1002- | |
| 21 | 01010-81250 | BOLT | 1002- | |
| 22 | 01643-31232 | WASHER | 1002- | |
| 23 | 207-62-62551 | BRACKET | 1002- | |
| 24 | 01010-81230 | BOLT | 1002- | |
| 25 | 01643-31232 | WASHER | 1002- | |
| 26 | 208-06-19170 | CLIP | 1002- | |
| 27 | 01010-81225 | BOLT | 1002- | |
| 28 | 01643-31232 | WASHER | 1002- | |
| 29 | 17M-49-15260 | BRACKET | 1002- | |
| 30 | 208-06-19170 | CLIP | 1002- | |
| 31 | 01010-81225 | BOLT | 1002- | |
| 32 | 01643-31232 | WASHER | 1002- | |
| 33 | 207-62-62560 | PLATE | 1002- | |
| 34 | 01010-51225 | BOLT | 1002- | |
| 35 | 01643-31232 | WASHER | 1002- | |
| 36 | 205-03-71331 | COLLAR | 1002- | |
| 37 | 113-899-7950 | CLIP | 1002- | |
| 38 | 01010-51265 | BOLT | 1002- | |
| 39 | 01643-31232 | WASHER | 1002- |
