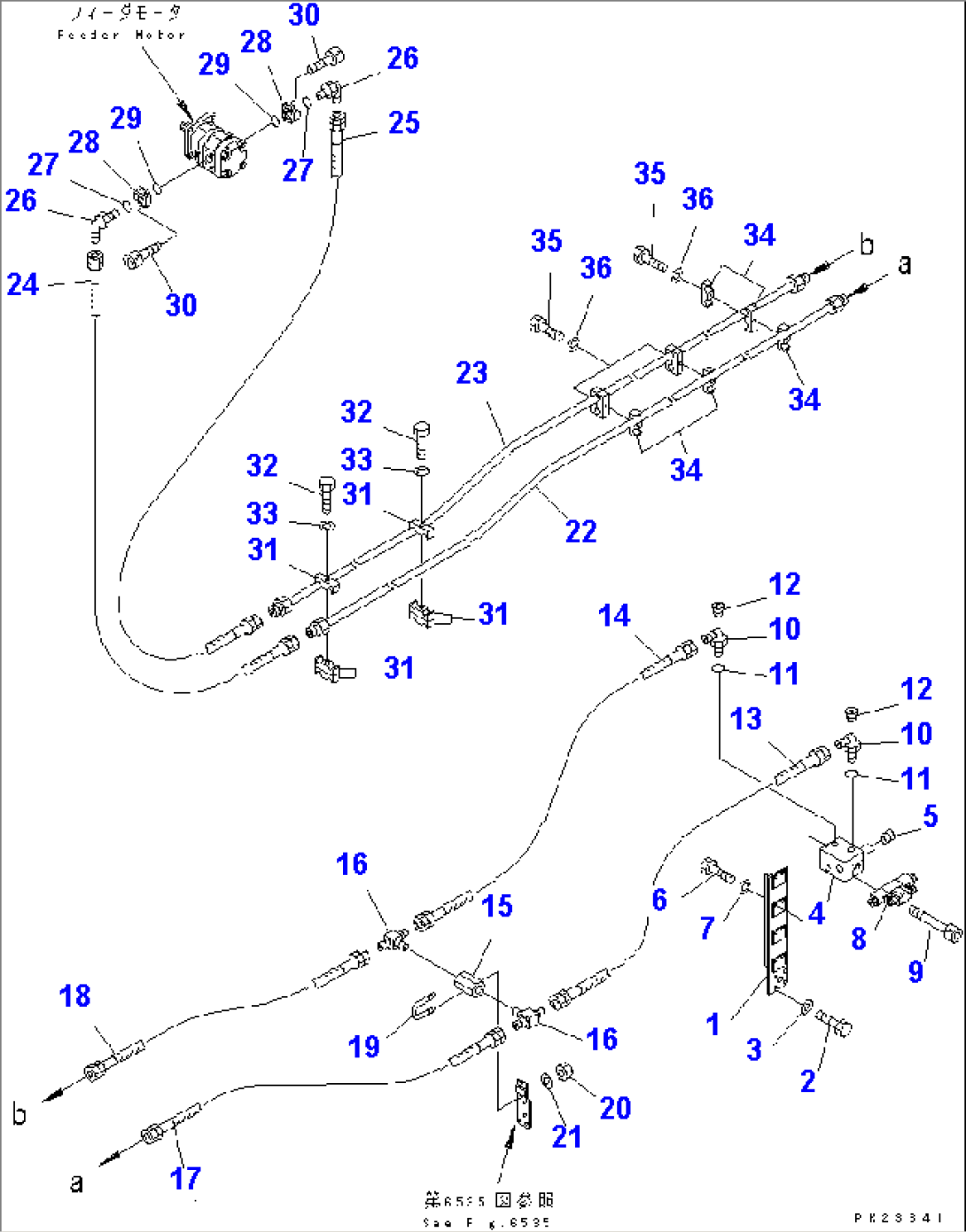

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8242-62-1420 | BRACKET | 1002- | |
| 2 | 01010-51230 | BOLT | 1002- | |
| 3 | 01643-31232 | WASHER | 1002- | |
| 4 | 8242-62-1340 | BLOCK | 1002- | |
| 5 | 07043-70211 | PLUG | 1002- | |
| 6 | 01010-51030 | BOLT | 1002- | |
| 7 | 01643-31032 | WASHER | 1002- | |
| 8 | 8242-60-1141 | VALVE ASS'Y | 1002- | |
| 9 | 01252-30550 | BOLT | 1002- | |
| 10 | 07235-50315 | ELBOW | 1002- | |
| 11 | 07002-02034 | O-RING | 1002- | |
| 12 | 07043-70108 | PLUG | 1002- | |
| 13 | 07108-20606 | HOSE | 1002- | |
| 14 | 07108-20608 | HOSE | 1002- | |
| 15 | 568-95-11150 | VALVE | 1002- | |
| 16 | 8242-62-1350 | TEE | 1002- | |
| 17 | 07108-20615 | HOSE | 1002- | |
| 18 | 07108-20615 | HOSE | 1002- | |
| 19 | 07283-24957 | CLIP | 1002- | |
| 20 | 01599-01011 | NUT | 1002- | |
| 21 | 01643-31032 | WASHER | 1002- | |
| 22 | 8242-62-1390 | TUBE | 1002- | |
| 23 | 8242-62-1380 | TUBE | 1002- | |
| 24 | 07108-20612 | HOSE | 1002- | |
| 25 | 07108-20610 | HOSE | 1002- | |
| 26 | 07235-10628 | ELBOW | 1002- | |
| 27 | 07002-02434 | O-RING | 1002- | |
| 28 | 8242-62-1410 | FLANGE | 1002- | |
| 29 | 07000-03038 | O-RING | 1002- | |
| 30 | 01252-31025 | BOLT | 1002- | |
| 31 | 202-62-13140 | CLAMP | 1002- | |
| 32 | 01011-51235 | BOLT | 1002- | |
| 33 | 01643-31232 | WASHER | 1002- | |
| 34 | 202-62-13140 | CLAMP | 1002- | |
| 35 | 01011-51225 | BOLT | 1002- | |
| 36 | 01643-31232 | WASHER | 1002- |
