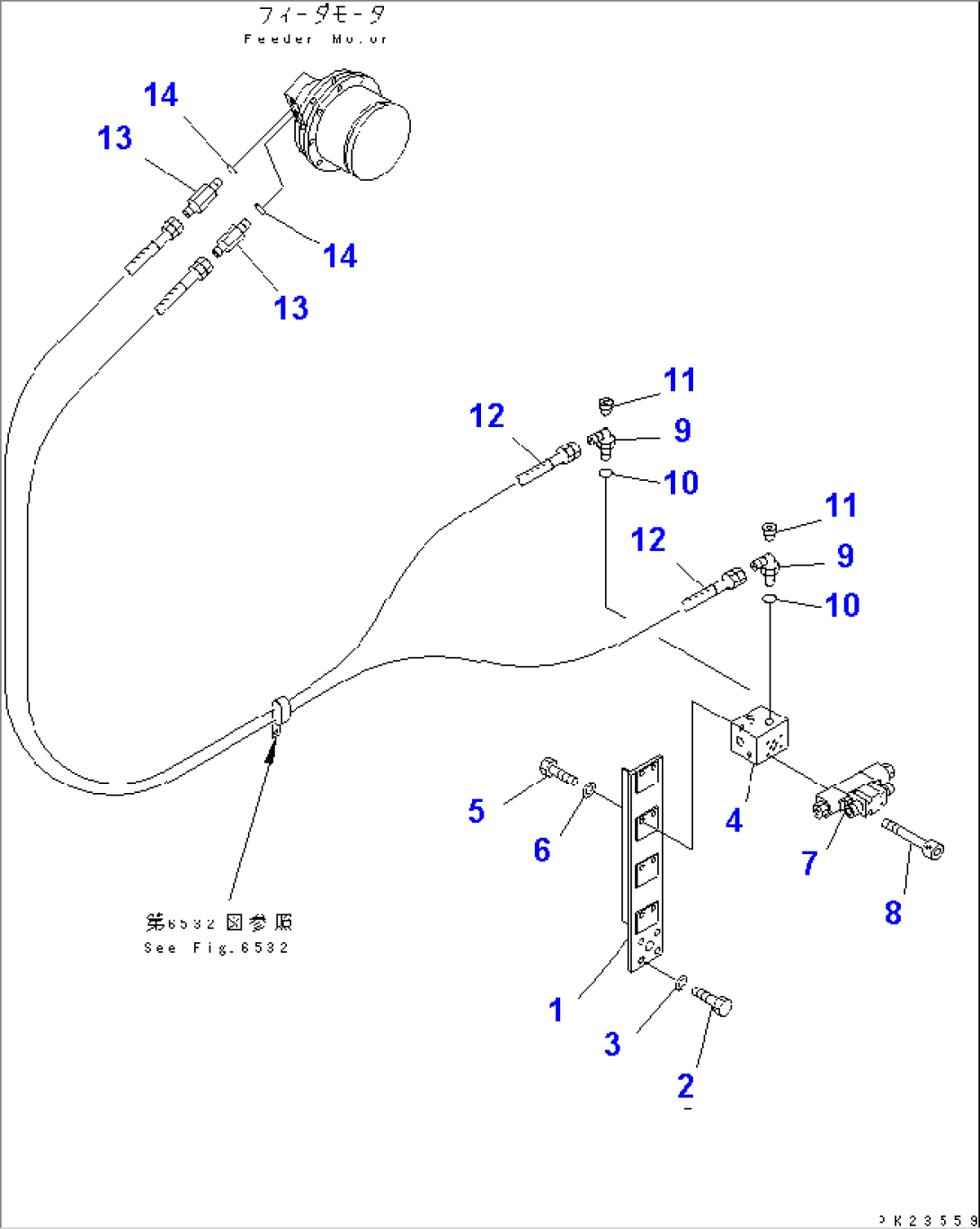

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8233-62-1162 | BRACKET | 1002- | |
| 2 | 01010-51230 | BOLT | 1002- | |
| 3 | 01643-31232 | WASHER | 1002- | |
| 4 | 8221-60-1131 | BLOCK | 1002- | |
| 5 | 01010-51030 | BOLT | 1002- | |
| 6 | 01643-31032 | WASHER | 1002- | |
| 7 | 8221-60-1150 | VALVE | 1002- | |
| 8 | 01252-30550 | BOLT | 1002- | |
| 9 | 07235-50315 | ELBOW | 1002- | |
| 10 | 07002-02034 | O-RING | 1002- | |
| 11 | 07043-70108 | PLUG | 1002- | |
| 12 | 07108-20315 | HOSE | 1002- | |
| 13 | 21U-62-12420 | NIPPLE | 1002- | |
| 14 | 07000-12014 | O-RING | 1002- |
