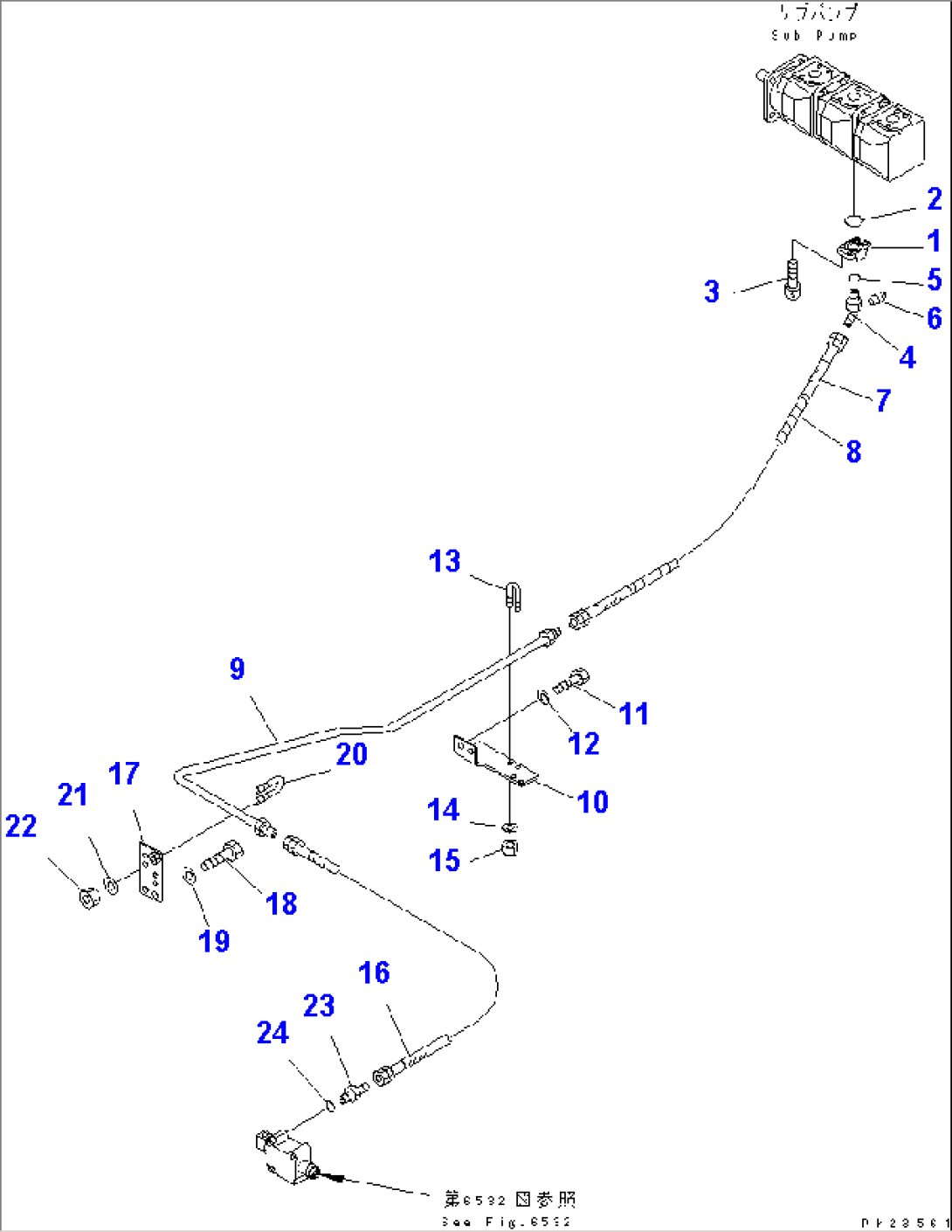

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8221-62-1470 | FLANGE | 1002- | |
| 2 | 07000-03032 | O-RING | 1002- | |
| 3 | 01252-31025 | BOLT | 1002- | |
| 4 | 07236-50315 | ELBOW | 1002- | |
| 5 | 07002-02034 | O-RING | 1002- | |
| 6 | 07042-70108 | PLUG | 1002- | |
| 7 | 07108-20308 | HOSE | 1002- | |
| 8 | 281-04-15540 | TUBE | 1002- | |
| 9 | 8221-62-1160 | TUBE | 1002- | |
| 10 | 8221-62-1230 | BRACKET | 1002- | |
| 11 | 01010-51225 | BOLT | 1002- | |
| 12 | 01643-31232 | WASHER | 1002- | |
| 13 | 07283-21529 | CLIP | 1002- | |
| 14 | 01643-30823 | WASHER | 1002- | |
| 15 | 01598-00809 | NUT | 1002- | |
| 16 | 07108-20307 | HOSE | 1002- | |
| 17 | 8221-62-1290 | PLATE | 1002- | |
| 18 | 01010-51225 | BOLT | 1002- | |
| 19 | 01643-31232 | WASHER | 1002- | |
| 20 | 07283-22738 | CLIP | 1002- | |
| 21 | 01643-31032 | WASHER | 1002- | |
| 22 | 01599-01011 | NUT | 1002- | |
| 23 | 20Y-62-16460 | NIPPLE | 1002- | |
| 24 | 07002-02034 | O-RING | 1002- |
