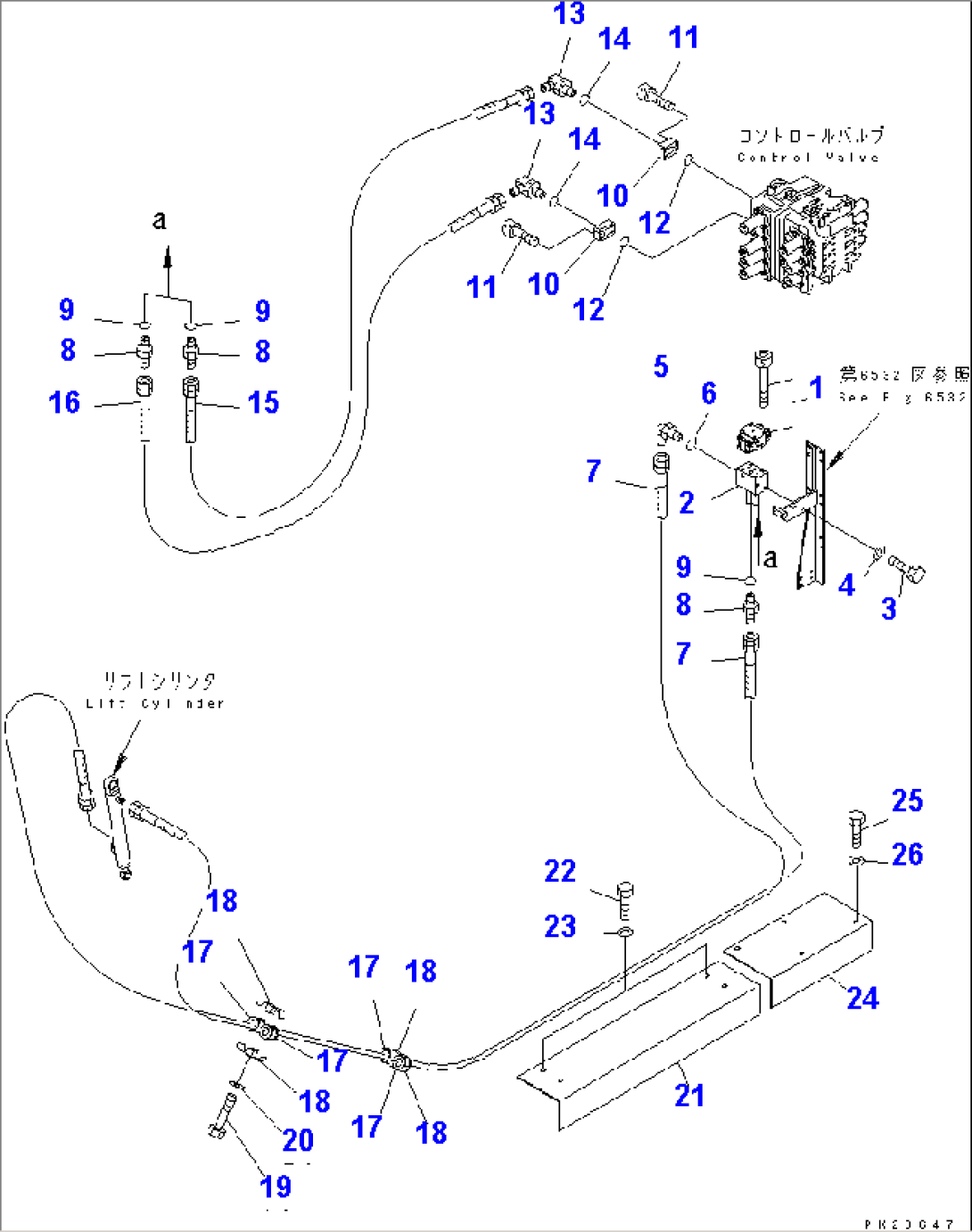

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8232-60-1120 | VALVE ASS'Y | 1002- | |
| 2 | 8232-62-1140 | BLOCK | 1002- | |
| 3 | 01010-51025 | BOLT | 1002- | |
| 4 | 01643-31032 | WASHER | 1002- | |
| 5 | 07235-10210 | ELBOW | 1002- | |
| 6 | 07002-01423 | O-RING | 1002- | |
| 7 | 07108-20261 | HOSE | 1002- | |
| 8 | 07230-20210 | UNION | 1002- | |
| 9 | 07002-01423 | O-RING | 1002- | |
| 10 | 8232-62-1110 | BLOCK | 1002- | |
| 11 | 01252-31025 | BOLT | 1002- | |
| 12 | 07000-13025 | O-RING | 1002- | |
| 13 | 20N-63-66190 | ELBOW | 1002- | |
| 14 | 07002-02034 | O-RING | 1002- | |
| 15 | 07108-20224 | HOSE | 1002- | |
| 16 | 07108-20223 | HOSE | 1002- | |
| 17 | 07095-00317 | CUSHION | 1002- | |
| 18 | 07094-00315 | CLAMP | 1002- | |
| 19 | 01010-51265 | BOLT | 1002- | |
| 20 | 01643-31232 | WASHER | 1002- | |
| 21 | 8242-62-1430 | COVER | 1002- | |
| 22 | 01010-51220 | BOLT | 1002- | |
| 23 | 01643-31232 | WASHER | 1002- | |
| 24 | 8242-62-1440 | COVER | 1002- | |
| 25 | 01010-51220 | BOLT | 1002- | |
| 26 | 01643-31232 | WASHER | 1002- |
