| Item | Part No. | Part Name | Qty | Serial No. |

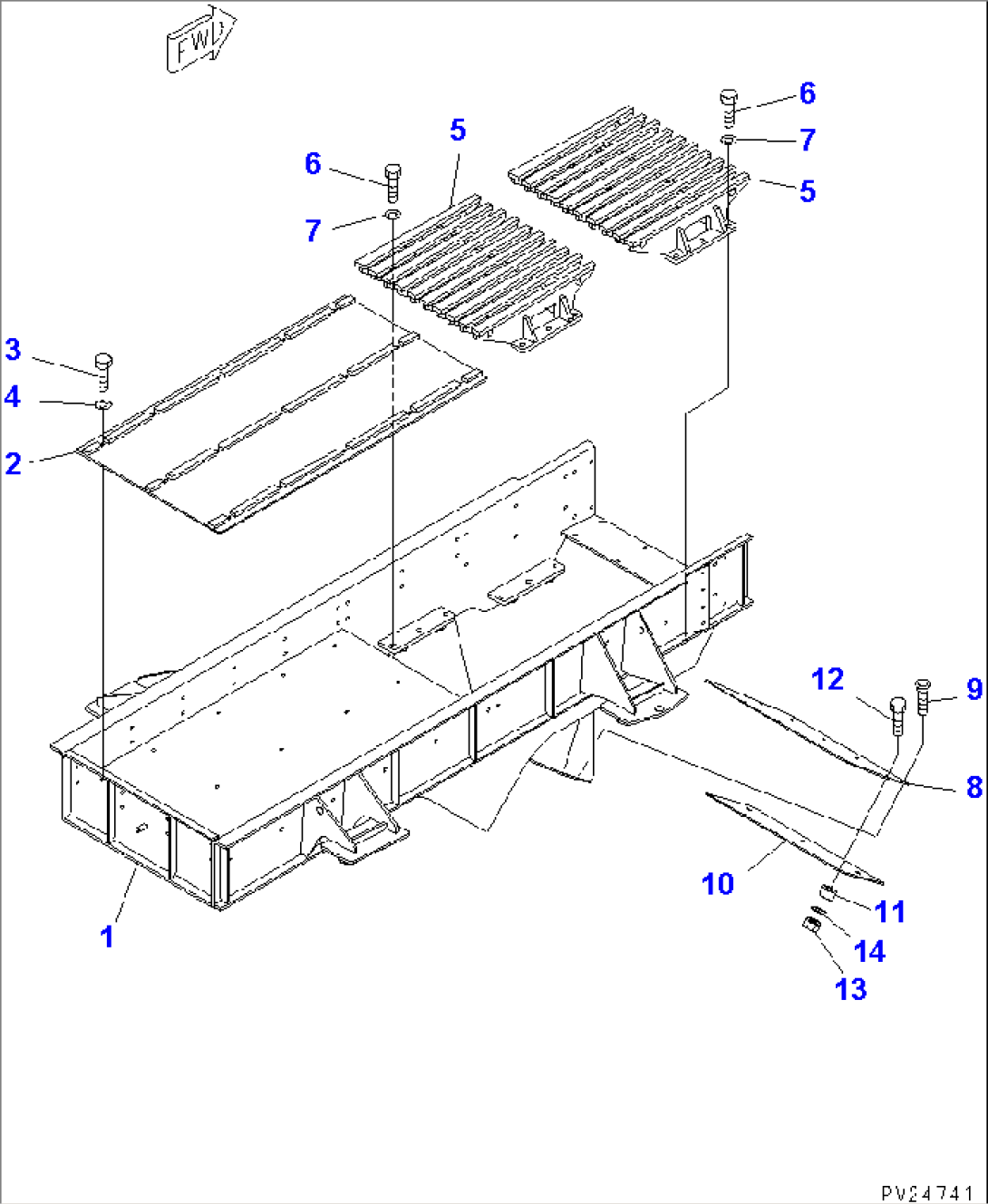

| 8233-72-3101 | FEEDER ASS'Y | 1005- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.7211 TO 7213. | ||||
| 1 | 8233-72-3114 | FRAME | .- | |
| \0\8233-72-3113 | FRAME | 1088-. | ||
| 8233-72-3112 | FRAME | 1011-1087 | ||
| 8233-72-3111 | FRAME | 1005-1010 | ||
| 2 | 8233-72-3160 | PLATE | 1005-1087 | |
| 3 | 01010-51235 | BOLT | 1005-1087 | |
| 4 | 01643-31232 | WASHER | 1005-1087 | |
| 5 | 8233-72-3170 | SCREEN | 1005- | |
| 6 | 01010-51655 | BOLT | 1005- | |
| 7 | 01643-31645 | WASHER | 1005- | |
| 8 | 8233-72-3632 | PLATE | 1025- | |
| 8233-72-3631 | PLATE | 1011-1024 | ||
| 8233-72-3630 | PLATE | 1005-1010 | ||
| 9 | 01240-01220 | SCREW | 1005- | |
| 10 | 8242-72-2130 | PLATE | 1025- | |
| 11 | 8242-72-2140 | COLLAR | 1025- | |
| 12 | 01010-81225 | BOLT | 1025-1098 | |
| 13 | 01580-01008 | NUT | 1025- | |
| 14 | 01643-31032 | WASHER | 1025- |
