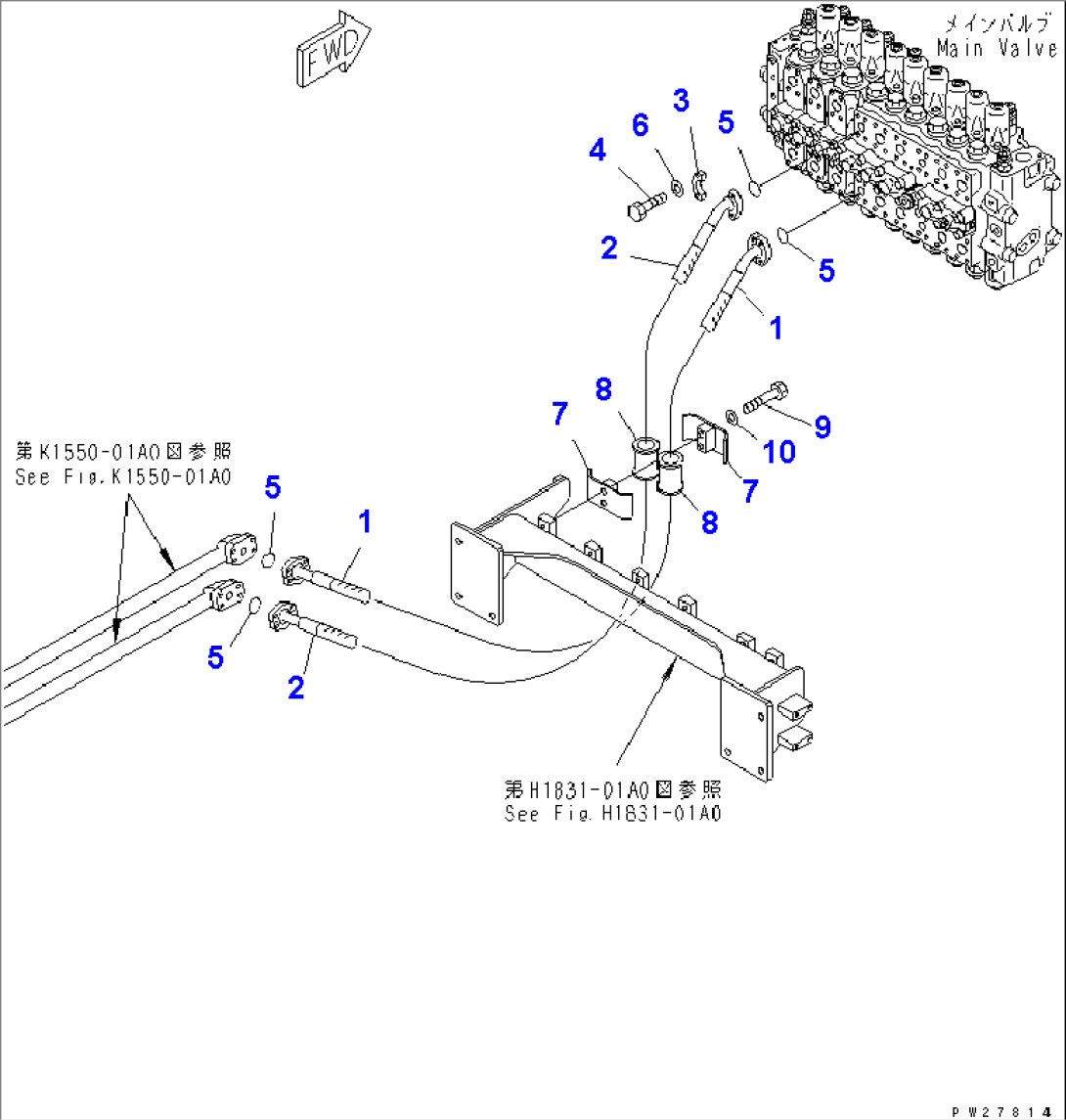

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8295-62-3162 | HOSE | 1007- | |
| 07122-01022 | HOSE | 1007- | ||
| 20Y-62-22820 | BAND¤ BLUE | 1007- | ||
| 20Y-62-22850 | BAND¤ GREEN | 1007- | ||
| 8295-62-3160 | HOSE | 1001-1006 | ||
| 2 | 8295-62-3171 | HOSE | 1007- | |
| 07122-01022 | HOSE | 1007- | ||
| 20Y-62-22790 | BAND¤ RED | 1007- | ||
| 20Y-62-22810 | BAND¤ YELLOW | 1007- | ||
| 8295-62-3170 | HOSE | 1001-1006 | ||
| 3 | 07371-31049 | FLANGE | 1001- | |
| 4 | 07372-21035 | BOLT | 1001- | |
| 5 | 07000-13032 | O-RING | 1001- | |
| 6 | 01643-51032 | WASHER | 1001- | |
| 7 | 07094-31024 | CLAMP | 1001- | |
| 8 | 07095-01035 | CUSHION | 1001- | |
| 9 | 01010-81275 | BOLT | 1001- | |
| 10 | 01643-31232 | WASHER | 1001- |
