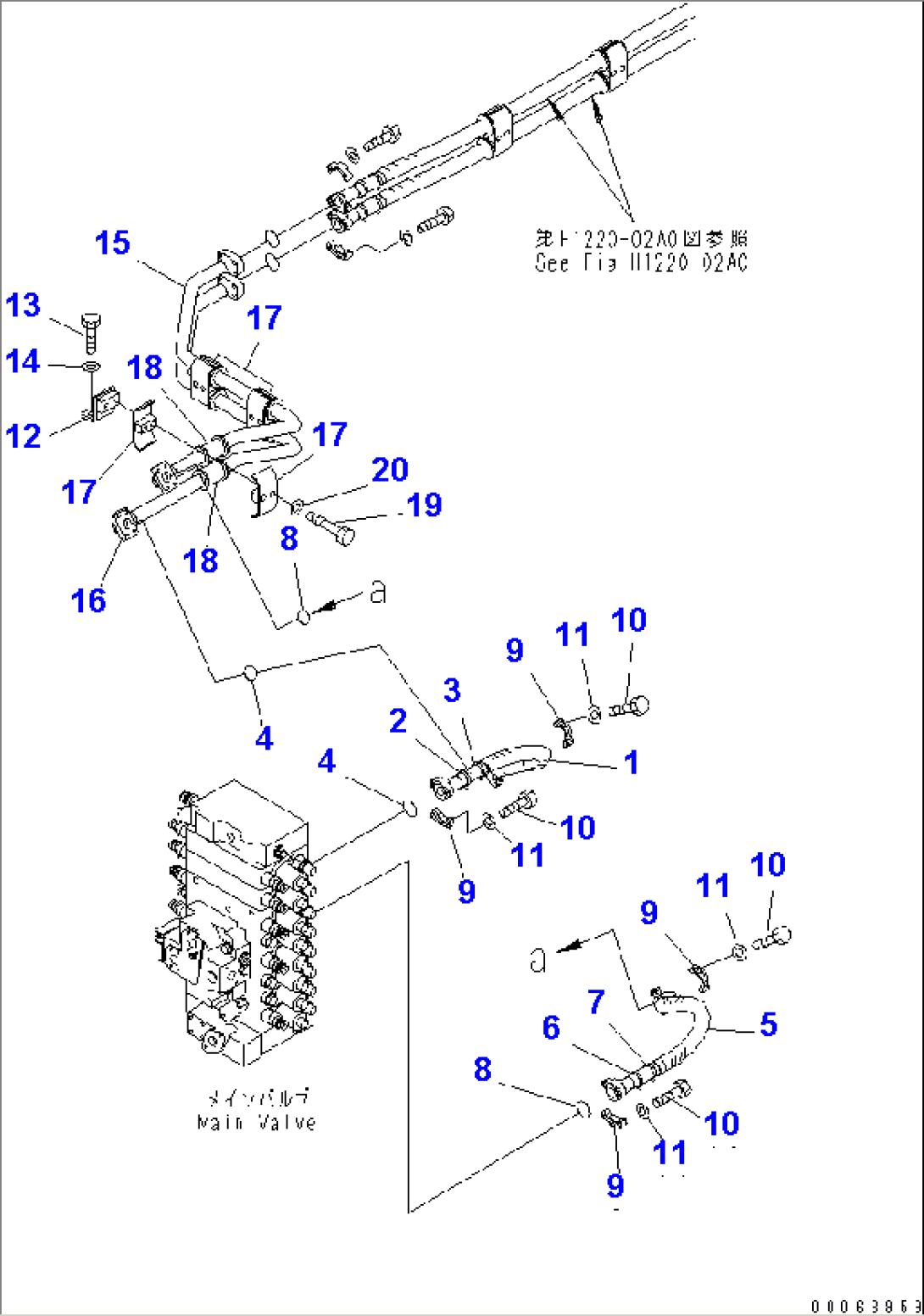

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8234-62-1542 | HOSE | 1002- | |
| 1 | \0\8234-62-1541 | HOSE | 1001-1001 | |
| 2 | 20Y-62-22790 | BAND, RED | 1002- | |
| 2 | 20Y-62-22820 | BAND, BLUE | 1001-1001 | |
| 3 | 20Y-62-22810 | BAND, YELLOW | 1002- | |
| 3 | 20Y-62-22850 | BAND, GREEN | 1001-1001 | |
| 4 | 07000-13032 | O-RING | 1001- | |
| 5 | 8234-62-1553 | HOSE | 1002- | |
| 5 | \0\8234-62-1551 | HOSE | 1001-1001 | |
| 6 | 20Y-62-22820 | BAND, BLUE | 1002- | |
| 6 | 20Y-62-22790 | BAND, RED | 1001-1001 | |
| 7 | 20Y-62-22850 | BAND, GREEN | 1002- | |
| 7 | 20Y-62-22810 | BAND, YELLOW | 1001-1001 | |
| 8 | 07000-13032 | O-RING | 1001- | |
| 9 | 07371-31049 | FLANGE | 1001- | |
| 10 | 07372-21035 | BOLT | 1001- | |
| 11 | 01643-51032 | WASHER | 1001- | |
| 12 | 8234-62-1560 | BRACKET | 1001- | |
| 13 | 01010-81225 | BOLT | 1001- | |
| 14 | 01643-31232 | WASHER | 1001- | |
| 15 | 8234-62-1572 | TUBE | 1002- | |
| 15 | 8234-62-1571 | TUBE | 1001-1001 | |
| 16 | 8234-62-2151 | TUBE | 1001- | |
| 17 | 07094-31024 | CLAMP | 1001- | |
| 18 | 07095-01034 | CUSHION | 1001- | |
| 19 | 01010-81280 | BOLT | 1001- | |
| 20 | 01643-31232 | WASHER | 1001- |
