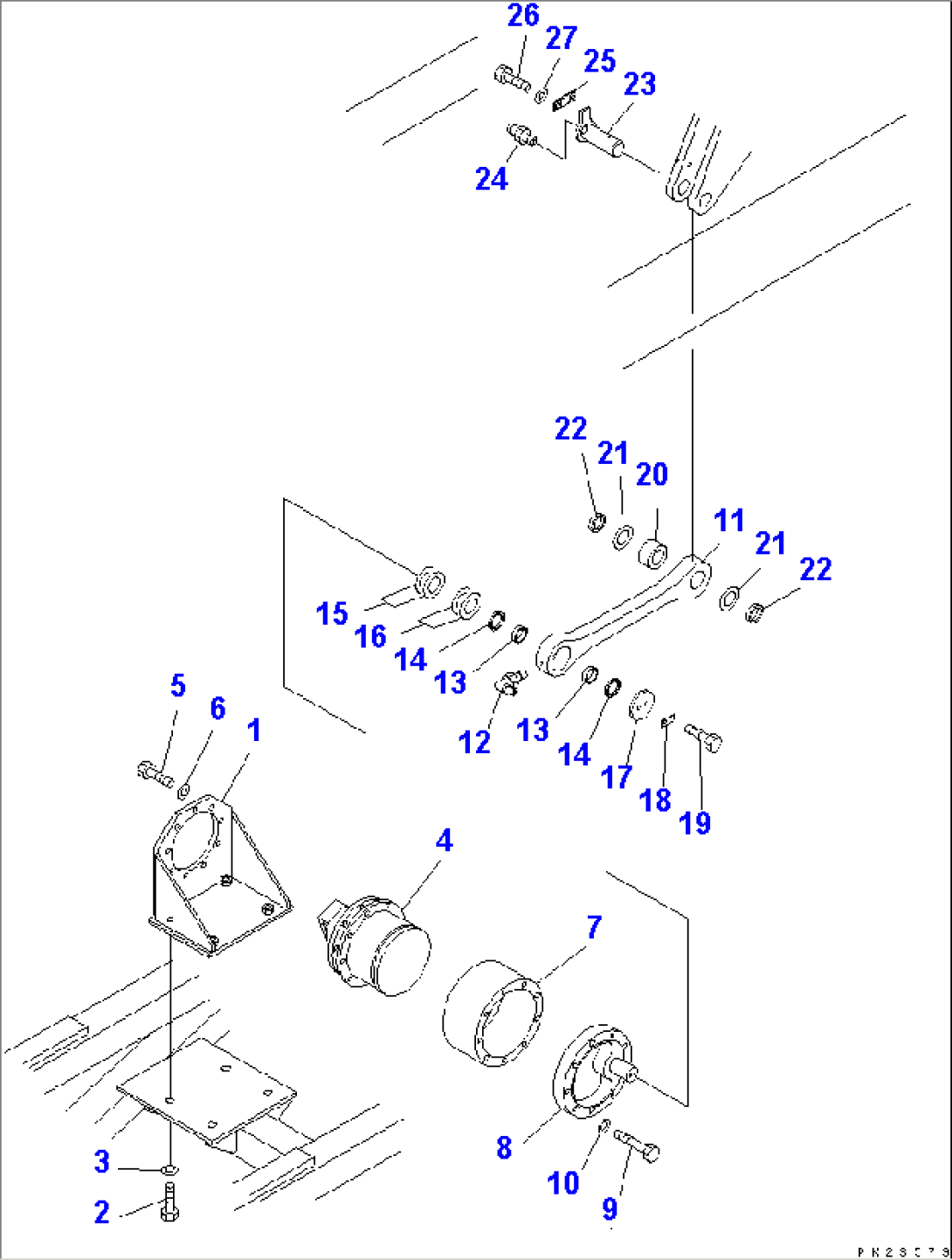

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8232-70-1312 | BRACKET | 1008- | |
| 1 | 8221-70-1310 | BRACKET | 1002-1007 | |
| 2 | 01010-52055 | BOLT | 1002- | |
| 3 | 01643-32060 | WASHER | 1002- | |
| 4 | 8232-60-1131 | MOTOR ASS'Y | 1040- | |
| 4 | \0\20N-60-42200 | MOTOR ASS'Y | 1002-1039 | |
| 5 | 01010-51240 | BOLT | 1002- | |
| 6 | 01643-31232 | WASHER | 1002- | |
| 7 | 8221-70-1250 | SPACER | 1002- | |
| 8 | 8221-70-1241 | JOINT | 1002- | |
| 9 | 01011-51270 | BOLT | 1002- | |
| 10 | 01643-31232 | WASHER | 1002- | |
| 11 | 8221-70-1221 | ROD | 1002- | |
| 12 | 07020-00900 | FITTING,GREASE | 1002- | |
| 13 | 07177-04012 | BUSHING | 1002- | |
| 14 | 07145-00040 | SEAL | 1002- | |
| 15 | 419-46-12280 | SHIM, 1.0MM | 1002- | |
| 16 | 419-46-12290 | SHIM, 0.5MM | 1002- | |
| 17 | 8221-70-1130 | PLATE | 1002- | |
| 18 | 04081-04012 | LOCK | 1002- | |
| 19 | 01010-51025 | BOLT | 1002- | |
| 20 | 502-50-11461 | BUSHING | 1002- | |
| 21 | 04065-06525 | RING | 1002- | |
| 22 | 8221-70-1260 | COLLAR | 1002- | |
| 23 | 8206-75-1061 | PIN | 1002- | |
| 24 | 07020-00000 | FITTING,GREASE | 1002- | |
| 25 | 20M-70-61120 | PLATE | 1002- | |
| 26 | 01010-51020 | BOLT | 1002- | |
| 27 | 01643-31032 | WASHER | 1002- |
