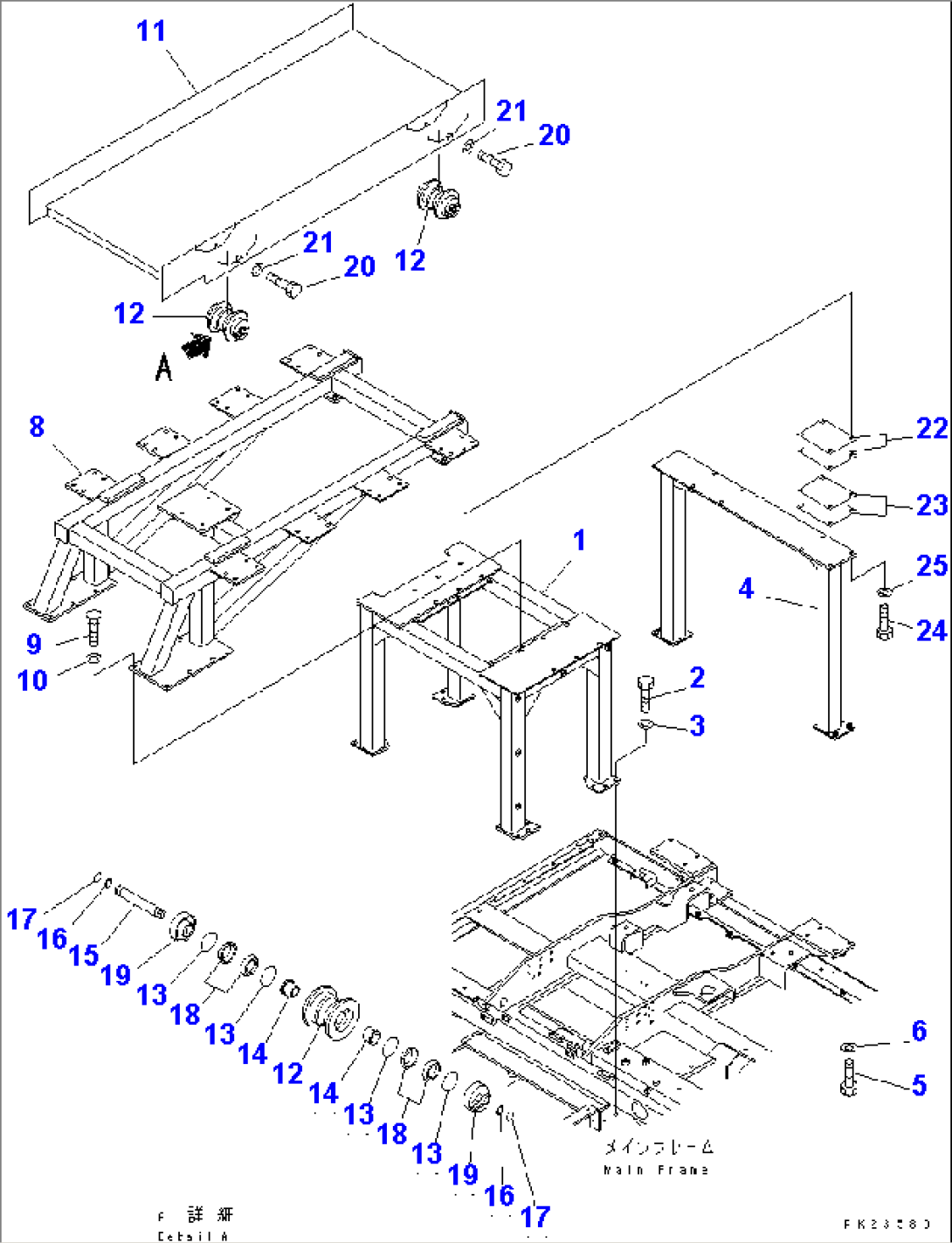

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8233-70-1340 | FRAME | 1002- | |
| 2 | 01010-51645 | BOLT | 1002- | |
| 3 | 01643-31645 | WASHER | 1002- | |
| 4 | 8233-70-1351 | FRAME | 1008- | |
| 4 | 8233-70-1350 | FRAME | 1002-1007 | |
| 5 | 01010-51655 | BOLT | 1002- | |
| 6 | 01643-31645 | WASHER | 1002- | |
| 8 | 8233-70-1332 | FRAME | 1013- | |
| 8 | 8233-70-1331 | FRAME | 1002-1012 | |
| 9 | 01010-51645 | BOLT | 1002- | |
| 10 | 01643-31645 | WASHER | 1002- | |
| 11 | 8233-70-1210 | FRAME | 1001- | |
| 20N-30-00026 | TRACK ROLLER ASS'Y | 1001- | ||
| 12 | 20N-30-41680 | ROLLER | 1001- | |
| 13 | 110-30-13250 | O-RING | 1001- | |
| 14 | 10E-30-14140 | BUSHING | 1001- | |
| 15 | 10E-30-14130 | SHAFT | 1001- | |
| 16 | 20R-30-11270 | RING | 1001- | |
| 17 | 07000-02021 | O-RING | 1001- | |
| 18 | 110-30-14260 | RING | 1001- | |
| 19 | 20N-30-44125 | COLLAR | 1001- | |
| 20 | 01010-51435 | BOLT | 1001- | |
| 21 | 01643-31445 | WASHER | 1001- | |
| 22 | 8233-70-1370 | SHIM, 3.2MM | 1001- | |
| 23 | 8233-70-1380 | SHIM, 1.6MM | 1001- | |
| 24 | 01010-51645 | BOLT | 1001- | |
| 25 | 01643-31645 | WASHER | 1001- |
