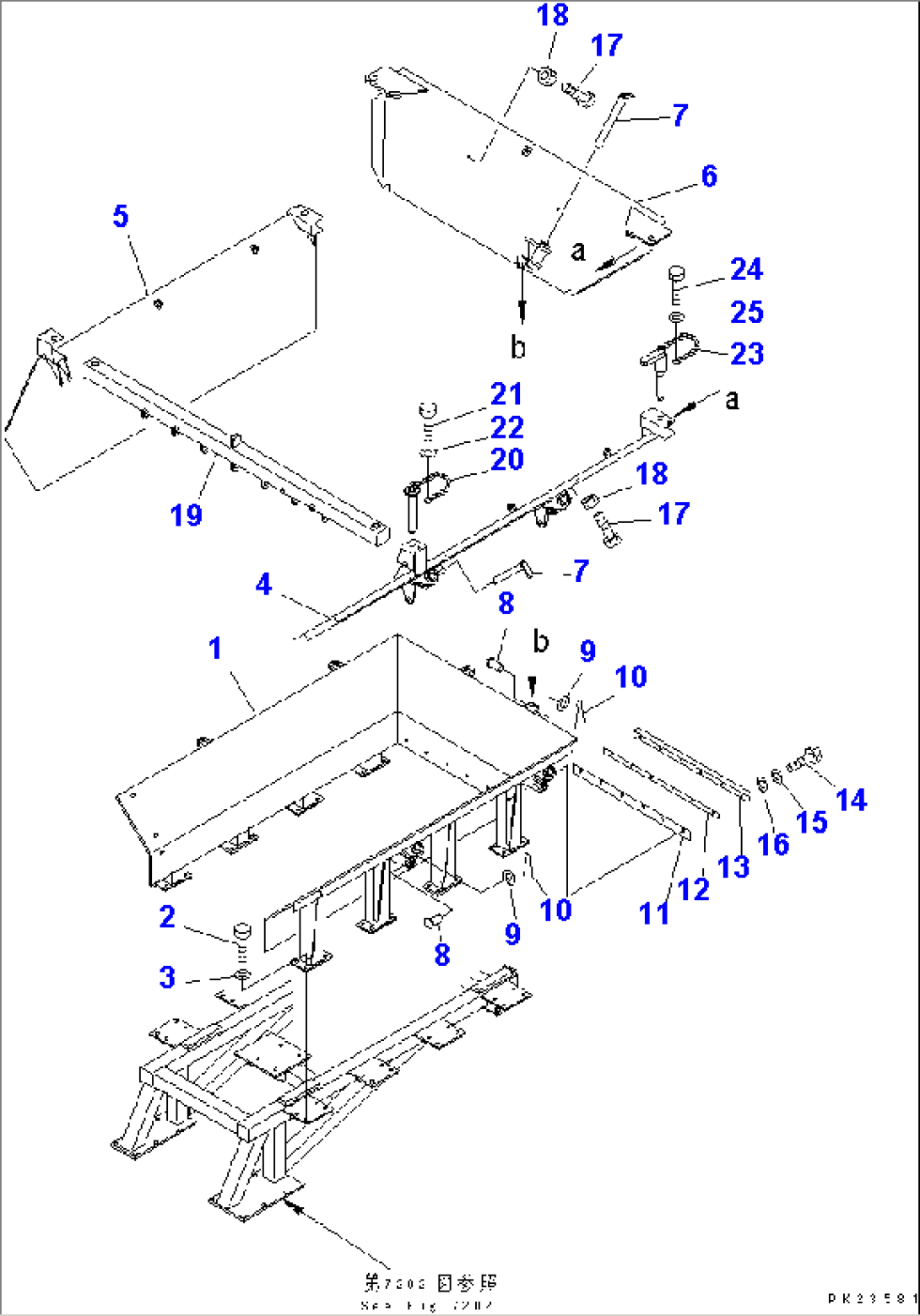

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8233-70-1411 | HOPPER | 1002- | |
| 2 | 01010-51645 | BOLT | 1002- | |
| 3 | 01643-31645 | WASHER | 1002- | |
| 4 | 8233-70-1421 | HOPPER,L.H. | 1002- | |
| 5 | 8233-70-1431 | HOPPER,R.H. | 1002- | |
| 6 | 8233-70-1441 | HOPPER | 1001- | |
| 7 | 8232-70-1250 | PIN | 1001- | |
| 8 | 8233-75-1170 | PIN | 1001- | |
| 9 | 01640-23045 | WASHER | 1001- | |
| 10 | 04050-15040 | PIN | 1001- | |
| 11 | 8233-70-1770 | PLATE | 1002- | |
| 12 | 8233-70-1780 | PLATE | 1002- | |
| 13 | 8233-70-1970 | PLATE | 1002- | |
| 14 | 01010-51035 | BOLT | 1002- | |
| 15 | 01643-31032 | WASHER | 1002- | |
| 16 | 362-846-6770 | COLLAR | 1002- | |
| 17 | 01010-51280 | BOLT | 1001- | |
| 18 | 01580-01210 | NUT | 1001- | |
| 19 | 8233-70-1490 | SUPPORT | 1001- | |
| 20 | 8232-70-1241 | PIN | 1008- | |
| 20 | 8232-70-1240 | PIN | 1001-1007 | |
| 21 | 01010-50612 | BOLT | 1001- | |
| 22 | 01643-30623 | WASHER | 1001- | |
| 23 | 8233-70-1530 | PIN | 1002- | |
| 24 | 01010-50614 | BOLT | 1002- | |
| 25 | 01643-30623 | WASHER | 1002- |
