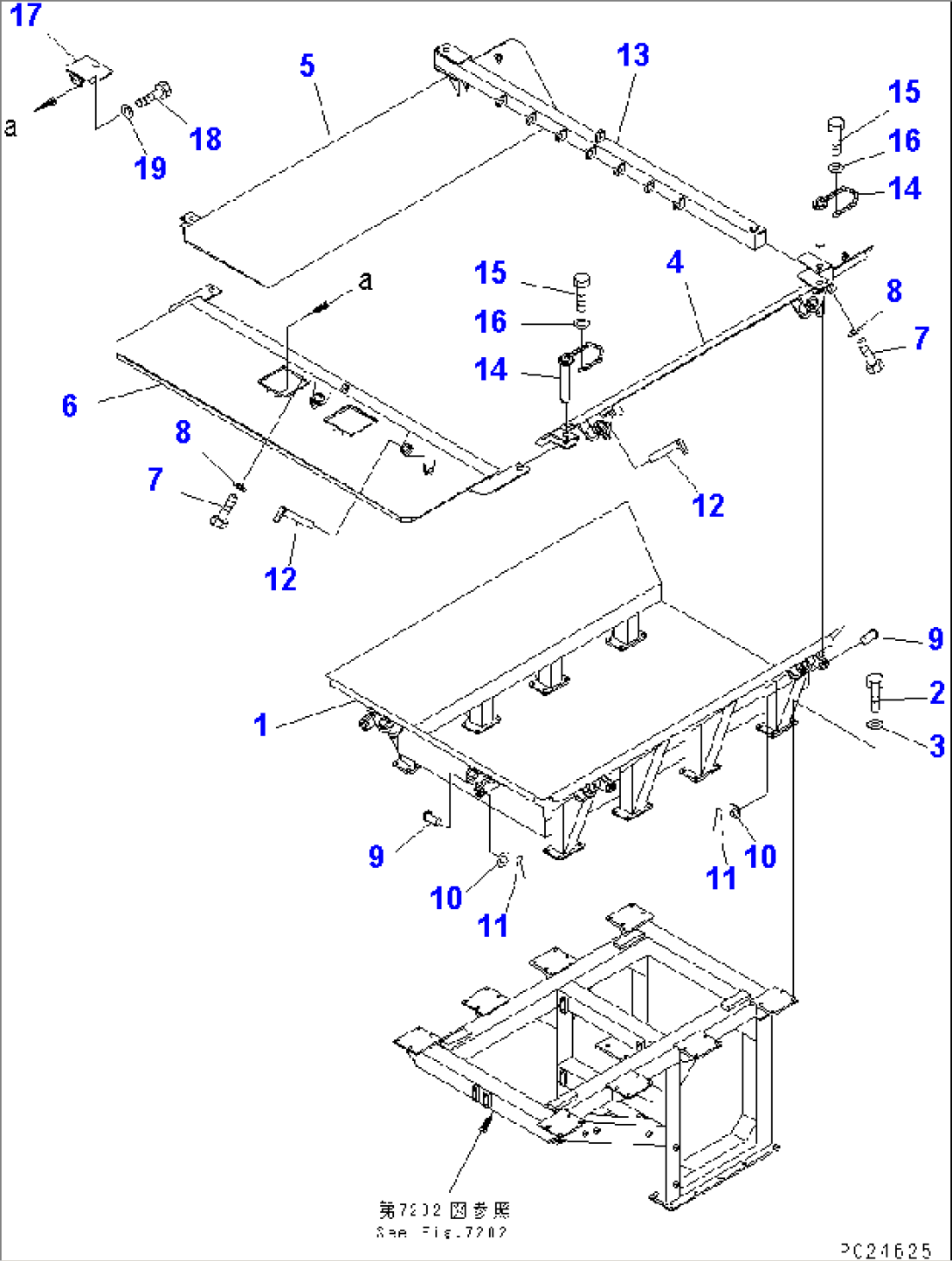

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8232-70-1323 | HOPPER | 1202- | |
| 2 | 01010-51645 | BOLT | 1001- | |
| 3 | 01643-31645 | WASHER | 1001- | |
| 4 | 8232-70-1411 | HOPPER,L.H. | 1202- | |
| 5 | 8232-70-1421 | HOPPER,R.H. | 1202- | |
| 6 | 8232-70-1432 | HOPPER,FRONT | 1202- | |
| 7 | 01010-51280 | BOLT | 1001- | |
| 8 | 01580-11210 | NUT | 1001- | |
| 9 | 8233-75-1170 | PIN | 1001- | |
| 10 | 01640-23045 | WASHER | 1001- | |
| 11 | 04050-15040 | PIN,COTTER | 1001- | |
| 12 | 8232-70-1250 | PIN | 1202- | |
| 13 | 8232-70-1231 | SUPPORT | 1202- | |
| 14 | 8232-70-1242 | CHAIN | 1202- | |
| 15 | 01010-50616 | BOLT | 1001- | |
| 16 | 01643-30623 | WASHER | 1001- | |
| 17 | 8232-70-1260 | COVER | 1001- | |
| 18 | 01010-51230 | BOLT | 1001- | |
| 19 | 01643-31232 | WASHER | 1001- |
