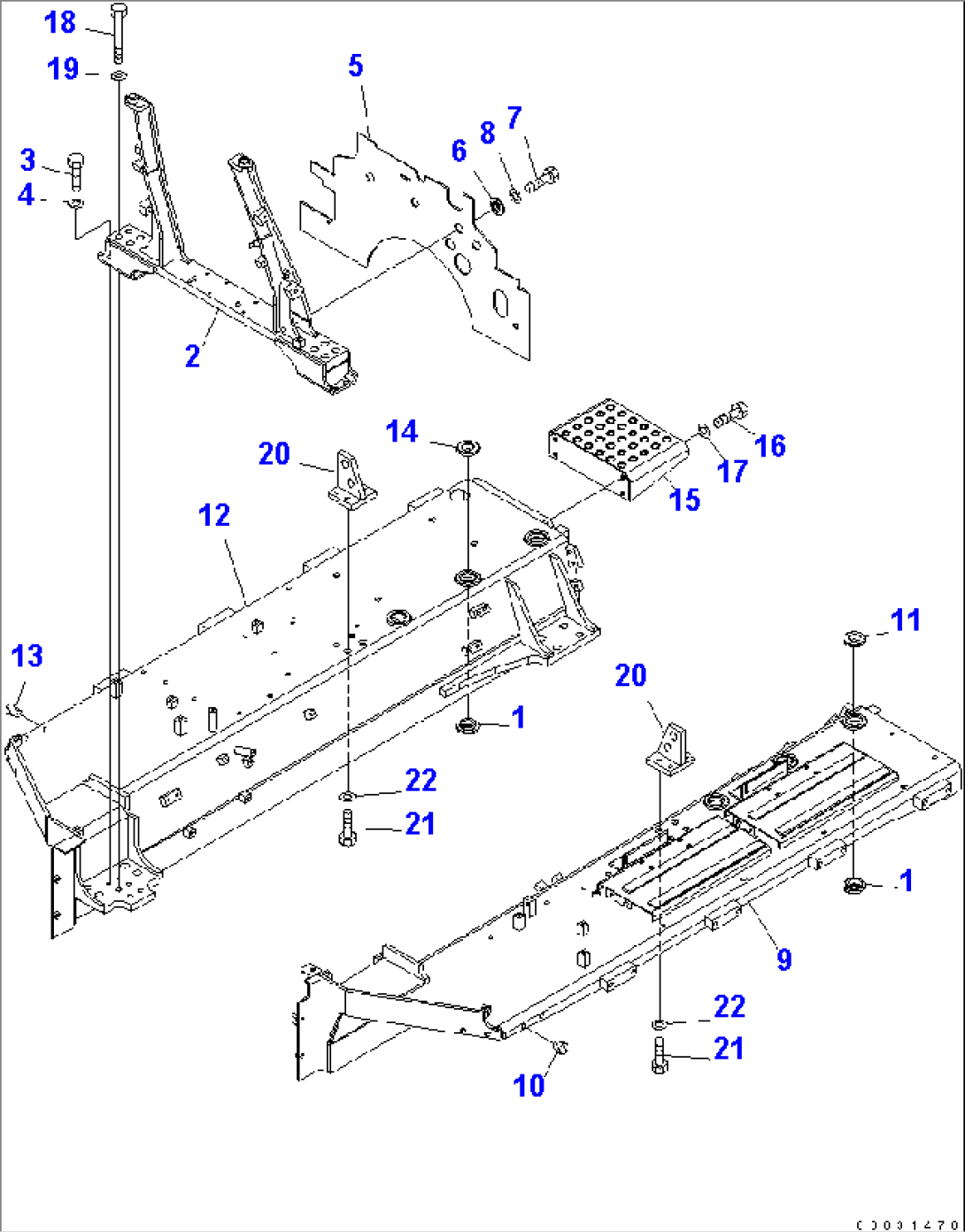

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 195-54-42550 | CUSHION | 10001- | |
| 2 | 154-54-72211 | BRACKET | 10001- | |
| 3 | 01010-81230 | BOLT | 10001- | |
| 4 | 01643-31232 | WASHER | 10001- | |
| 5 | 154-01-71131 | RUBBER | 10001- | |
| 6 | 154-01-71150 | PLATE | 10001- | |
| 7 | 01010-81230 | BOLT | 10001- | |
| 8 | 01643-31232 | WASHER | 10001- | |
| 9 | 154-54-77611 | FENDER,L.H. | 10307- | |
| 9 | 154-54-77610 | FENDER,L.H. | 10001-10306 | |
| 10 | 07049-01215 | PLUG | 10001- | |
| 11 | 195-54-42550 | CUSHION | 10001- | |
| 12 | 154-54-77621 | FENDER,R.H. | 10307- | |
| 12 | 154-54-77620 | FENDER,R.H. | 10001-10306 | |
| 13 | 07049-01215 | PLUG | 10001- | |
| 14 | 195-54-42550 | CUSHION | 10001- | |
| 15 | 154-54-73230 | BRACKET | 10001- | |
| 16 | 01010-81230 | BOLT | 10001- | |
| 17 | 01643-31232 | WASHER | 10001- | |
| 18 | 01011-82075 | BOLT | 10001- | |
| 19 | 01643-32060 | WASHER | 10001- | |
| 20 | 154-54-74151 | BRACKET | 10001- | |
| 21 | 01010-81635 | BOLT | 10001- | |
| 22 | 21T-54-16150 | WASHER | 10001- |
