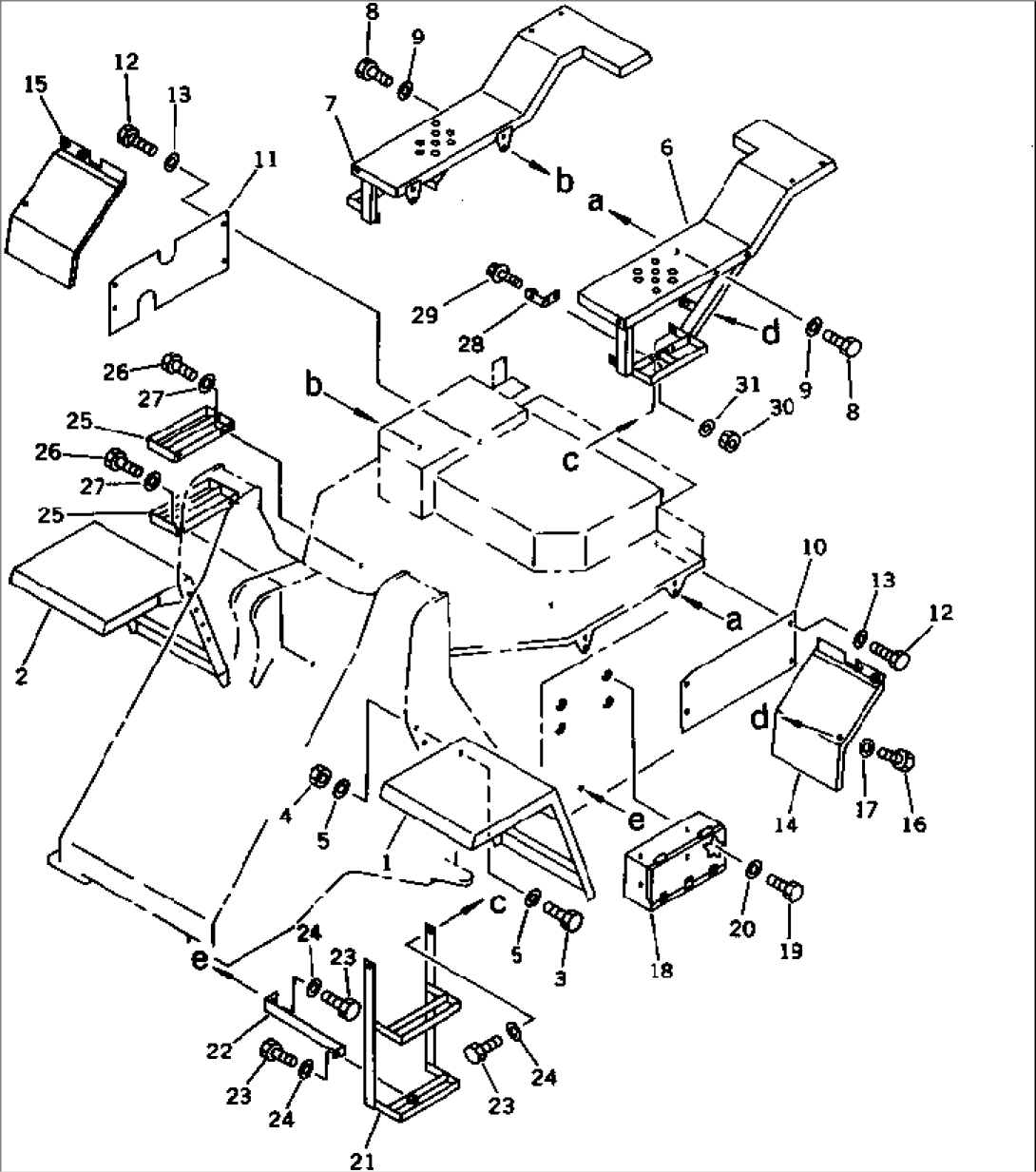

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-54-11523 | FENDER,FRONT, L.H. | | 10001-@ |
| 2 | 417-54-11513 | FENDER,FRONT, R.H. | | 10001-@ |
| 3 | 01010-51235 | BOLT | | 10001-@ |
| 4 | 01580-21210 | NUT | | 10001-@ |
| 5 | 01643-31232 | WASHER | | 10001-@ |
| 6 | 416-54-14212 | FENDER,REAR, L.H. | | 10001-11999 |
| 6 | 417-54-14850 | FENDER,REAR, L.H. (WA180-1P) | | 10455-11999 |
| 6 | 416-54-14212 | FENDER,REAR, L.H. (WA180-1P) | | 10001-10454 |
| 7 | 416-54-14222 | FENDER,REAR, R.H. | | 10001-11999 |
| 7 | 417-54-14870 | FENDER,REAR, R.H. (WA180-1P) | | 10455-11999 |
| 7 | 416-54-14222 | FENDER,REAR, R.H. (WA180-1P) | | 10001-10454 |
| 8 | 01010-51245 | BOLT | | 10001-@ |
| 9 | 01643-31232 | WASHER | | 10001-@ |
| 10 | 416-54-14170 | COVER,L.H. | | 10001-@ |
| 11 | 416-54-14180 | COVER,R.H. | | 10001-@ |
| 12 | 01010-51225 | BOLT | | 10001-@ |
| 13 | 01643-31232 | WASHER | | 10001-@ |
| 14 | 416-54-14152 | COVER,L.H. | | 10001-11999 |
| 15 | 416-54-14161 | COVER,R.H. | | 10001-11999 |
| 16 | 01010-51225 | BOLT | | 10001-@ |
| 17 | 01643-31232 | WASHER | | 10001-@ |
| 18 | 416-54-14132 | BOX | | 10001-@ |
| 19 | 01010-51225 | BOLT | | 10001-@ |
| 20 | 01643-31232 | WASHER | | 10001-@ |
| 21 | 416-54-14111 | LADDER | | 10001-@ |
| 21 | 417-54-14860 | LADDER,(WA180-1P) | | 10455-11999 |
| 21 | 416-54-14111 | LADDER,(WA180-1P) | | 10001-10454 |
| 22 | 416-54-14230 | STAY | | 10001-@ |
| 23 | 01010-51235 | BOLT | | 10001-@ |
| 24 | 01643-31232 | WASHER | | 10001-@ |
| 25 | 417-54-12172 | LADDER | | 10001-11999 |
| 26 | 01010-51230 | BOLT | | 10001-@ |
| 27 | 01643-31232 | WASHER | | 10001-@ |
