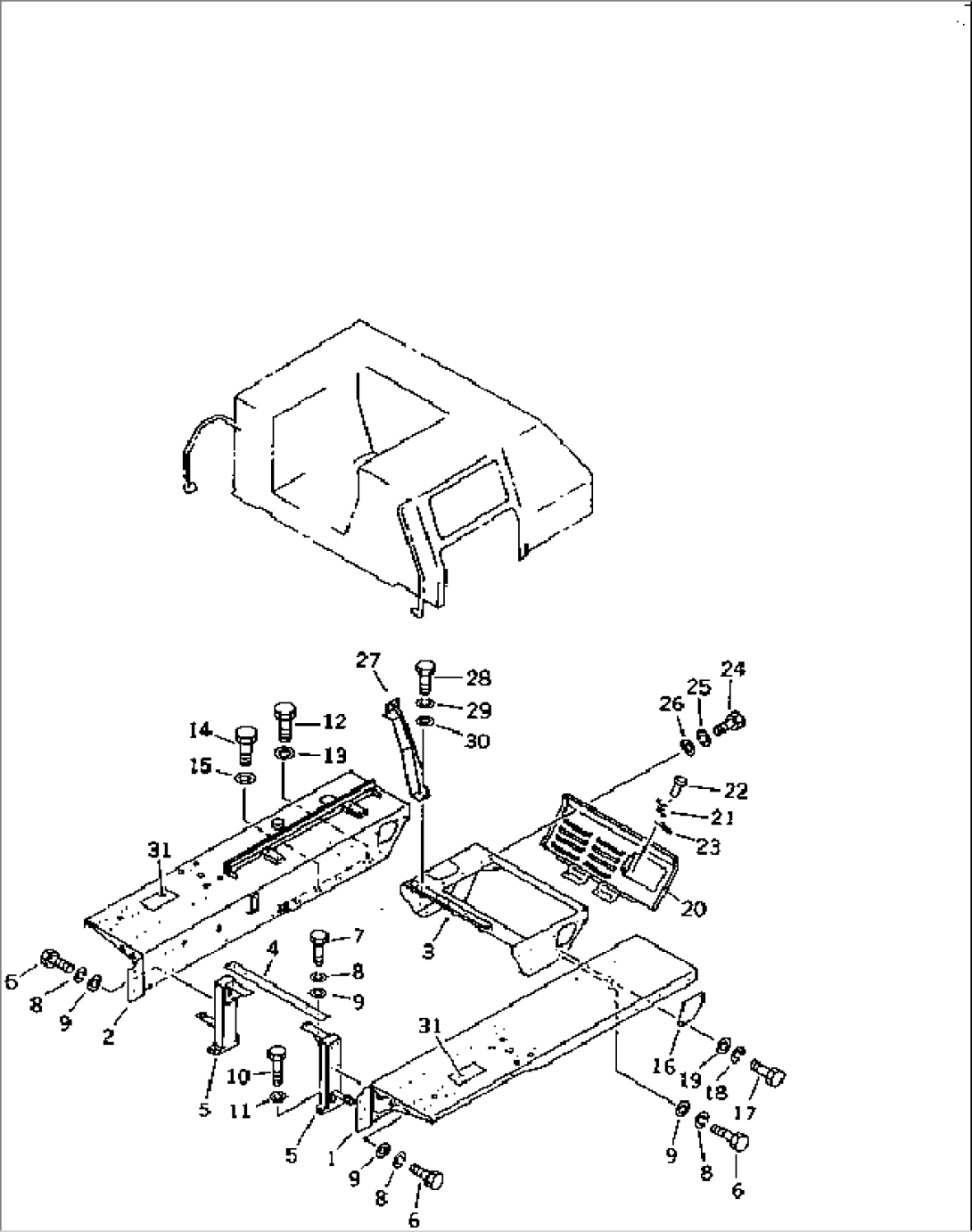

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-54-32330 | FENDER,L.H. | 81285-82372 | |
| 2 | 134-A62-2810 | FENDER,R.H. | 81285-82372 | |
| 3 | 130-54-72141 | FRAME | 81285-82372 | |
| 4 | 130-54-72250 | BRACKET | 81285-82372 | |
| 5 | 13F-54-32210 | BRACKET | 81285-82372 | |
| 6 | 01010-51440 | BOLT | 81285-82372 | |
| 7 | 01010-51435 | BOLT | 81285-82372 | |
| 8 | 01602-21442 | WASHER,SPRING | 81285-82372 | |
| 9 | 01643-31445 | WASHER | 81285-82372 | |
| 10 | 01010-51645 | BOLT | 81285-82372 | |
| 11 | 01643-31645 | WASHER | 81285-82372 | |
| 12 | 01010-52050 | BOLT | 81285-82372 | |
| 13 | 01643-32060 | WASHER | 81285-82372 | |
| 14 | 01010-52455 | BOLT | 81285-82372 | |
| 15 | 01643-32460 | WASHER | 81285-82372 | |
| 16 | 130-54-62290 | COVER | 81285-82372 | |
| 17 | 01010-51230 | BOLT | 81285-82372 | |
| 18 | 01602-21236 | WASHER,SPRING | 81285-82372 | |
| 19 | 01643-31232 | WASHER | 81285-82372 | |
| 20 | 130-A62-1690 | COVER,REAR | 81285-82372 | |
| 21 | 09463-00002 | SPRING | 81285-82372 | |
| 22 | 04205-10618 | PIN | 81285-82372 | |
| 23 | 04050-01610 | PIN,COTTER | 81285-82372 | |
| 24 | 01010-51225 | BOLT | 81285-82372 | |
| 25 | 01602-21236 | WASHER,SPRING | 81285-82372 | |
| 26 | 01643-31232 | WASHER | 81285-82372 | |
| 27 | 130-54-82230 | BRACKET | 81285-82372 | |
| 28 | 01010-51230 | BOLT | 81285-82372 | |
| 29 | 01602-21236 | WASHER,SPRING | 81285-82372 | |
| 30 | 01643-31232 | WASHER | 81285-82372 | |
| 31 | 120-54-32451 | SHEET,ANTISKID | 81285-82372 |
