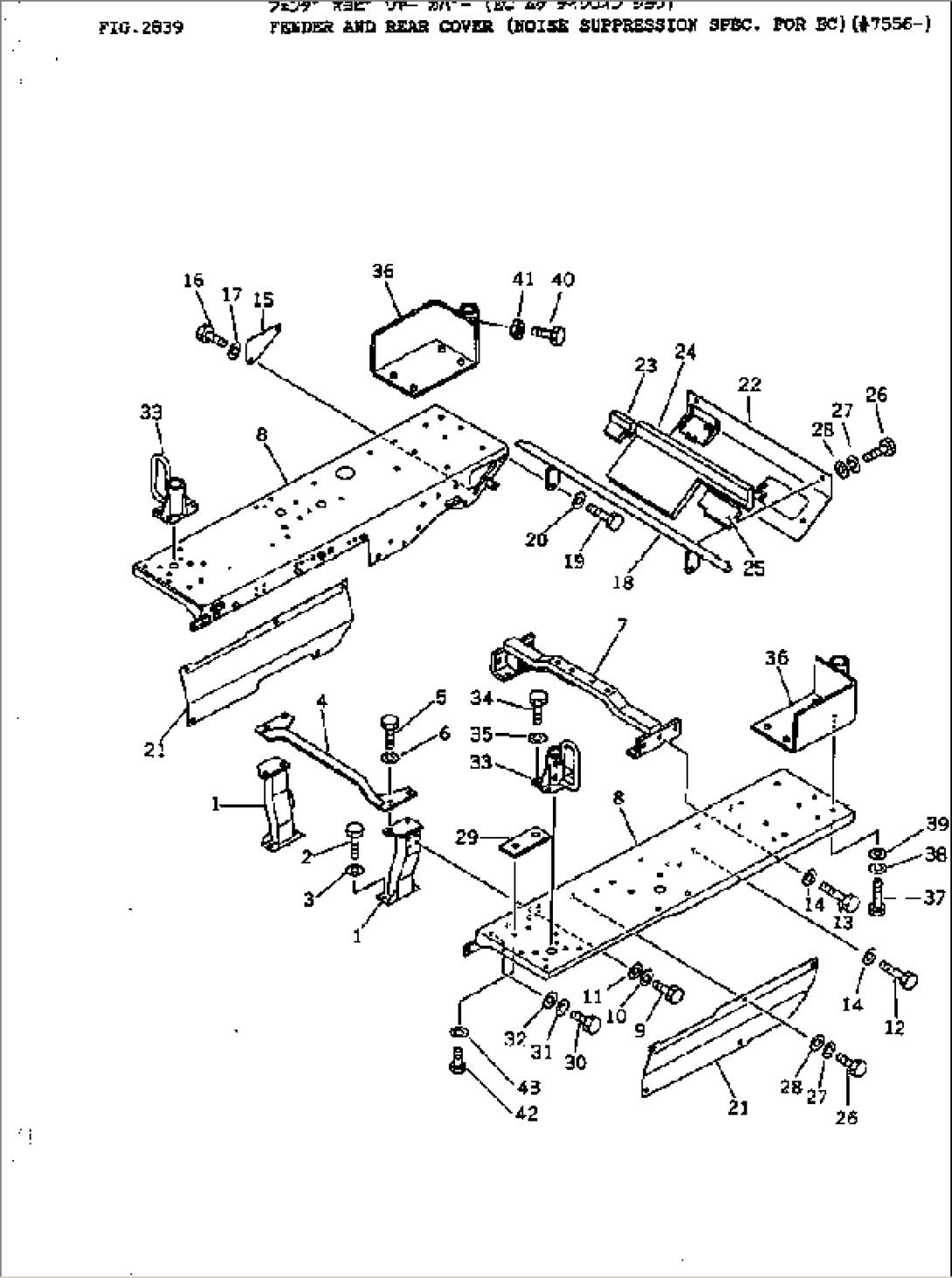

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 120-54-33334 | BRACKET,L.H. | 7834- | |
| 1 | 120-54-33324 | BRACKET,R.H. | 7834- | |
| 2 | 01010-52045 | BOLT | 7834- | |
| 3 | 01643-32060 | WASHER | 7834- | |
| 4 | 120-54-33312 | FRAME | 7834- | |
| 5 | 01010-31245 | BOLT | 7834- | |
| 6 | 01602-01236 | WASHER,SPRING | 7834- | |
| 7 | 120-54-32274 | BRACKET | 7834- | |
| 8 | 120-54-33192 | FENDER,L.H. | 7834- | |
| 8 | 120-54-33182 | FENDER,R.H. | 7834- | |
| 9 | 01010-51235 | BOLT | 7834- | |
| 10 | 01602-21236 | WASHER,SPRING | 7834- | |
| 11 | 01643-31232 | WASHER | 7834- | |
| 12 | 01010-51665 | BOLT | 7834- | |
| 13 | 01010-51670 | BOLT | 7834- | |
| 14 | 01643-31645 | WASHER | 7834- | |
| 15 | 120-54-33172 | COVER | 7834- | |
| 16 | 01010-51225 | BOLT | 7834- | |
| 17 | 01602-21236 | WASHER,SPRING | 7834- | |
| 18 | 120-54-33381 | FRAME | 7834- | |
| 19 | 01010-51635 | BOLT | 7834- | |
| 20 | 01643-31645 | WASHER | 7834- | |
| 21 | 120-54-33222 | COVER,L.H. | 7834- | |
| 21 | 120-54-33233 | COVER,R.H. | 7834- | |
| 22 | 120-54-33371 | COVER | 7834- | |
| 23 | 12G-B62-3660 | ABSORBER | 7834- | |
| 24 | 12G-B62-3670 | ABSORBER | 7834- | |
| 25 | 134-A62-3330 | ABSORBER | 7834- | |
| 26 | 01010-51230 | BOLT | 7834- | |
| 27 | 01602-21236 | WASHER,SPRING | 7834- | |
| 28 | 01643-31232 | WASHER | 7834- | |
| 29 | 120-54-35240 | PLATE | 7834- | |
| 30 | 01010-51240 | BOLT | 7834- | |
| 31 | 01602-21236 | WASHER,SPRING | 7834- | |
| 32 | 01643-31232 | WASHER | 7834- | |
| 33 | 120-54-33411 | BRACKET | 7834- | |
| 34 | 01010-51430 | BOLT | 7834- | |
| 35 | 01602-21442 | WASHER,SPRING | 7834- | |
| 36 | 120-54-33421 | BRACKET,L.H. | 7834- | |
| 36 | 120-54-33431 | BRACKET,R.H. | 7834- | |
| 37 | 01010-51655 | BOLT | 7834- | |
| 38 | 01602-21648 | WASHER,SPRING | 7834- | |
| 39 | 01643-31645 | WASHER | 7834- | |
| 40 | 01016-51645 | BOLT | 7834- | |
| 41 | 01580-11613 | NUT | 7834- | |
| 42 | 01010-51655 | BOLT | 7834- | |
| 43 | 01643-31645 | WASHER | 7834- |
