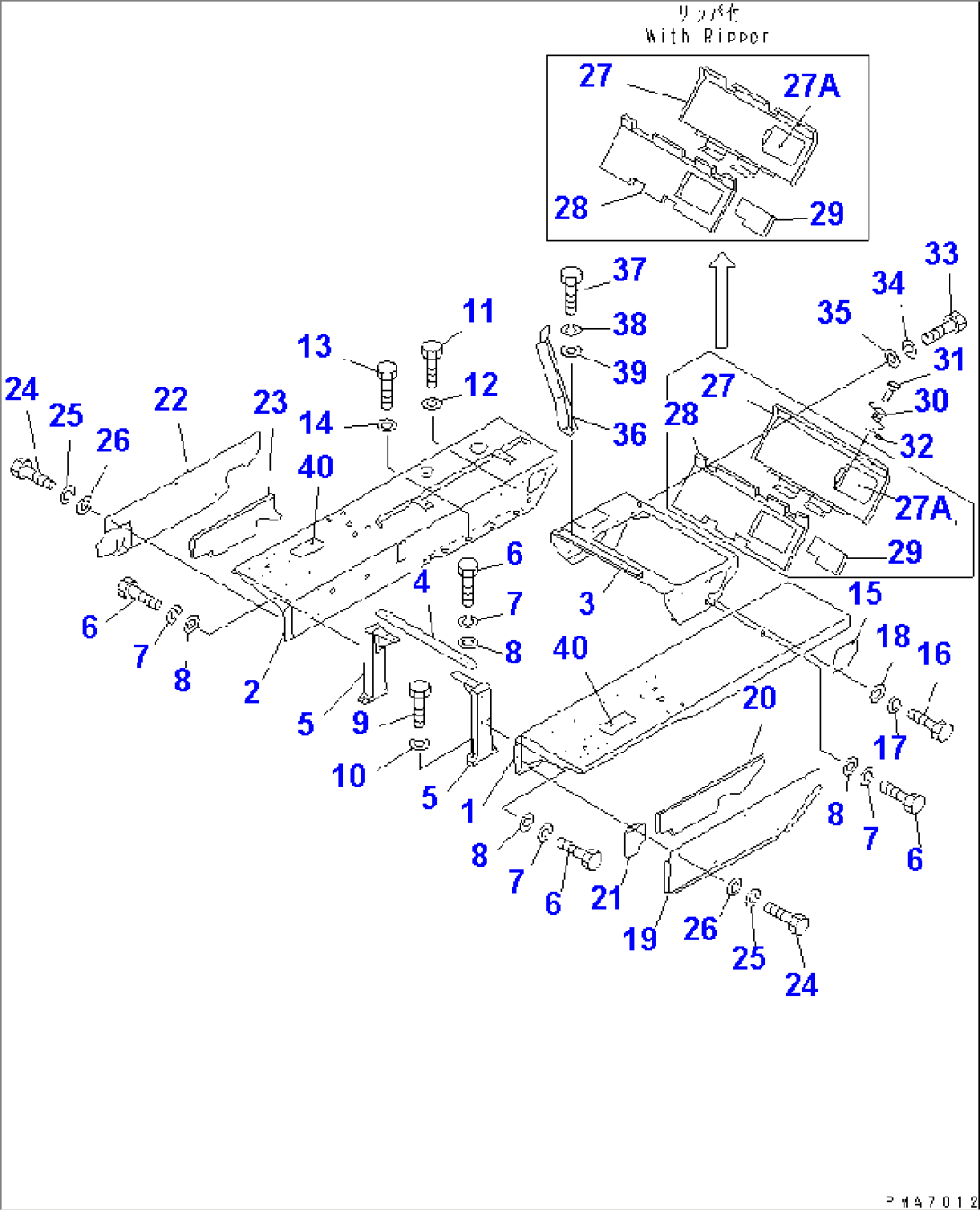

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-A62-3690 | FENDER,L.H. | 81347- | |
| 2 | 134-A62-3680 | FENDER,R.H. | 81347- | |
| 3 | 130-54-72141 | FRAME | 81347- | |
| 4 | 130-54-72250 | BRACKET | 81347- | |
| 5 | 130-54-72260 | BRACKET | 81347- | |
| 6 | 01010-51440 | BOLT | 81347- | |
| 7 | 01602-21442 | WASHER,SPRING | 81347- | |
| 8 | 01643-31445 | WASHER | 81347- | |
| 9 | 01010-51645 | BOLT | 81347- | |
| 10 | 01643-31645 | WASHER | 81347- | |
| 11 | 01010-52050 | BOLT | 81347- | |
| 12 | 01643-32060 | WASHER | 81347- | |
| 13 | 01010-52455 | BOLT | 81347- | |
| 14 | 01643-32460 | WASHER | 81347- | |
| 15 | 130-54-62290 | COVER | 81347- | |
| 16 | 01010-51230 | BOLT | 81347- | |
| 17 | 01602-21236 | WASHER,SPRING | 81347- | |
| 18 | 01643-31232 | WASHER | 81347- | |
| 134-A62-3760 | COVER,L.H. | 81347- | ||
| 19 | 130-54-72210 | COVER,L.H. | 81347- | |
| 20 | 134-A62-3770 | ABSORBER | 81347- | |
| 21 | 134-A62-3780 | ABSORBER | 81347- | |
| 134-A62-3740 | COVER,R.H. | 81347- | ||
| 22 | 130-54-72230 | COVER,R.H. | 81347- | |
| 23 | 134-A62-3750 | ABSORBER | 81347- | |
| 24 | 01010-51225 | BOLT | 81347- | |
| 25 | 01602-21236 | WASHER,SPRING | 81347- | |
| 26 | 01643-31232 | WASHER | 81347- | |
| 27 | 134-A62-3350 | COVER,REAR | 81347- | |
| 27 | 134-A62-4250 | COVER,REAR (WITH RIPPER) | 81347- | |
| 27A | 144-54-12172 | COVER (WELDED) | 81347- | |
| 28 | 134-A62-3340 | ABSORBER | 81347- | |
| 28 | 134-A62-4260 | ABSORBER,(WITH RIPPER) | 81347- | |
| 29 | 134-A62-3330 | ABSORBER | 81347- | |
| 30 | 09463-00002 | SPRING | 81347- | |
| 31 | 04205-10618 | PIN | 81347- | |
| 32 | 04050-01610 | PIN,COTTER | 81347- | |
| 33 | 01010-51225 | BOLT | 81347- | |
| 34 | 01602-21236 | WASHER,SPRING | 81347- | |
| 35 | 01643-31232 | WASHER | 81347- | |
| 36 | 130-54-72330 | BRACKET | 81347- | |
| 37 | 01010-51230 | BOLT | 81347- | |
| 38 | 01602-21236 | WASHER,SPRING | 81347- | |
| 39 | 01643-31232 | WASHER | 81347- | |
| 40 | 120-54-32451 | SHEET,ANTISKID | 81347- |
