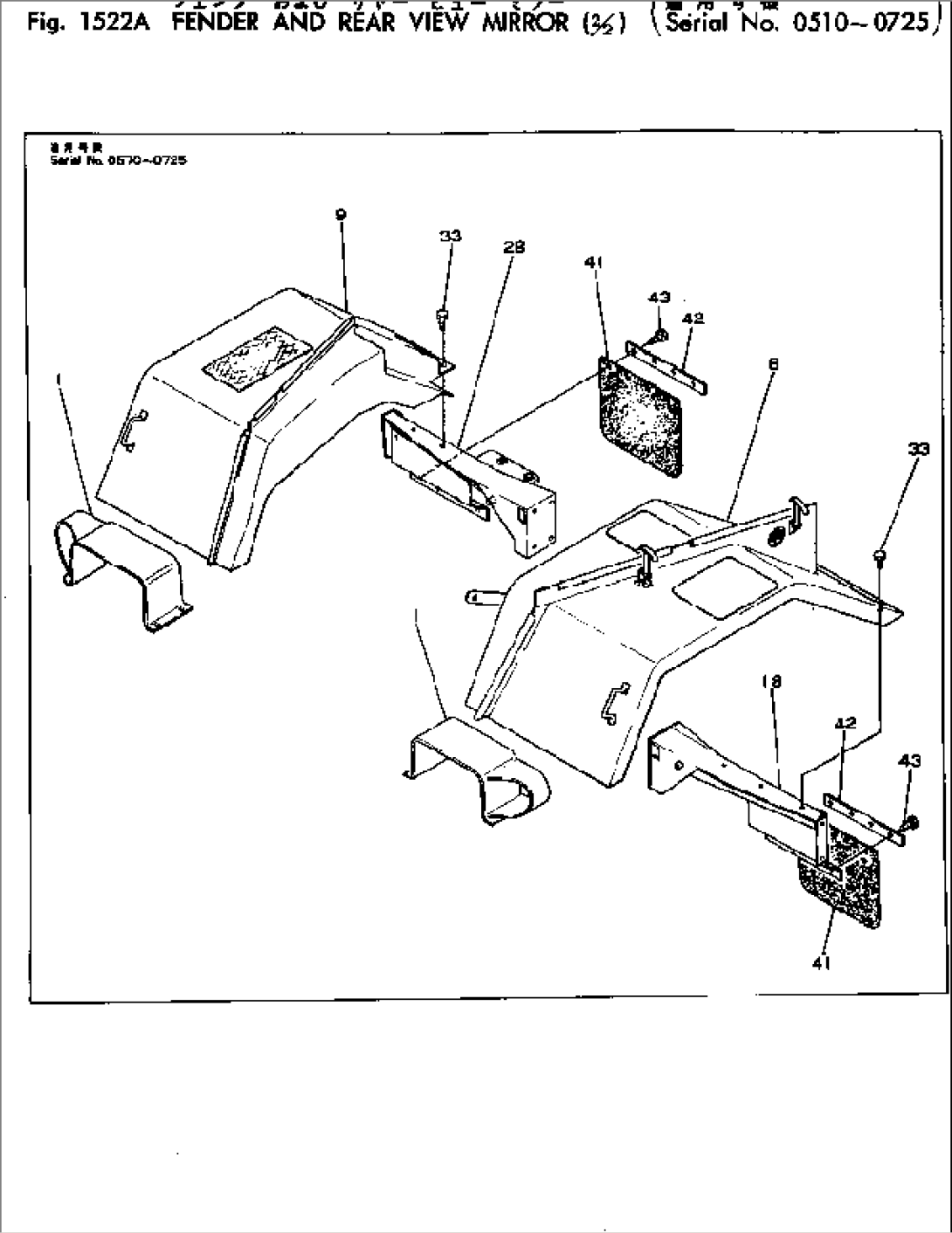

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 565-54-14212 | COVER,L.H. | 570-725 | |
| 1 | 565-54-14222 | COVER,R.H. | 570-725 | |
| 1 | 281-06-13212 | COVER | 510-569 | |
| 2 | 01010-51230 | BOLT | 510-725 | |
| 3 | 01602-21236 | WASHER | 510-725 | |
| 4 | 565-54-14251 | COVER | 510-569 | |
| 5 | 565-54-14261 | COVER | 510-569 | |
| 6 | 01010-50820 | BOLT | 510-569 | |
| 7 | 01602-20825 | WASHER | 510-569 | |
| 8 | 565-54-15113 | FENDER,L.H. | 570-725 | |
| 8 | 565-54-15112 | FENDER,L.H. | 510-569 | |
| 8 | 232-54-12230 | CATCHER | 510-725 | |
| 8 | 04400-00410 | RIVET | 510-725 | |
| 9 | 565-54-15213 | FENDER,R.H. | 570-725 | |
| 9 | 565-54-15212 | FENDER,R.H. | 510-569 | |
| 9 | 232-54-12230 | CATCHER | 510-725 | |
| 9 | 04400-00410 | RIVET | 510-725 | |
| 10 | 01010-51235 | BOLT | 510-725 | |
| 12 | 01598-11214 | NUT | 510-725 | |
| 13 | 01641-21223 | WASHER | 510-725 | |
| 14 | 01010-51240 | BOLT | 510-725 | |
| 16 | 01598-11214 | NUT | 510-725 | |
| 17 | 01643-21232 | WASHER | 510-725 | |
| 18 | 565-54-15141 | BRACKET,L.H. | 570-725 | |
| 18 | 565-54-15140 | BRACKET,L.H. | 510-569 | |
| 19 | 01010-51435 | BOLT | 510-725 | |
| 20 | 01602-21442 | WASHER | 510-725 | |
| 21 | 01580-11411 | NUT | 510-725 | |
| 22 | 560-54-15170 | SEAT | 510-725 | |
| 23 | 01052-51255 | BOLT | 510-725 | |
| 24 | 565-54-15170 | SEAT | 510-725 | |
| 25 | 565-54-15180 | WASHER | 510-725 | |
| 26 | 01592-01215 | NUT | 510-725 | |
| 27 | 04050-03022 | PIN | 510-725 | |
| 28 | 565-54-15150 | BRACKET,R.H. | 570-725 | |
| 28 | 560-54-15234 | BRACKET,R.H. | 510-569 | |
| 29 | 01050-51430 | BOLT | 510-725 | |
| 30 | 01602-21442 | WASHER | 510-725 | |
| 31 | 01640-21426 | WASHER | 510-725 | |
| 32 | 560-54-15260 | SEAT | 510-725 | |
| 33 | 01050-51225 | BOLT | 510-725 | |
| 34 | 565-54-15170 | SEAT | 510-725 | |
| 35 | 565-54-15180 | WASHER | 510-725 | |
| 36 | 01592-01215 | NUT | 510-725 | |
| 37 | 04050-03022 | PIN | 510-725 | |
| 38 | 560-54-15130 | COVER,L.H. | 510-725 | |
| 39 | 01010-51220 | BOLT | 510-725 | |
| 40 | 01602-21236 | WASHER | 510-725 | |
| 41 | 565-54-15310 | GUARD | 570-725 | |
| 41 | 560-54-15311 | GUARD | 510-569 | |
| 42 | 565-54-15320 | PLATE | 570-725 | |
| 42 | 560-54-15321 | PLATE | 510-569 | |
| 43 | 01052-51225 | BOLT | 570-725 | |
| 43 | 01052-51225 | BOLT | 510-569 | |
| 44 | 01582-11210 | NUT | 570-725 | |
| 44 | 01582-11210 | NUT | 510-569 | |
| 45 | 01602-21236 | WASHER | 570-725 | |
| 45 | 01602-21236 | WASHER | 510-569 | |
| 565-55-11002 | MIRROR ASS'Y | 510-569 | ||
| 46 | 565-55-11115 | POLE,L.H. | 510-569 | |
| 47 | 565-55-11132 | POLE,R.H. | 510-569 | |
| 48 | 01010-51025 | BOLT | 510-569 | |
| 49 | 01602-21030 | WASHER | 510-569 | |
| 50 | 01580-11008 | NUT | 510-569 | |
| 51 | 566-06-16420 | MIRROR,REAR VIEW | 510-569 | |
| 52 | 565-55-11120 | MIRROR,UNDER | 510-569 |
