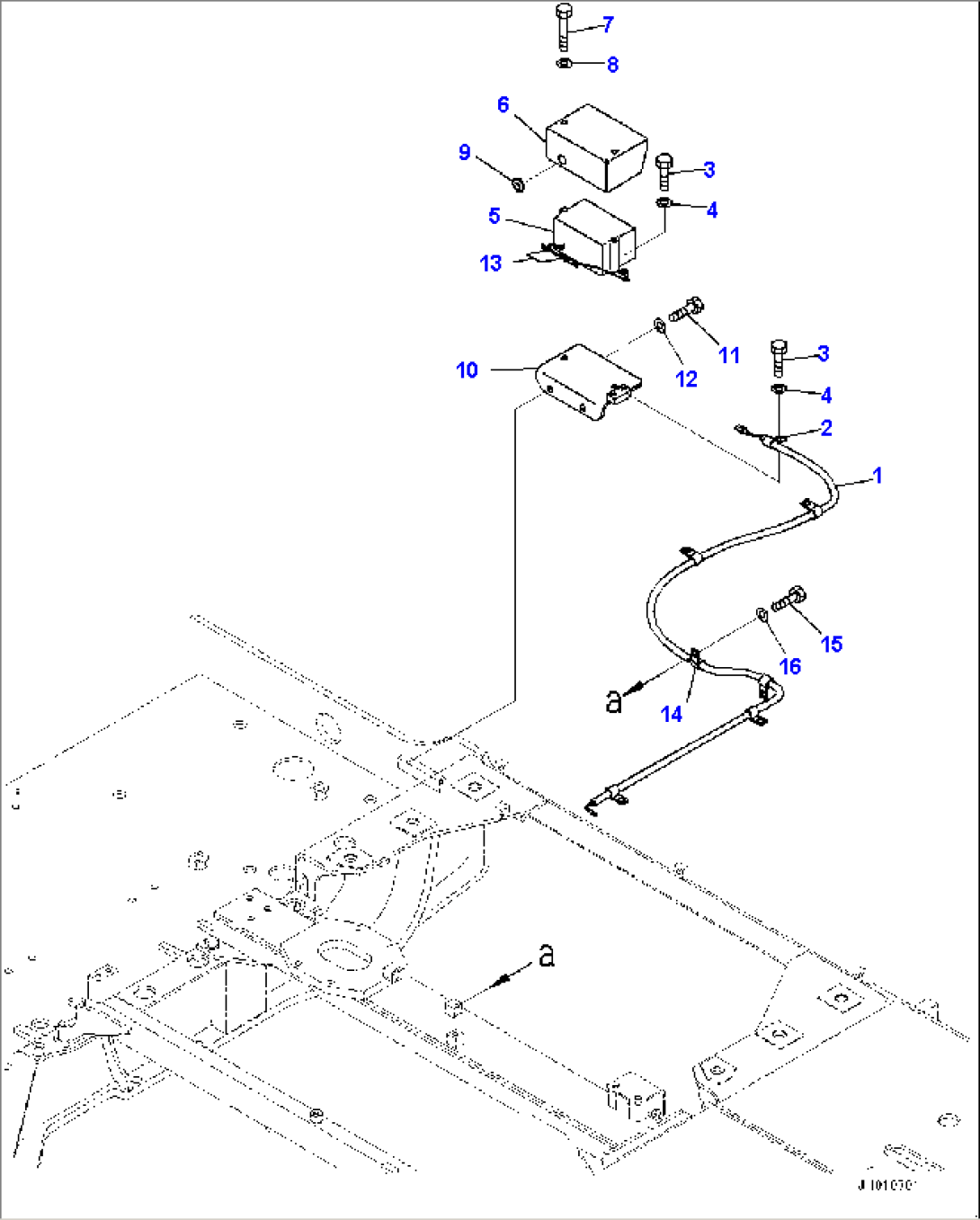

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 196-06-34420 | Wire Assembly | 15479-@ | |
| 2 | 04434-51510 | Clip | 15479-15517 | |
| 3 | 01010-81016 | Bolt | 15479-15517 | |
| 4 | 01643-31032 | Washer | 15479-15517 | |
| 5 | 08164-00000 | Alarm, Back-up | 15479-15517 | |
| 6 | 176-06-42620 | Cover | 15479-15517 | |
| 7 | 01011-81010 | Bolt | 15479-15517 | |
| 8 | 01643-31032 | Washer | 15479-15517 | |
| 9 | 08037-01610 | Grommet | 15479-15517 | |
| 10 | 196-06-34431 | Bracket | 15479-15517 | |
| 11 | 01010-81225 | Bolt | 15479-15517 | |
| 12 | 01643-31232 | Washer | 15479-15517 | |
| 13 | 08034-20414 | Band, Black | 15479-15517 | |
| 14 | 04434-51512 | Clip | 15479-@ | |
| 15 | 01010-81220 | Bolt | 15479-@ | |
| 16 | 01643-31232 | Washer | 15479-@ |
