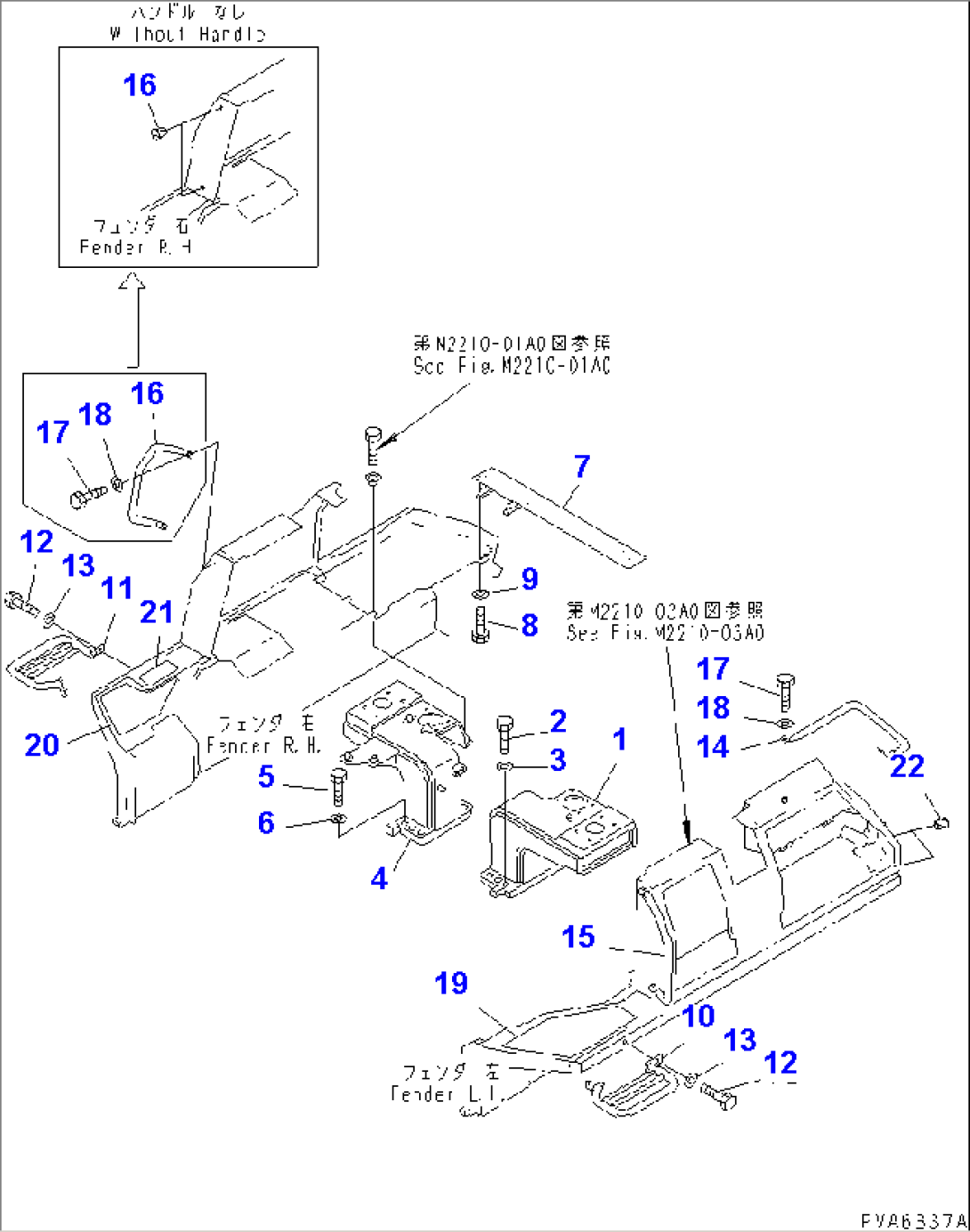

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-54-13313 | BRACKET,L.H. | 3034- | |
| 2 | 01010-82470 | BOLT | 3034- | |
| 3 | 01643-32460 | WASHER | 3034- | |
| 4 | 14X-54-13323 | BRACKET,R.H. | 3034- | |
| 5 | 01010-82470 | BOLT | 3034- | |
| 6 | 01643-32460 | WASHER | 3034- | |
| 7 | 14X-54-13145 | PLATE | 3034- | |
| 8 | 01010-81225 | BOLT | 3034- | |
| 9 | 01643-31232 | WASHER | 3034- | |
| 10 | 14X-54-13215 | HANDLE,L.H. | 3034- | |
| 11 | 14X-54-13232 | HANDLE,R.H. | 3034- | |
| 12 | 01010-81230 | BOLT | 3034- | |
| 13 | 01643-31232 | WASHER | 3034- | |
| 14 | 14X-54-23940 | HANDLE,L.H. | 4001- | |
| 14 | 14X-54-13941 | HANDLE,L.H. | 3034-4000 | |
| 15 | 14X-54-13911 | HANDLE,L.H. | 3034- | |
| 16 | 14X-54-13921 | HANDLE,R.H. | 3034- | |
| 16 | 07049-01215 | PLUG,(WITHOUT HOLDER) | 3034- | |
| 17 | 01010-81225 | BOLT | 3034- | |
| 17 | 01010-81225 | BOLT,(WITHOUT HOLDER) | 3034- | |
| 18 | 01643-31232 | WASHER | 3034- | |
| 18 | 01643-31232 | WASHER,(WITHOUT HOLDER) | 3034- | |
| 19 | 14X-54-13811 | SHEET,L.H. | 3034- | |
| 20 | 14X-54-13821 | SHEET,R.H. | 3034- | |
| 21 | 14X-54-13830 | SHEET,R.H. | 3034- | |
| 22 | 07049-01215 | PLUG | 3034- |
