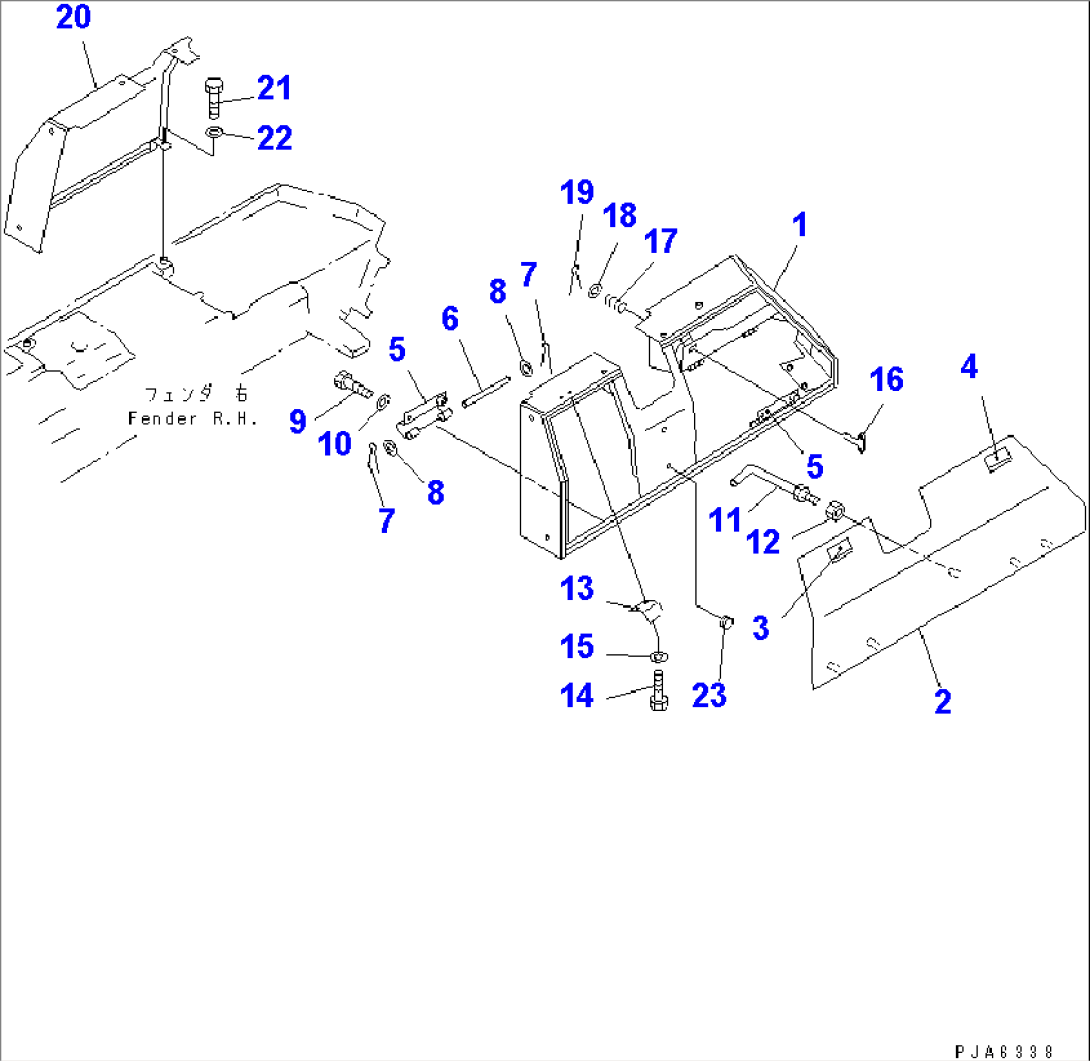

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-54-14114 | COVER,L.H. | 3034- | |
| 2 | 14X-54-14232 | COVER | 3034- | |
| 3 | 17A-54-14230 | LOCK (WELDED) | 3034- | |
| 4 | 17A-54-14240 | LOCK (WELDED) | 3034- | |
| 5 | 14X-54-14242 | HINGE | 3034- | |
| 6 | 14X-54-14251 | PIN | 3034- | |
| 7 | 04050-13020 | PIN,COTTER | 3034- | |
| 8 | 01641-21016 | WASHER | 3034- | |
| 9 | 01010-81020 | BOLT | 3034- | |
| 10 | 01643-31032 | WASHER | 3034- | |
| 11 | 14X-54-14271 | HOOK | 3034- | |
| 12 | 01580-11008 | NUT | 3034- | |
| 13 | 14X-54-35380 | PLATE,(FOR CANOPY) | 5207- | |
| 13 | 17A-54-14160 | PLATE,(FOR CANOPY) | 3034-5206 | |
| 13 | 17A-54-14160 | PLATE | 3034- | |
| 14 | 01010-81225 | BOLT | 3034- | |
| 15 | 01643-31232 | WASHER | 3034- | |
| 16 | 09459-11033 | LOCK | 3034- | |
| 17 | 09459-01614 | SPRING | 3034- | |
| 18 | 01642-21016 | WASHER | 3034- | |
| 19 | 04050-13015 | PIN,COTTER | 3034- | |
| 20 | 14X-54-14123 | COVER | 3034- | |
| 21 | 01010-81225 | BOLT | 3034- | |
| 22 | 01643-31232 | WASHER | 3034- | |
| 23 | 09415-00506 | CAP | 3034- |
