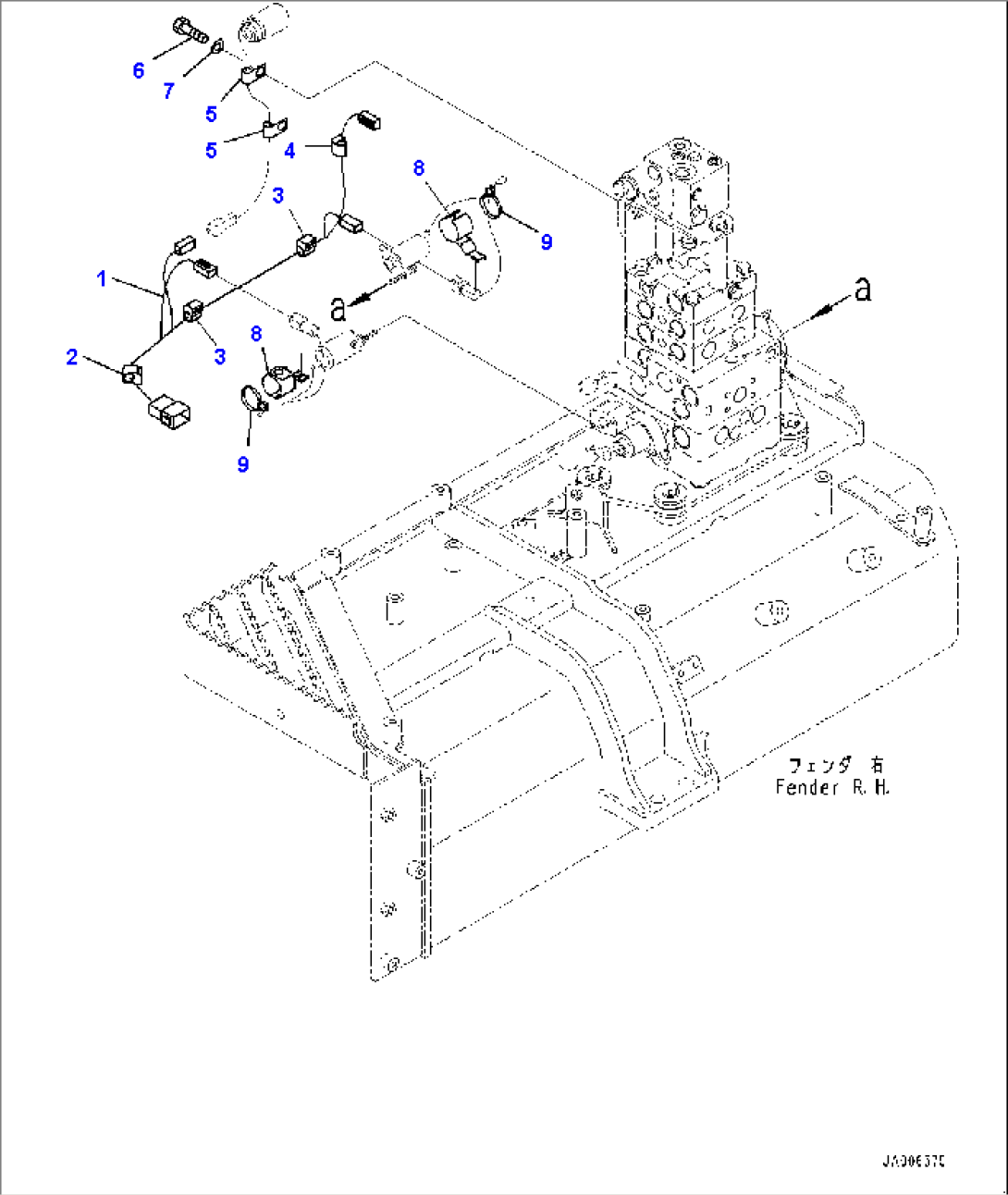

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-06-51271 | Wiring Harness | 1001- | |
| 2 | 08211-01020 | Clip | 1001- | |
| 3 | 08211-01020 | Clip | 1001- | |
| 4 | 08211-00720 | Clip | 1001- | |
| 5 | 04434-50612 | Clip | 1001- | |
| 6 | 01010-81225 | Bolt | 1001- | |
| 7 | 01643-31232 | Washer | 1001- | |
| 8 | 21W-60-41310 | Clip | 1001- | |
| 9 | 08034-40521 | Band | 1001- |
