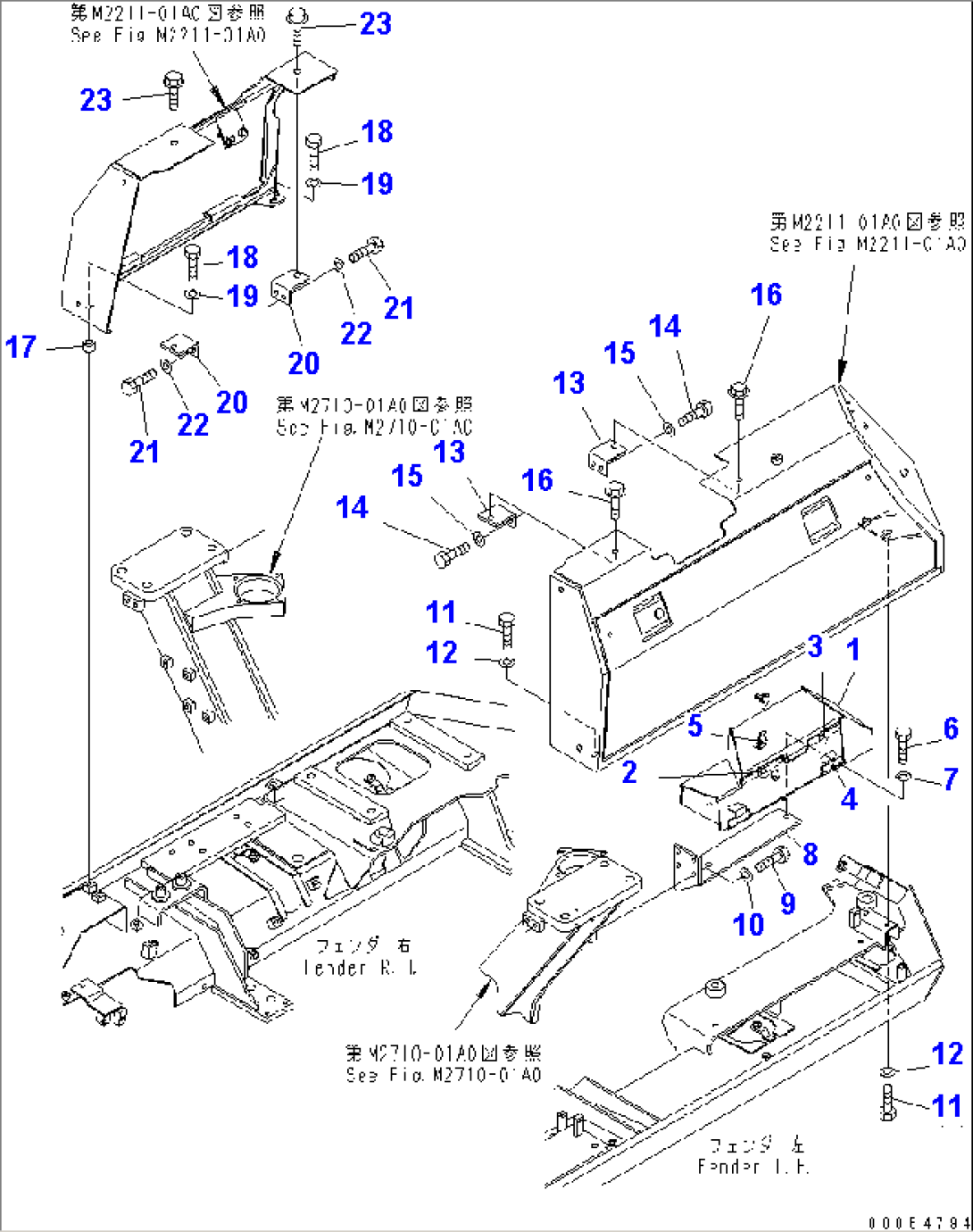

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-54-64411 | TOOL BOX ASS'Y | 1175- | |
| 1 | 134-54-64410 | TOOL | 1001-1174 | |
| 2 | 124-54-54D20 | SHEET | 1001- | |
| 3 | 134-54-64H50 | SHEET | 1001- | |
| 4 | 09455-13016 | HINGE | 1001- | |
| 5 | 22W-54-11470 | BAND | 1001- | |
| 6 | 01010-81225 | BOLT | 1001- | |
| 7 | 01643-31232 | WASHER | 1001- | |
| 8 | 134-54-64443 | BRACKET | 1175- | |
| 8 | 134-54-64442 | BRACKET | 1001-1174 | |
| 9 | 01010-81230 | BOLT | 1001- | |
| 10 | 01643-31232 | WASHER | 1001- | |
| 11 | 01010-81225 | BOLT | 1001- | |
| 12 | 01643-31232 | WASHER | 1001- | |
| 13 | 134-54-64151 | BRACKET | 1001- | |
| 14 | 01010-81225 | BOLT | 1001- | |
| 15 | 01643-31232 | WASHER | 1001- | |
| 16 | 01439-01225 | BOLT | 1001- | |
| 17 | 21T-72-14350 | SPACER | 1001- | |
| 18 | 01010-81245 | BOLT | 1001- | |
| 19 | 01643-31232 | WASHER | 1001- | |
| 20 | 134-54-64151 | BRACKET | 1001- | |
| 21 | 01010-81225 | BOLT | 1001- | |
| 22 | 01643-31232 | WASHER | 1001- | |
| 23 | 01439-01225 | BOLT | 1001- |
