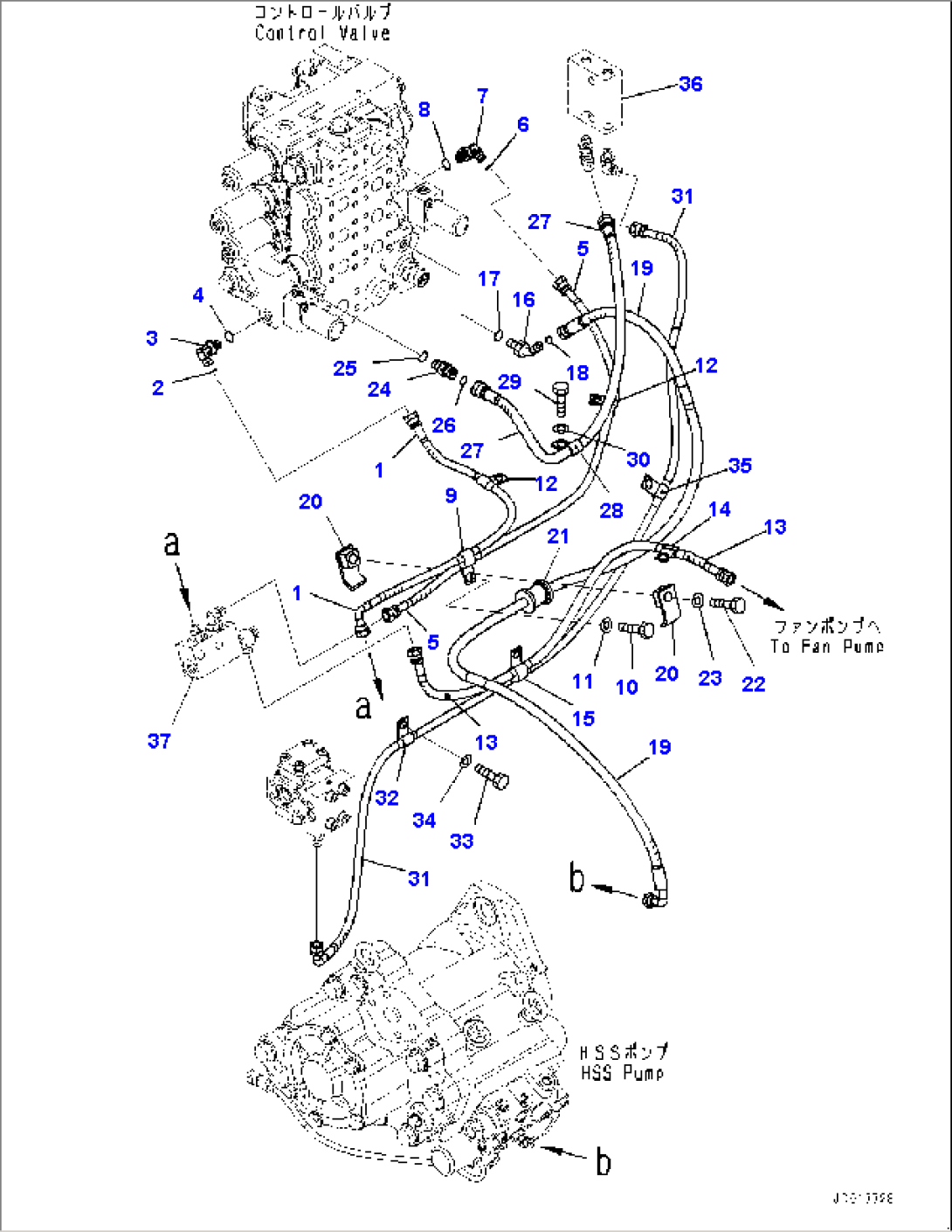

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02763-00206 | Hose, Face Seal Type | 11609- | |
| 2 | 02896-11008 | O-ring | 11609- | |
| 3 | 02782-10210 | Elbow | 11609- | |
| 4 | 07002-11423 | O-ring | 11609- | |
| 5 | 02762-00209 | Hose, Face Seal Type | 11609- | |
| 6 | 02896-11008 | O-ring | 11609- | |
| 7 | 02782-10210 | Elbow | 11609- | |
| 8 | 07002-11423 | O-ring | 11609- | |
| 9 | 04434-51012 | Clip | 11609- | |
| 10 | 01010-81230 | Bolt | 11609- | |
| 11 | 01643-31232 | Washer | 11609- | |
| 12 | 04434-51012 | Clip | 11609- | |
| 13 | 02762-002A7 | Hose, Face Seal Type | 11609- | |
| 14 | 04434-51012 | Clip | 11609- | |
| 15 | 04435-51012 | Clip | 11609- | |
| 16 | 154-61-75761 | Elbow | 11609- | |
| 17 | 07002-11423 | O-ring | 11609- | |
| 18 | 02896-11008 | O-ring | 11609- | |
| 19 | 154-61-71120 | Hose | 11609- | |
| 20 | 07094-10315 | Clamp | 11609- | |
| 21 | 07095-00314 | Cushion | 11609- | |
| 22 | 01010-81265 | Bolt | 11609- | |
| 23 | 01643-31232 | Washer | 11609- | |
| 24 | 02781-0031D | Union | 11609- | |
| 25 | 07002-11423 | O-ring | 11609- | |
| 26 | 02896-11009 | O-ring | 11609- | |
| 27 | 02762-00307 | Hose, Face Seal Type | 11609- | |
| 28 | 04434-51412 | Clip | 11609- | |
| 29 | 01010-81230 | Bolt | 11609- | |
| 30 | 01643-31232 | Washer | 11609- | |
| 31 | 02763-00216 | Hose, Face Seal Type | 11609- | |
| 32 | 04434-51012 | Clip | 11609- | |
| 33 | 01010-81230 | Bolt | 11609- | |
| 34 | 01643-31232 | Washer | 11609- | |
| 35 | 04434-51012 | Clip | 11609- | |
| 36 | (154-61-78360) | Block | - | |
| 37 | (154-61-71150) | Block | - |
