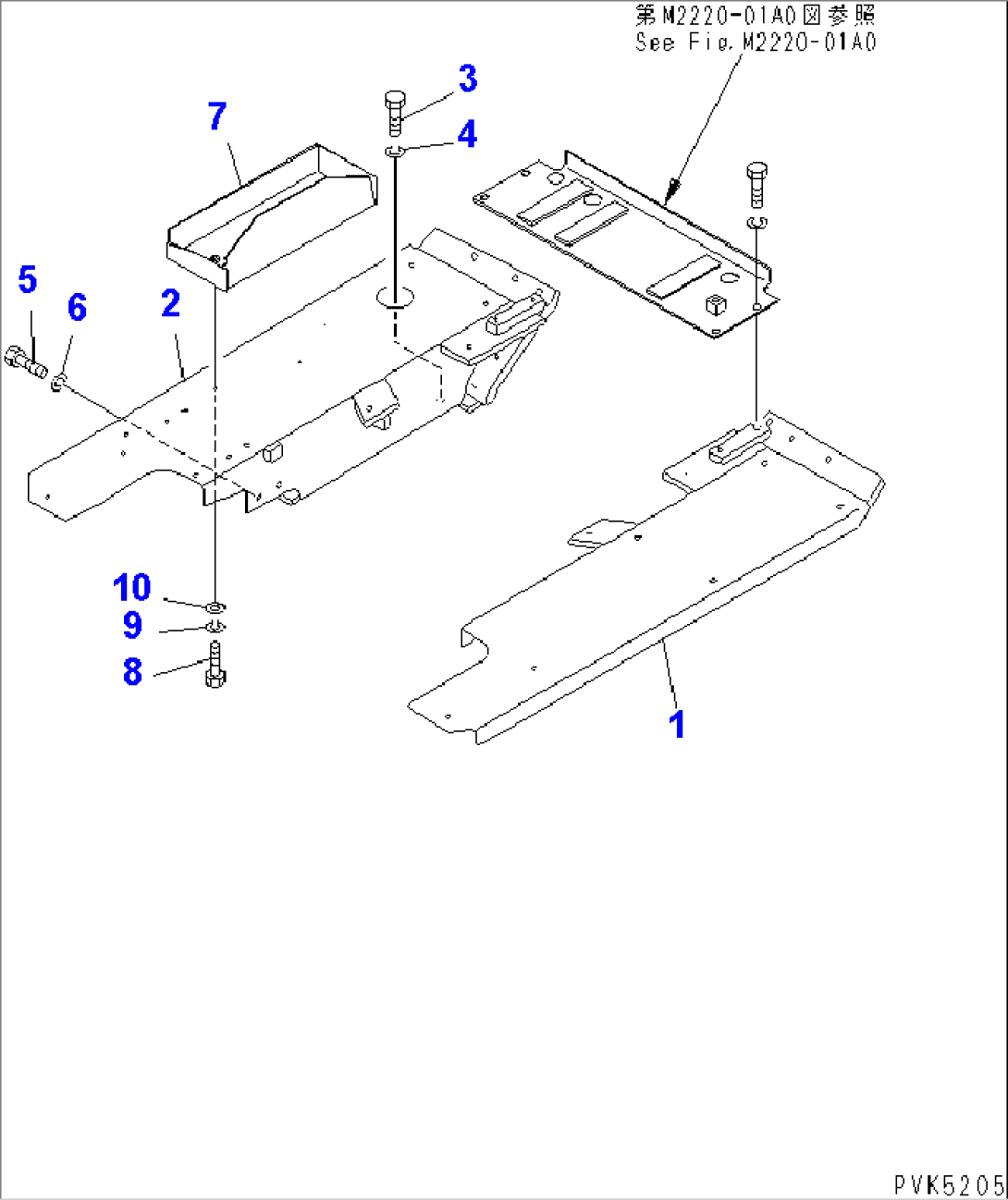

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 104-54-34410 | FENDER,L.H. | 62454- | |
| 2 | 103-54-34421 | FENDER,R.H. | 62454- | |
| 3 | 01010-81435 | BOLT | 62454- | |
| 4 | 01602-21442 | WASHER,SPRING | 62454- | |
| 5 | 01010-81440 | BOLT | 62454- | |
| 6 | 01602-21442 | WASHER,SPRING | 62454- | |
| 7 | 104-54-49120 | BOX | 62454- | |
| 8 | 01010-80820 | BOLT | 62454- | |
| 9 | 01602-20825 | WASHER,SPRING | 62454- | |
| 10 | 01643-30823 | WASHER | 62454- |
