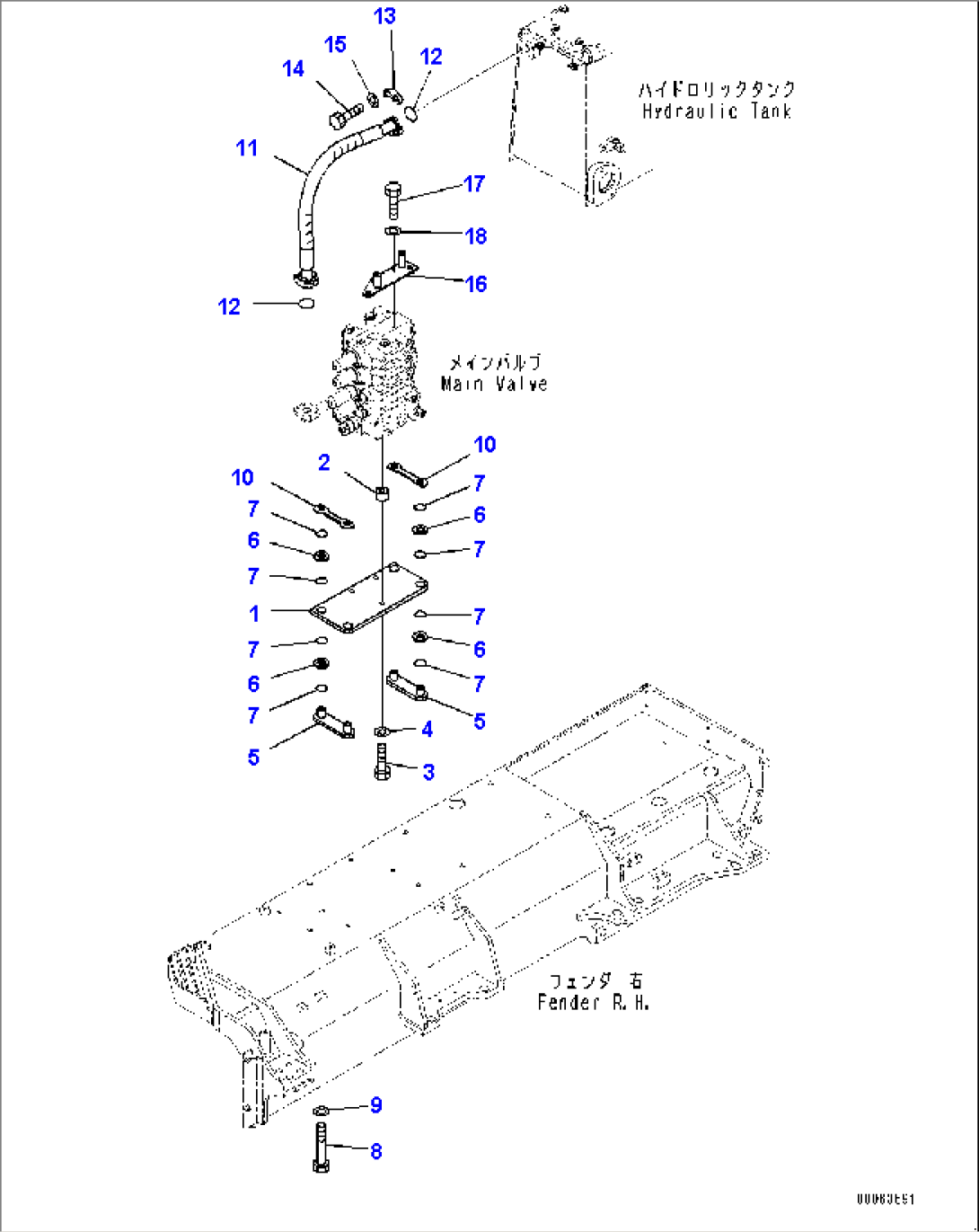

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-60-42511 | Bracket | 85077-85383 | |
| 2 | 17A-60-42520 | Plate | 85077-85383 | |
| 3 | 01010-81470 | Bolt | 85077-85383 | |
| 4 | 01643-31445 | Washer, Flat | 85077-85383 | |
| 5 | 17A-60-41520 | Bracket | 85077-85383 | |
| 6 | 14X-60-12120 | Cushion | 85077-85383 | |
| 7 | 07000-13025 | O-ring | 85077-85383 | |
| 8 | 01010-81275 | Bolt | 85077-85383 | |
| 9 | 01643-31232 | Washer | 85077-85383 | |
| 10 | 17A-60-41531 | Bracket | 85077-85383 | |
| 11 | 07296-412A7 | Hose, Flange Type | 85077-85383 | |
| 12 | 07000-73038 | O-ring | 85077-85383 | |
| 13 | 07371-31255 | Flange, Split | 85077-85383 | |
| 14 | 07372-21035 | Bolt | 85077-85383 | |
| 15 | 01643-51032 | Washer | 85077-85383 | |
| 16 | 17A-61-44111 | Plate | 85077-85383 | |
| 17 | 01010-80812 | Bolt | 85077-85383 | |
| 18 | 01643-30823 | Washer | 85077-85383 |
