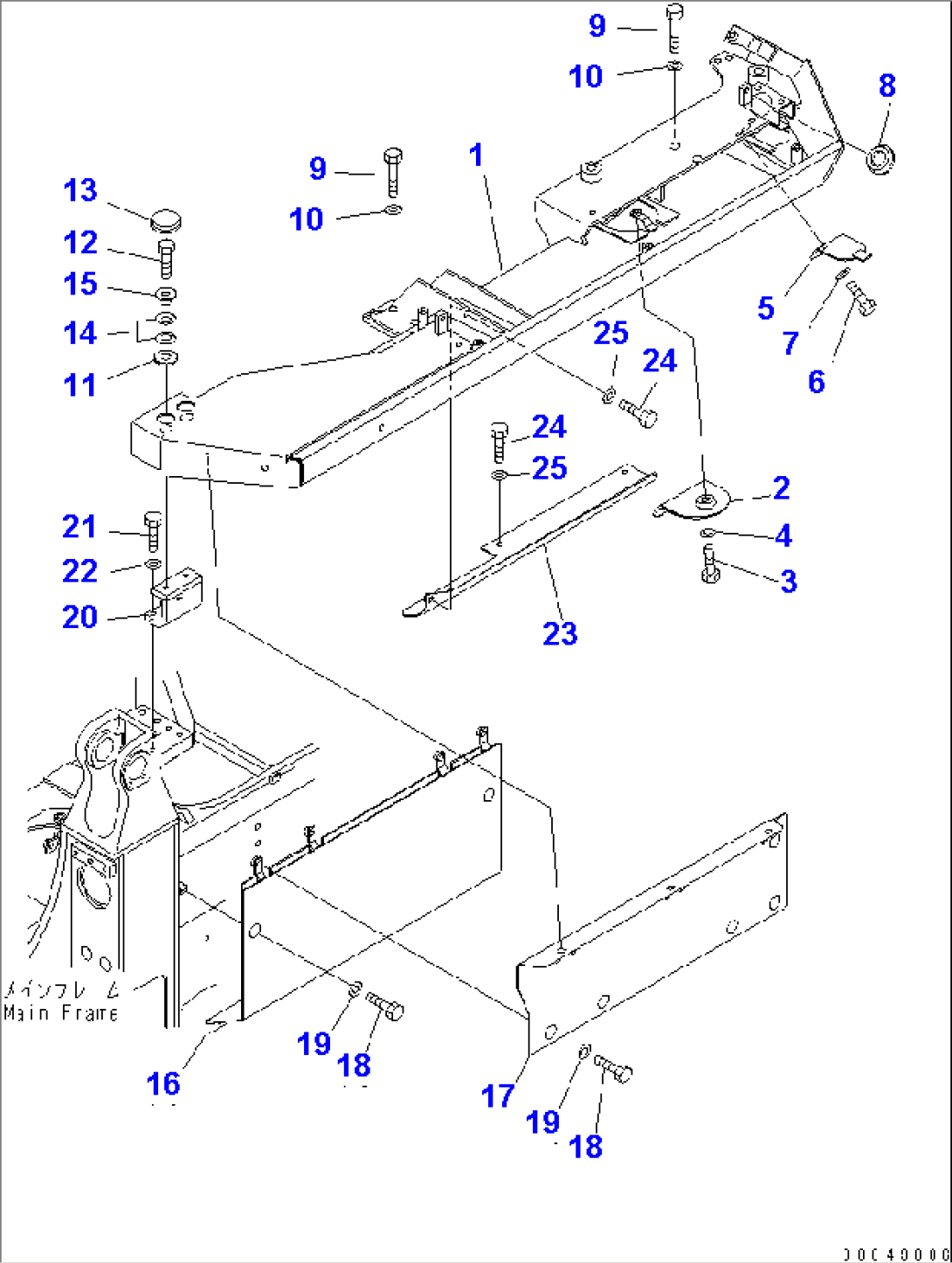

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-54-63930 | FENDER,L.H. | 1003- | |
| 1 | 134-54-63811 | FENDER,L.H. | 1001-1002 | |
| 2 | 134-54-63131 | COVER | 1001- | |
| 3 | 01010-81225 | BOLT | 1001- | |
| 4 | 01643-31232 | WASHER | 1001- | |
| 5 | 134-54-63271 | COVER | 1001- | |
| 6 | 01010-81225 | BOLT | 1001- | |
| 7 | 01643-31232 | WASHER | 1001- | |
| 8 | 09415-05022 | CAP | 1001- | |
| 9 | 01010-82050 | BOLT | 1001- | |
| 10 | 01643-32060 | WASHER | 1001- | |
| 11 | 134-54-63880 | PLATE | 1001- | |
| 12 | 01010-81245 | BOLT | 1001- | |
| 13 | 09415-03614 | CAP | 1001- | |
| 14 | 175-54-27350 | SPRING | 1001- | |
| 15 | 134-54-62541 | SPACER | 1001- | |
| 16 | 134-54-63221 | COVER,L.H. | 1001- | |
| 17 | 134-54-63950 | COVER,L.H. | 1003- | |
| 17 | 134-54-63830 | COVER,L.H. | 1001-1002 | |
| 18 | 01010-81225 | BOLT | 1001- | |
| 19 | 01643-31232 | WASHER | 1001- | |
| 20 | 134-54-62532 | BRACKET | 1001- | |
| 21 | 01010-81235 | BOLT | 1001- | |
| 22 | 01643-31232 | WASHER | 1001- | |
| 23 | 134-21-66120 | COVER,L.H. | 1001- | |
| 24 | 01010-81225 | BOLT | 1001- | |
| 25 | 01643-31232 | WASHER | 1001- |
