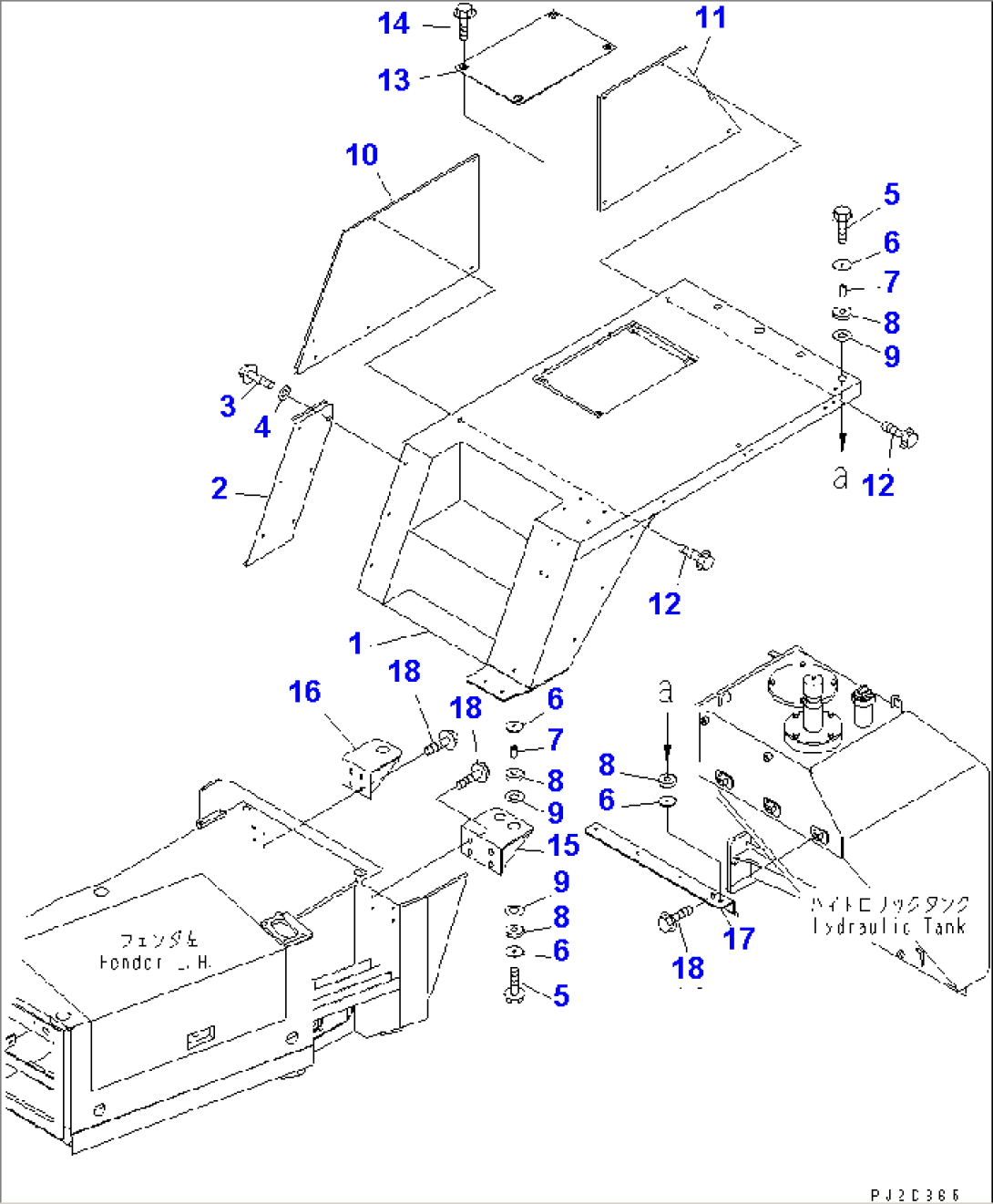

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-54-12116 | FENDER,L.H. | A10001- | |
| 2 | 56B-54-12132 | COVER,L.H. | A10001- | |
| 3 | 01435-01220 | BOLT | A10001- | |
| 4 | 01643-31232 | WASHER | A10001- | |
| 5 | 01435-01265 | BOLT | A10001- | |
| 6 | 416-03-11210 | WASHER | A10001- | |
| 7 | 6142-22-4640 | SPACER | A10001- | |
| 8 | 416-03-11221 | CUSHION | A10001- | |
| 9 | 56B-54-11590 | SPACER | A10001- | |
| 10 | 56B-54-12222 | COVER | A10001- | |
| 11 | 56B-54-12233 | COVER,L.H. | A10001- | |
| 12 | 01435-01020 | BOLT | A10001- | |
| 13 | 56B-54-12270 | COVER | A10001- | |
| 14 | 01435-01016 | BOLT | A10001- | |
| 15 | 56B-54-12A10 | BRACKET | A10001- | |
| 16 | 56B-54-12A20 | BRACKET | A10001- | |
| 17 | 56B-54-12A30 | BRACKET | A10001- | |
| 18 | 01435-01220 | BOLT | A10001- |
