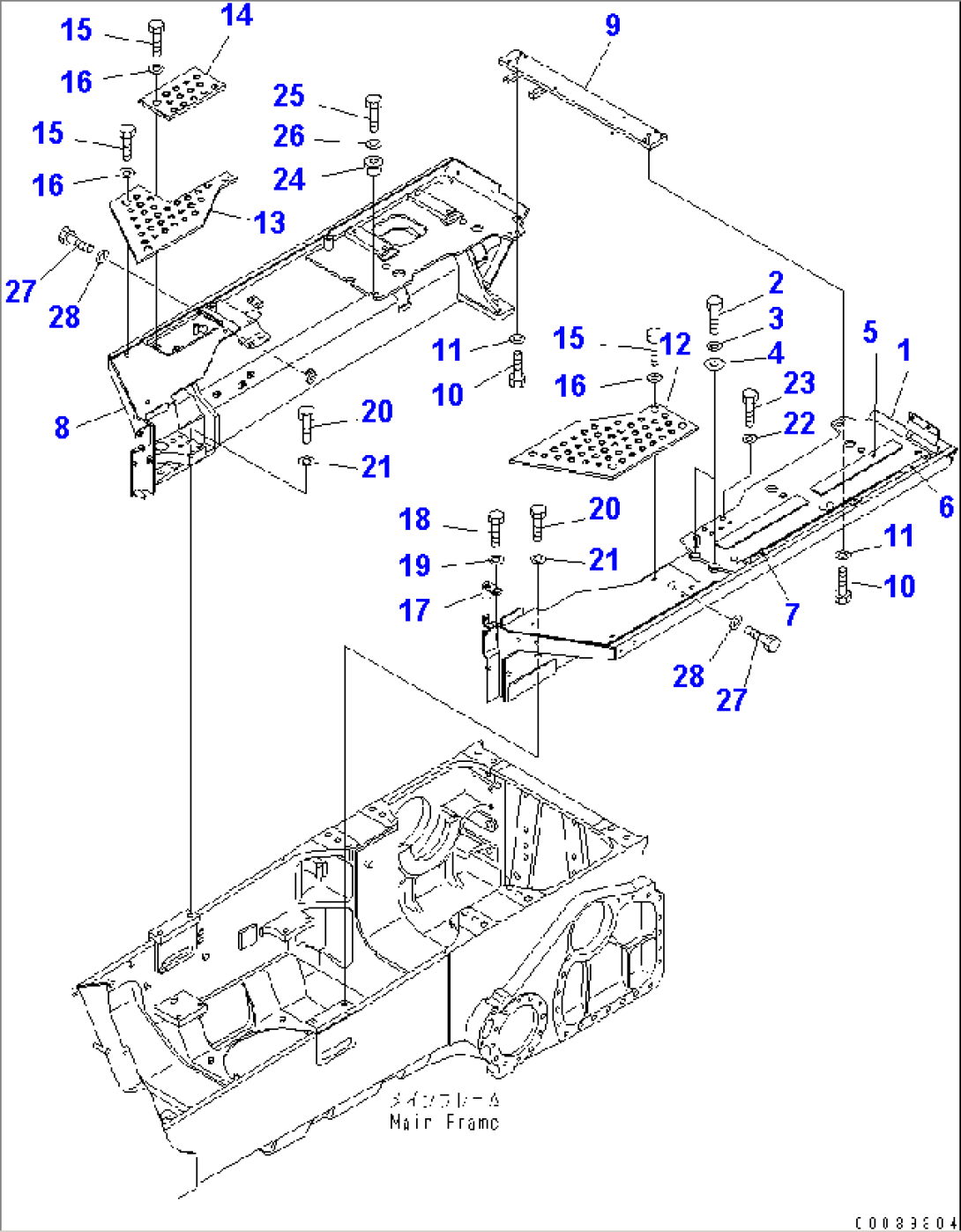

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-54-39724 | FENDER,L.H. | 71397- | |
| 1 | 14X-54-39722 | FENDER,L.H. | 70496-71396 | |
| 1 | 14X-54-39721 | FENDER,L.H. | 69001-70495 | |
| 2 | 01010-81235 | BOLT | 69001- | |
| 3 | 01643-31232 | WASHER | 69001- | |
| 4 | 565-43-14630 | SPACER | 69001- | |
| 5 | 14X-06-31620 | CUSHION | 69001- | |
| 6 | 14X-06-31630 | CUSHION | 69001- | |
| 7 | 14X-06-31641 | CUSHION | 69001- | |
| 7 | (\2\14X-06-31640) | CUSHION | (69001-70527) | |
| 8 | 14X-54-39732 | FENDER,R.H. | 71680- | |
| 8 | 14X-54-39731 | FENDER,R.H. | 71397-71679 | |
| 8 | 14X-54-39730 | FENDER,R.H. | 69001-71396 | |
| 9 | 14X-54-33142 | BRACKET | 69001- | |
| 10 | 01010-81645 | BOLT | 69001- | |
| 11 | 01643-31645 | WASHER | 69001- | |
| 12 | 14X-54-35550 | STEP,L.H. | 69001- | |
| 13 | 14X-54-35560 | STEP,R.H. | 69001- | |
| 14 | 14X-54-33131 | STEP,R.H. | 69001- | |
| 15 | 01010-81225 | BOLT | 69001- | |
| 16 | 01643-31232 | WASHER | 69001- | |
| 17 | 14X-50-35140 | BRACKET | 69001- | |
| 18 | 01010-81020 | BOLT | 69001- | |
| 19 | 01643-31032 | WASHER | 69001- | |
| 20 | 01010-82460 | BOLT | 69001- | |
| 21 | 01643-32460 | WASHER | 69001- | |
| 22 | 01643-31232 | WASHER | 69001- | |
| 23 | 17A-54-28990 | BOLT | 69001- | |
| 24 | 21T-72-74370 | COLLAR | 69001- | |
| 25 | 01010-81645 | BOLT | 69001- | |
| 26 | 01643-31645 | WASHER | 69001- | |
| 27 | 01010-81630 | BOLT | 69001- | |
| 28 | 01643-31645 | WASHER | 69001- |
