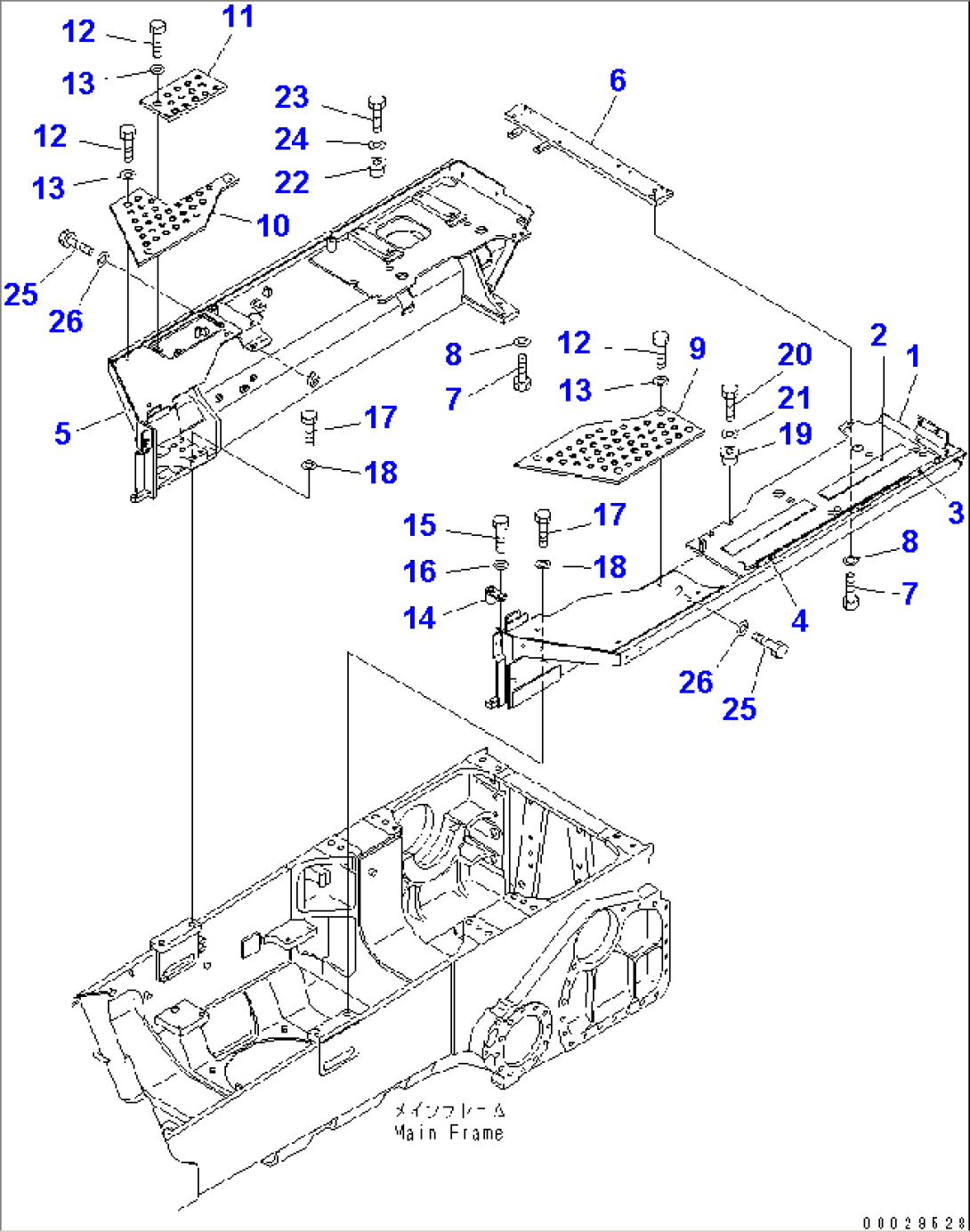

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-54-33235 | FENDER,L.H. | 67425-67701 | |
| 1 | 14X-54-33234 | FENDER,L.H. | 67001-67424 | |
| 2 | 14X-06-31620 | CUSHION | 67425-@ | |
| 3 | 14X-06-31630 | CUSHION | 67425-@ | |
| 4 | 14X-06-31640 | CUSHION | 67425-@ | |
| 5 | 14X-54-33244 | FENDER,R.H. | 67001-@ | |
| 6 | 14X-54-33142 | BRACKET | 67001-@ | |
| 7 | 01010-81645 | BOLT | 67001-@ | |
| 8 | 01643-31645 | WASHER | 67001-@ | |
| 9 | 14X-54-35550 | STEP,L.H. | 67001-@ | |
| 10 | 14X-54-35560 | STEP,R.H. | 67001-@ | |
| 11 | 14X-54-33131 | STEP,R.H. | 67001-@ | |
| 12 | 01010-81225 | BOLT | 67001-@ | |
| 13 | 01643-31232 | WASHER | 67001-@ | |
| 14 | 14X-50-35140 | BRACKET | 67001-@ | |
| 15 | 01010-81020 | BOLT | 67001-@ | |
| 16 | 01643-31032 | WASHER | 67001-@ | |
| 17 | 01010-82460 | BOLT | 67001-@ | |
| 18 | 01643-32460 | WASHER | 67001-@ | |
| 19 | 14W-54-13190 | BOSS | 67001-67701 | |
| 20 | 01010-81235 | BOLT | 67001-67701 | |
| 21 | 01643-31232 | WASHER | 67001-67701 | |
| 22 | 21T-72-74370 | COLLAR | 67001-@ | |
| 23 | 01010-81645 | BOLT | 67001-@ | |
| 24 | 01643-31645 | WASHER | 67001-@ | |
| 25 | 01010-81630 | BOLT | 67001-@ | |
| 26 | 01643-31645 | WASHER | 67001-@ |
