| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-54-44162 | COVER | 85001- | |
| 2 | 01010-81230 | BOLT | 85001- | |
| 3 | 01643-31232 | WASHER | 85001- | |
| 4 | 17A-54-44151 | PLATE | 85001- | |
| 5 | 01245-00820 | SCREW | 85001- | |
| 6 | 01643-70823 | WASHER | 85001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D155a 6 s/n 85001 85076
- Guard
- Fender (rear step)(#85001 )
Поиск по каталогу

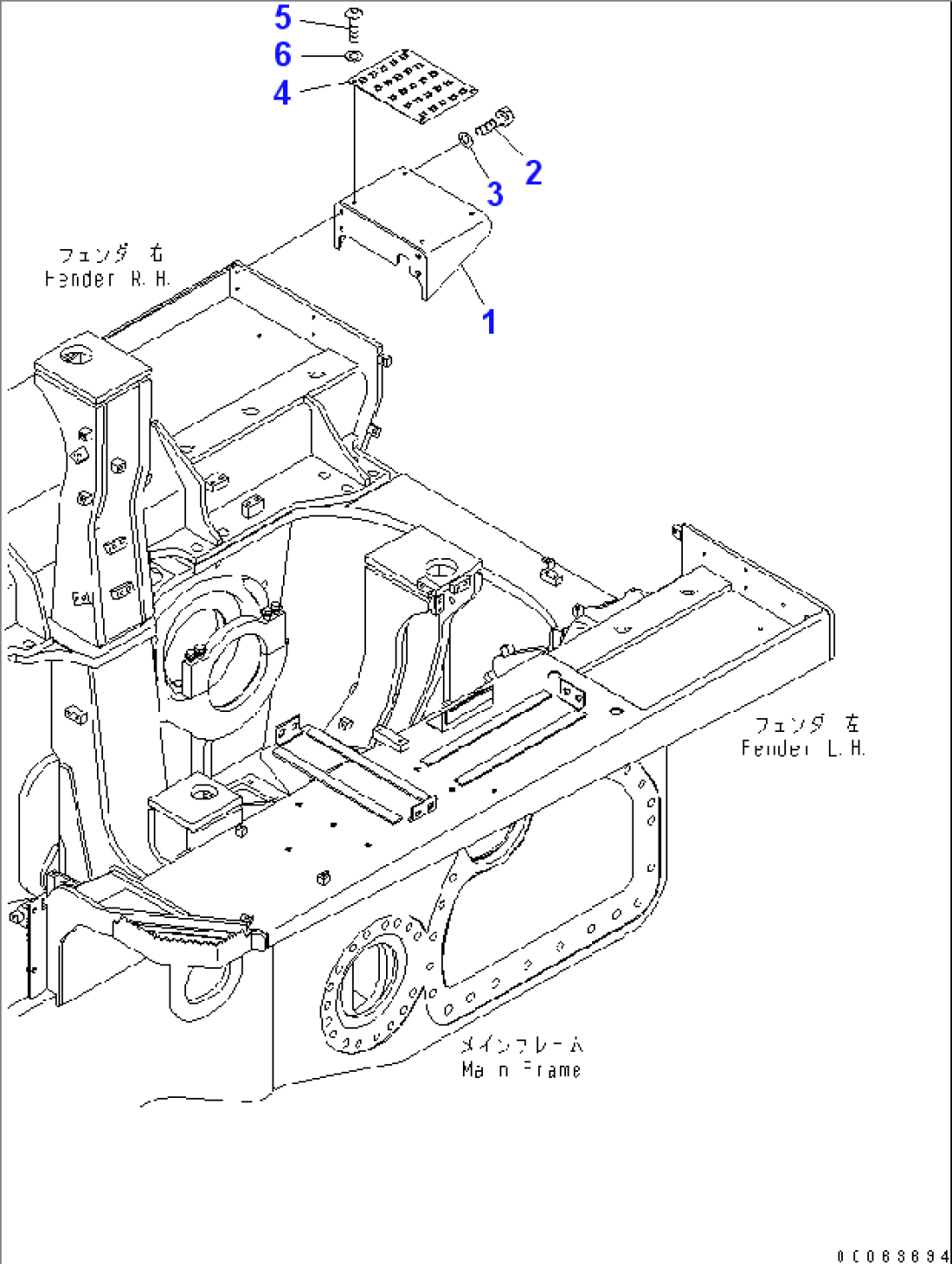

FENDER (REAR STEP)(#85001-)
