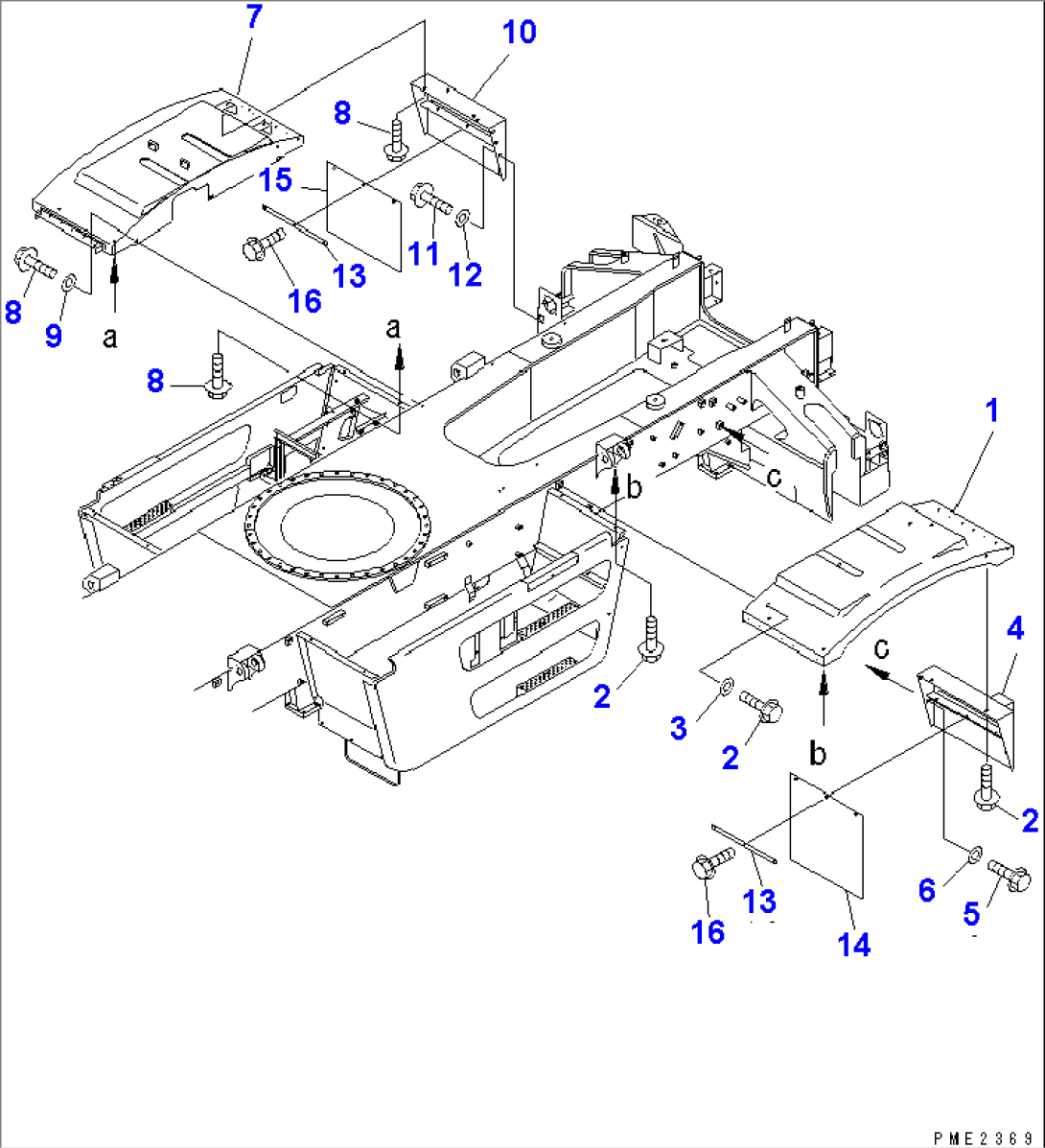

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22T-54-21340 | FENDER,REAR L.H. | 10001-10300 | |
| 2 | 01435-01020 | BOLT | 10001-10300 | |
| 3 | 424-09-12650 | WASHER | 10001-10300 | |
| 4 | 22T-54-21350 | COVER | 10001-10300 | |
| 5 | 01435-01020 | BOLT | 10001-10300 | |
| 6 | 424-09-12650 | WASHER | 10001-10300 | |
| 7 | 22T-54-21230 | FENDER,REAR R.H. | 10001-10300 | |
| 8 | 01435-01020 | BOLT | 10001-10300 | |
| 9 | 424-09-12650 | WASHER | 10001-10300 | |
| 10 | 22T-54-21271 | COVER | 10022-10300 | |
| 10 | 22T-54-21270 | COVER | 10001-10021 | |
| 11 | 01435-01020 | BOLT | 10001-10300 | |
| 12 | 424-09-12650 | WASHER | 10001-10300 | |
| 13 | 22T-54-21280 | PLATE | 10001-10300 | |
| 14 | 22T-54-21290 | PLATE,L.H. | 10001-10300 | |
| 15 | 22T-54-21360 | PLATE,R.H. | 10001-10300 | |
| 16 | 01435-01020 | BOLT | 10001-10300 |
