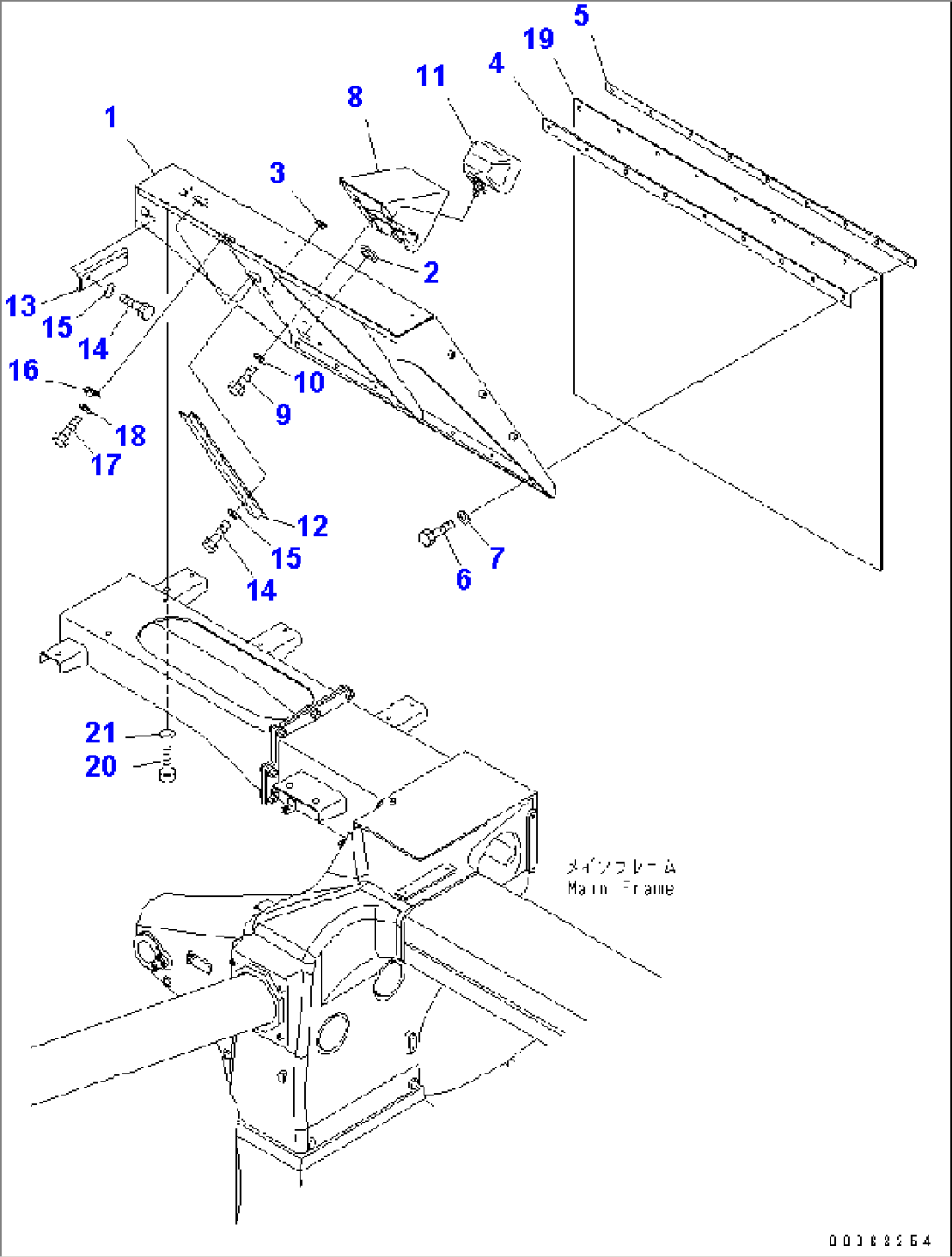

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-54-87171 | FENDER | A10001- | |
| 2 | 09415-05016 | CAP | A10001- | |
| 3 | 09415-02512 | CAP | A10001- | |
| 4 | 561-54-61670 | PLATE | A10001- | |
| 5 | 561-54-61541 | PLATE | A10001- | |
| 6 | 01010-81235 | BOLT | A10001- | |
| 7 | 01643-31232 | WASHER | A10001- | |
| 8 | 561-85-81110 | COVER | A10001- | |
| 9 | 01010-81220 | BOLT | A10001- | |
| 10 | 01643-31232 | WASHER | A10001- | |
| 11 | 421-06-23310 | LAMP ASS'Y | A10001- | |
| 421-06-23340 | LENS | A10001- | ||
| 421-06-23330 | BULB¤ 70W | A10001- | ||
| 01582-11411 | NUT | A10001- | ||
| 01602-21442 | WASHER | A10001- | ||
| 01643-31445 | WASHER | A10001- | ||
| 08056-00271 | CONNECTOR | A10001- | ||
| 12 | 561-85-81160 | COVER | A10001- | |
| 13 | 561-85-81170 | COVER | A10001- | |
| 14 | 01010-81020 | BOLT | A10001- | |
| 15 | 01643-31032 | WASHER | A10001- | |
| 16 | 04434-50810 | CLIP | A10001- | |
| 17 | 01010-81016 | BOLT | A10001- | |
| 18 | 01643-31032 | WASHER | A10001- | |
| 19 | 561-54-87420 | GUARD | A10001- | |
| 20 | 01010-81230 | BOLT | A10001- | |
| 21 | 01643-31232 | WASHER | A10001- |
