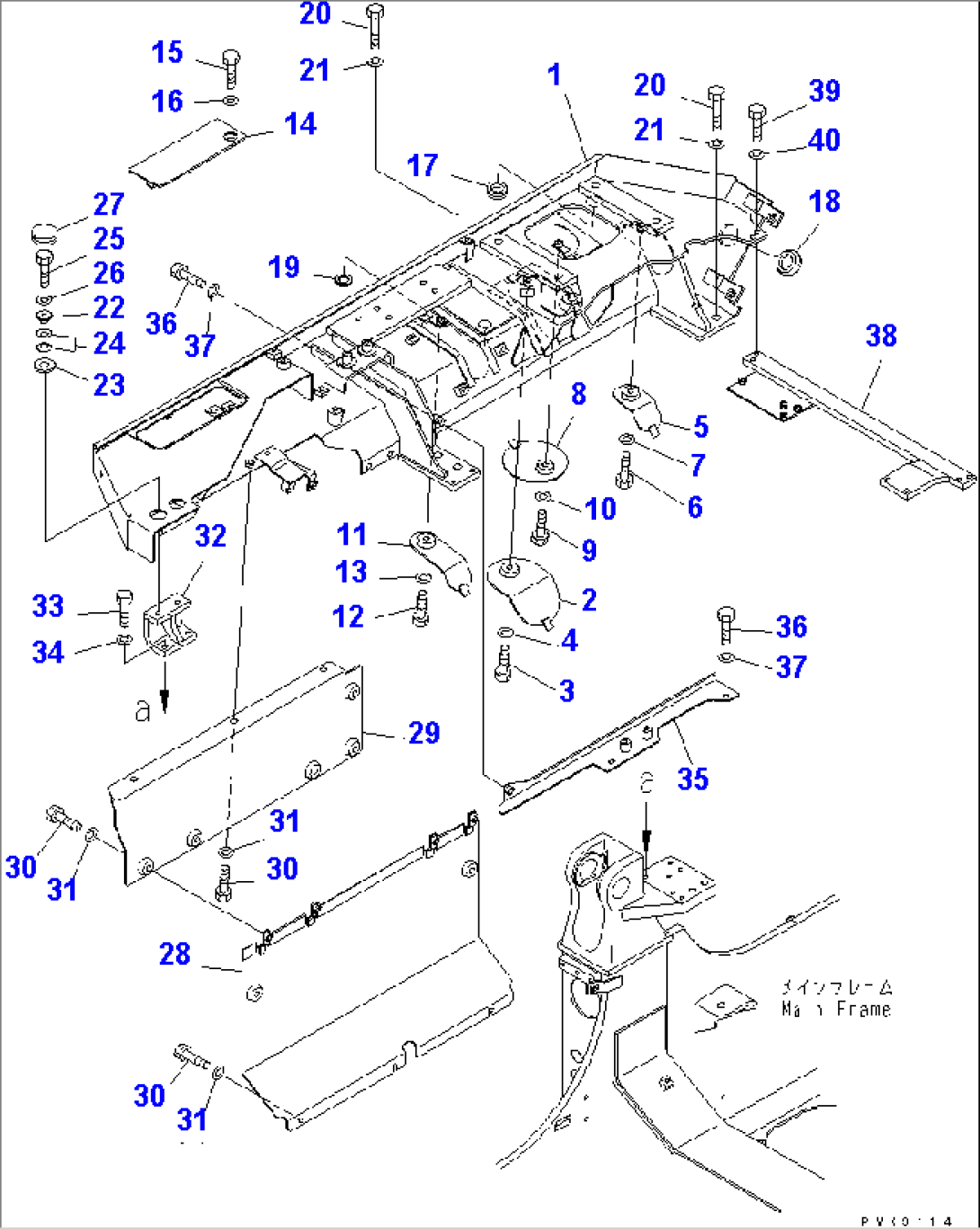

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-54-63124 | FENDER,R.H. | 1165- | |
| 1 | 134-54-63123 | FENDER,R.H. | 1001-1164 | |
| 2 | 134-54-63131 | COVER | 1001- | |
| 3 | 01010-81225 | BOLT | 1001- | |
| 4 | 01643-31232 | WASHER | 1001- | |
| 5 | 134-54-63141 | COVER | 1001- | |
| 6 | 01010-81225 | BOLT | 1001- | |
| 7 | 01643-31232 | WASHER | 1001- | |
| 8 | 134-54-63181 | COVER | 1001- | |
| 9 | 01010-81225 | BOLT | 1001- | |
| 10 | 01643-31232 | WASHER | 1001- | |
| 11 | 134-54-63281 | COVER | 1001- | |
| 12 | 01010-81225 | BOLT | 1001- | |
| 13 | 01643-31232 | WASHER | 1001- | |
| 14 | 14X-54-13132 | COVER | 1001- | |
| 15 | 01010-81225 | BOLT | 1001- | |
| 16 | 01643-31232 | WASHER | 1001- | |
| 17 | 09415-03614 | CAP | 1001- | |
| 18 | 09415-05022 | CAP | 1001- | |
| 19 | 09415-02512 | CAP | 1001- | |
| 20 | 01010-82050 | BOLT | 1001- | |
| 21 | 01643-32060 | WASHER | 1001- | |
| 22 | 134-54-62541 | SPACER | 1001- | |
| 23 | 134-54-62560 | SPACER | 1064- | |
| 23 | 134-54-62550 | SPACER | 1001-1063 | |
| 24 | 175-54-27350 | SPRING | 1001- | |
| 25 | 01010-81245 | BOLT | 1001- | |
| 26 | 01643-31232 | WASHER | 1001- | |
| 27 | 09415-03614 | CAP | 1001- | |
| 28 | 134-54-63231 | COVER,R.H. | 1001- | |
| 29 | 134-54-63250 | COVER | 1001- | |
| 30 | 01010-81225 | BOLT | 1001- | |
| 31 | 01643-31232 | WASHER | 1001- | |
| 32 | 134-54-62532 | BRACKET | 1001- | |
| 33 | 01010-81235 | BOLT | 1001- | |
| 34 | 01643-31232 | WASHER | 1001- | |
| 35 | 134-21-61291 | COVER,R.H. | 1001- | |
| 36 | 01010-81225 | BOLT | 1001- | |
| 37 | 01643-31232 | WASHER | 1001- | |
| 38 | 134-54-63152 | PLATE | 1001- | |
| 39 | 01010-81235 | BOLT | 1001- | |
| 40 | 01643-31232 | WASHER | 1001- |
