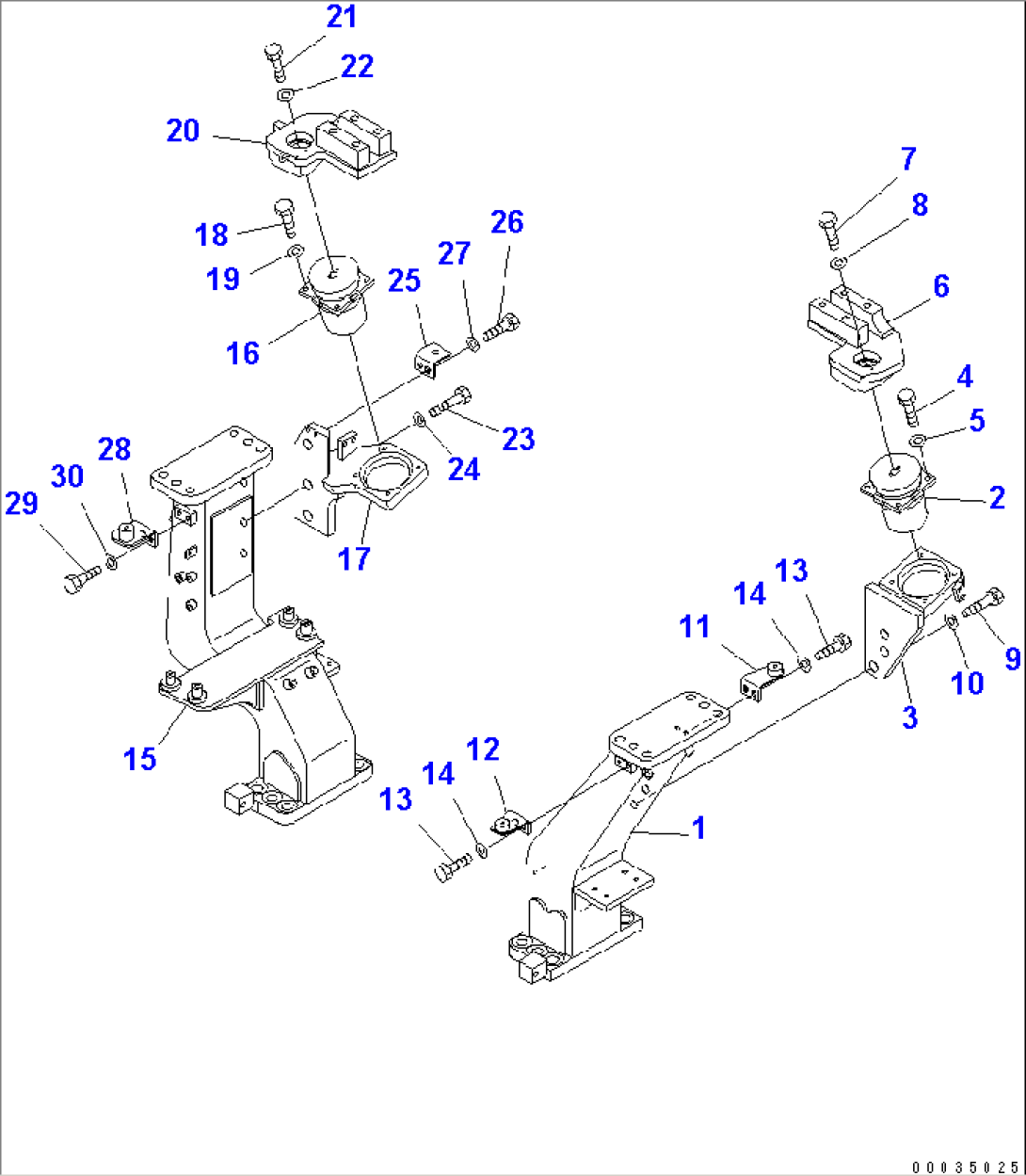

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-Z16-2751 | BRACKET,L.H. | 69001- | |
| 2 | 8A31-54-1110 | CUSHION | 69001- | |
| 3 | 14X-54-37514 | BRACKET | 70496- | |
| 3 | 14X-54-37513 | BRACKET,L.H. | 69001-70495 | |
| 4 | 01010-81240 | BOLT | 69001- | |
| 5 | 01643-31232 | WASHER | 69001- | |
| 6 | 14X-54-37531 | BRACKET,L.H. | 69001- | |
| 7 | 14X-54-37550 | BOLT | 69001- | |
| 8 | 01643-32060 | WASHER | 69001- | |
| 9 | 01010-82460 | BOLT | 69001- | |
| 10 | 01643-32460 | WASHER | 69001- | |
| 11 | 14X-54-34371 | BRACKET | 69001- | |
| 12 | 14X-54-34381 | BRACKET | 69001- | |
| 13 | 01010-81225 | BOLT | 69001- | |
| 14 | 01643-31232 | WASHER | 69001- | |
| 15 | 14X-54-33325 | BRACKET,R.H. | 69001- | |
| 16 | 8A31-54-1110 | CUSHION | 69001- | |
| 17 | 14X-54-37522 | BRACKET,R.H. | 69001- | |
| 18 | 01010-81240 | BOLT | 69001- | |
| 19 | 01643-31232 | WASHER | 69001- | |
| 20 | 14X-54-37543 | BRACKET,R.H. | 69001- | |
| 21 | 14X-54-37550 | BOLT | 69001- | |
| 22 | 01643-32060 | WASHER | 69001- | |
| 23 | 01010-82460 | BOLT | 69001- | |
| 24 | 01643-32460 | WASHER | 69001- | |
| 25 | 14X-54-34420 | BRACKET | 69001- | |
| 26 | 01010-81225 | BOLT | 69001- | |
| 27 | 01643-31232 | WASHER | 69001- | |
| 28 | 14X-54-34431 | BRACKET | 69001- | |
| 29 | 01010-81225 | BOLT | 69001- | |
| 30 | 01643-31232 | WASHER | 69001- |
