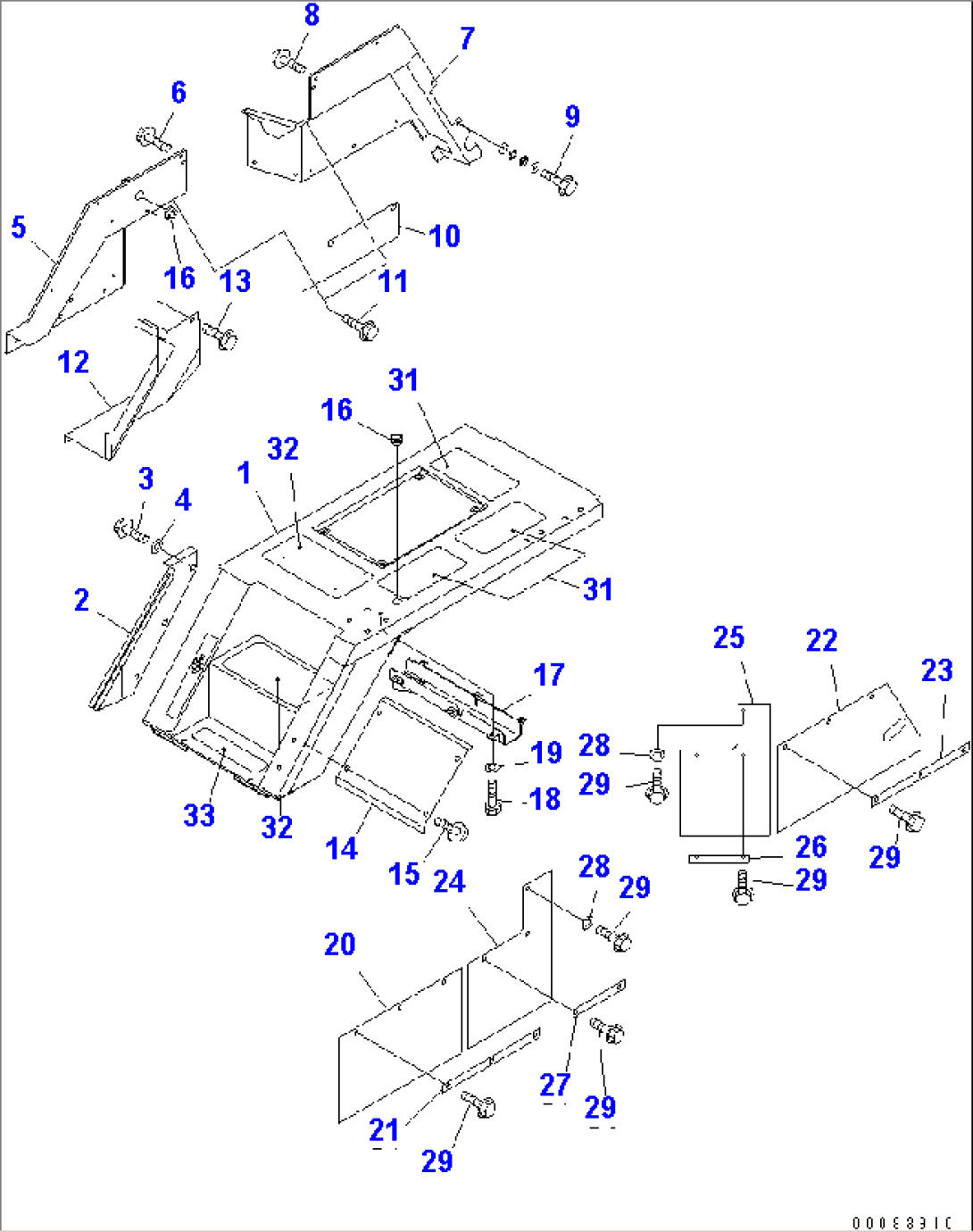

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56D-54-17810 | FENDER,L.H. | 1626- | |
| 2 | 56D-54-12132 | COVER,L.H. | 1626- | |
| 3 | 01435-01220 | BOLT | 1626- | |
| 4 | 01643-31232 | WASHER | 1626- | |
| 5 | 56D-54-17830 | COVER,L.H. | 1626- | |
| 6 | 01435-01020 | BOLT | 1626- | |
| 7 | 56D-54-12222 | COVER | 1626- | |
| 8 | 01435-01020 | BOLT | 1626- | |
| 9 | 01435-01035 | BOLT | 1626- | |
| 10 | 56D-54-12231 | COVER | 1626- | |
| 11 | 01435-01020 | BOLT | 1626- | |
| 12 | 56D-54-12281 | COVER,L.H. | 1626- | |
| 13 | 01435-01020 | BOLT | 1626- | |
| 14 | 56D-54-12270 | COVER | 1626- | |
| 15 | 01435-01016 | BOLT | 1626- | |
| 16 | 08037-02512 | GROMMET | 1626- | |
| 17 | 56D-54-17610 | COVER,L.H. | 1626- | |
| 18 | 01010-81016 | BOLT | 1626- | |
| 19 | 01643-31032 | WASHER | 1626- | |
| 20 | 56D-54-12441 | GUARD | 1626- | |
| 21 | 56B-54-12331 | PLATE | 1626- | |
| 22 | 56D-54-12451 | GUARD | 1626- | |
| 23 | 56B-54-12331 | PLATE | 1626- | |
| 24 | 56D-54-12740 | GUARD | 1626- | |
| 25 | 56D-54-12750 | GUARD | 1626- | |
| 26 | 56D-54-12760 | PLATE | 1626- | |
| 27 | 56B-54-12750 | PLATE | 1626- | |
| 28 | 415-64-13120 | WASHER | 1626- | |
| 29 | 01435-01020 | BOLT | 1626- | |
| 31 | 417-06-11321 | PLATE | 1626- | |
| 32 | 56B-93-11220 | RUBBER | 1626- | |
| 33 | 22T-98-11260 | RUBBER,NONSKID | 1626- |
