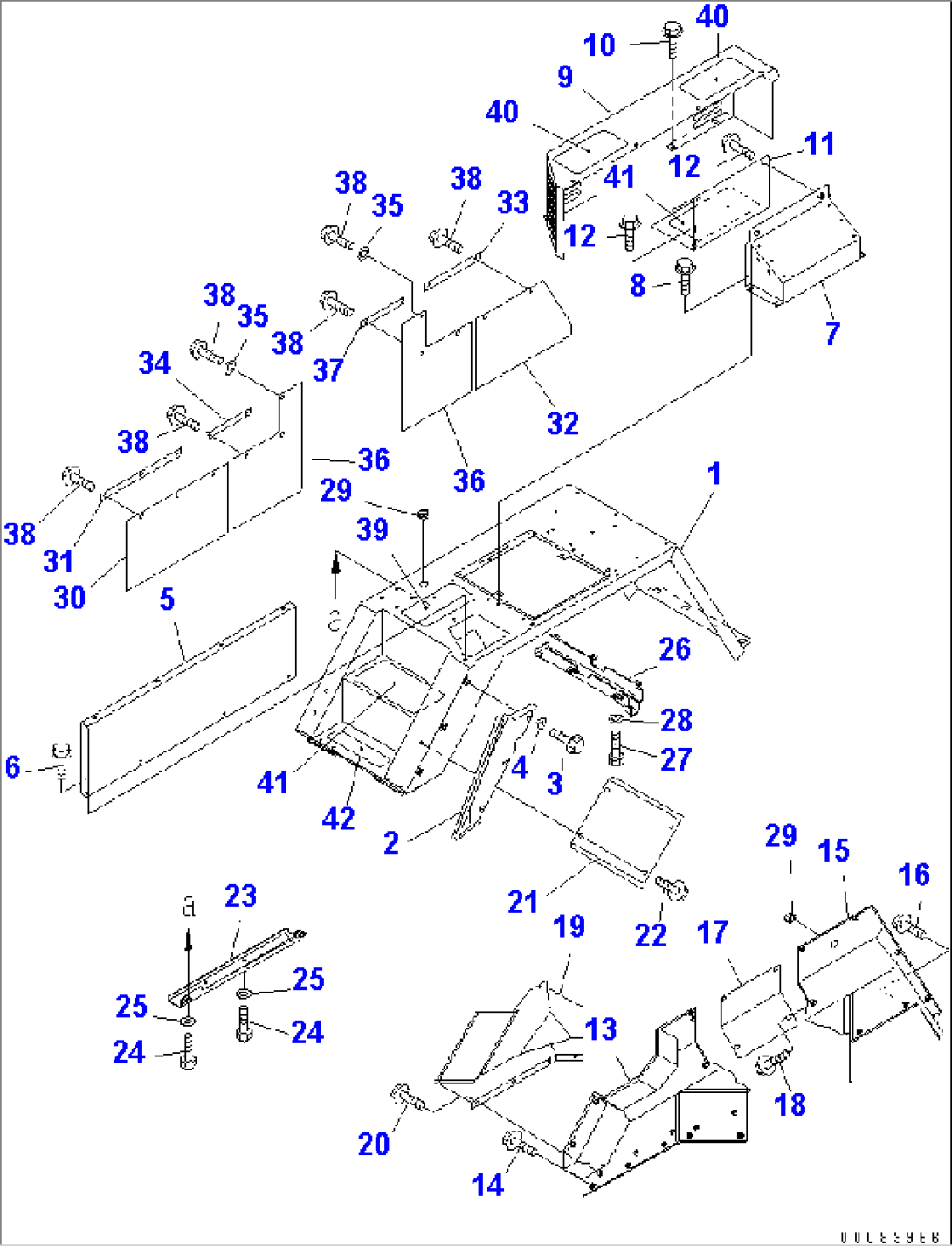

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56D-54-17820 | FENDER,R.H. | 1626- | |
| 2 | 56D-54-12142 | COVER,R.H. | 1626- | |
| 3 | 01435-01220 | BOLT | 1626- | |
| 4 | 01643-31232 | WASHER | 1626- | |
| 5 | 56D-54-12310 | BRACKET | 1626- | |
| 6 | 01435-01220 | BOLT | 1626- | |
| 7 | 56D-54-12321 | BRACKET | 1626- | |
| 8 | 01435-01220 | BOLT | 1626- | |
| 9 | 56D-54-12152 | COVER | 1626- | |
| 10 | 01435-01220 | BOLT | 1626- | |
| 11 | 56D-54-12171 | COVER | 1626- | |
| 12 | 01435-01220 | BOLT | 1626- | |
| 13 | 56D-54-12242 | COVER | 1626- | |
| 14 | 01435-01020 | BOLT | 1626- | |
| 15 | 56D-54-17840 | COVER,R.H. | 1626- | |
| 16 | 01435-01020 | BOLT | 1626- | |
| 17 | 56D-54-12231 | COVER | 1626- | |
| 18 | 01435-01020 | BOLT | 1626- | |
| 19 | 56D-54-12291 | COVER | 1626- | |
| 20 | 01435-01020 | BOLT | 1626- | |
| 21 | 56D-54-12270 | COVER | 1626- | |
| 22 | 01435-01020 | BOLT | 1626- | |
| 23 | 56D-54-17630 | FENDER,R.H. | 1626- | |
| 24 | 01010-81016 | BOLT | 1626- | |
| 25 | 01643-31032 | WASHER | 1626- | |
| 26 | 56D-54-17620 | FENDER,R.H. | 1626- | |
| 27 | 01010-81016 | BOLT | 1626- | |
| 28 | 01643-31032 | WASHER | 1626- | |
| 29 | 08037-02512 | GROMMET | 1626- | |
| 30 | 56D-54-12441 | GUARD | 1626- | |
| 31 | 56B-54-12331 | PLATE | 1626- | |
| 32 | 56D-54-12470 | GUARD | 1626- | |
| 33 | 56B-54-12760 | PLATE | 1626- | |
| 34 | 56B-54-12750 | PLATE | 1626- | |
| 35 | 415-64-13120 | WASHER | 1626- | |
| 36 | 56D-54-12740 | GUARD | 1626- | |
| 37 | 56B-54-12750 | PLATE | 1626- | |
| 38 | 01435-01020 | BOLT | 1626- | |
| 39 | 417-06-11321 | PLATE | 1626- | |
| 40 | 281-54-19610 | RUBBER | 1626- | |
| 41 | 56B-93-11220 | RUBBER | 1626- | |
| 42 | 22T-98-11260 | RUBBER,NONSKID | 1626- |
