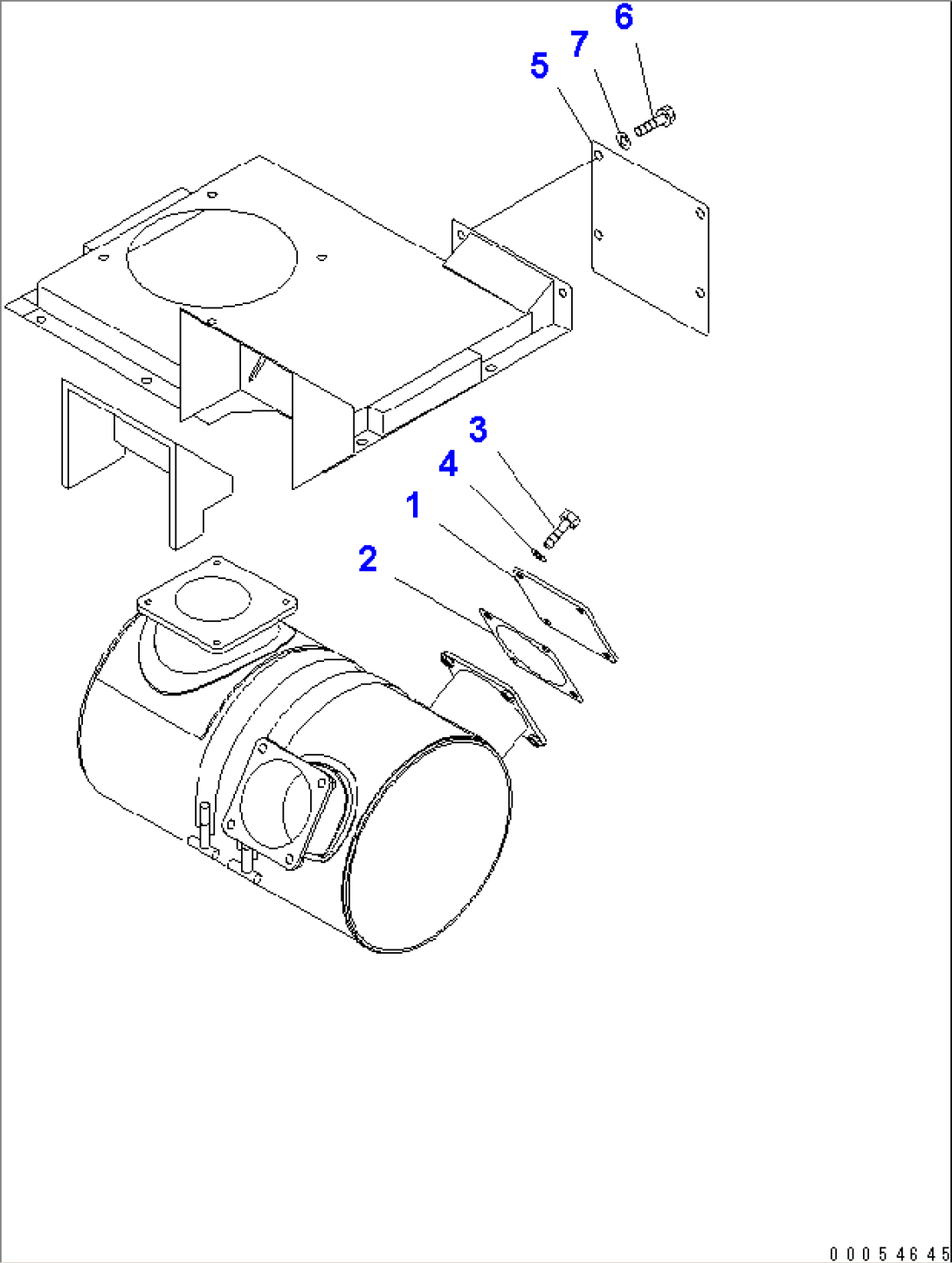

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56D-02-11250 | PLATE | 2001- | |
| 2 | 56B-02-11591 | GASKET | 2001- | |
| 3 | 01010-81030 | BOLT | 2001- | |
| 4 | 01643-31032 | WASHER | 2001- | |
| 5 | 56D-02-21820 | COVER | 2001- | |
| 6 | 01010-81025 | BOLT | 2001- | |
| 7 | 01643-31032 | WASHER | 2001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm300 2 s/n 2001 2784 (ecot3) (for eu)
- Guard
- Fender sub ass'y (r.h.) (shutter plate) (body heating less)(#2001 )
Поиск по каталогу
FENDER SUB ASS'Y (R.H.) (SHUTTER PLATE) (BODY HEATING LESS)(#2001-)
