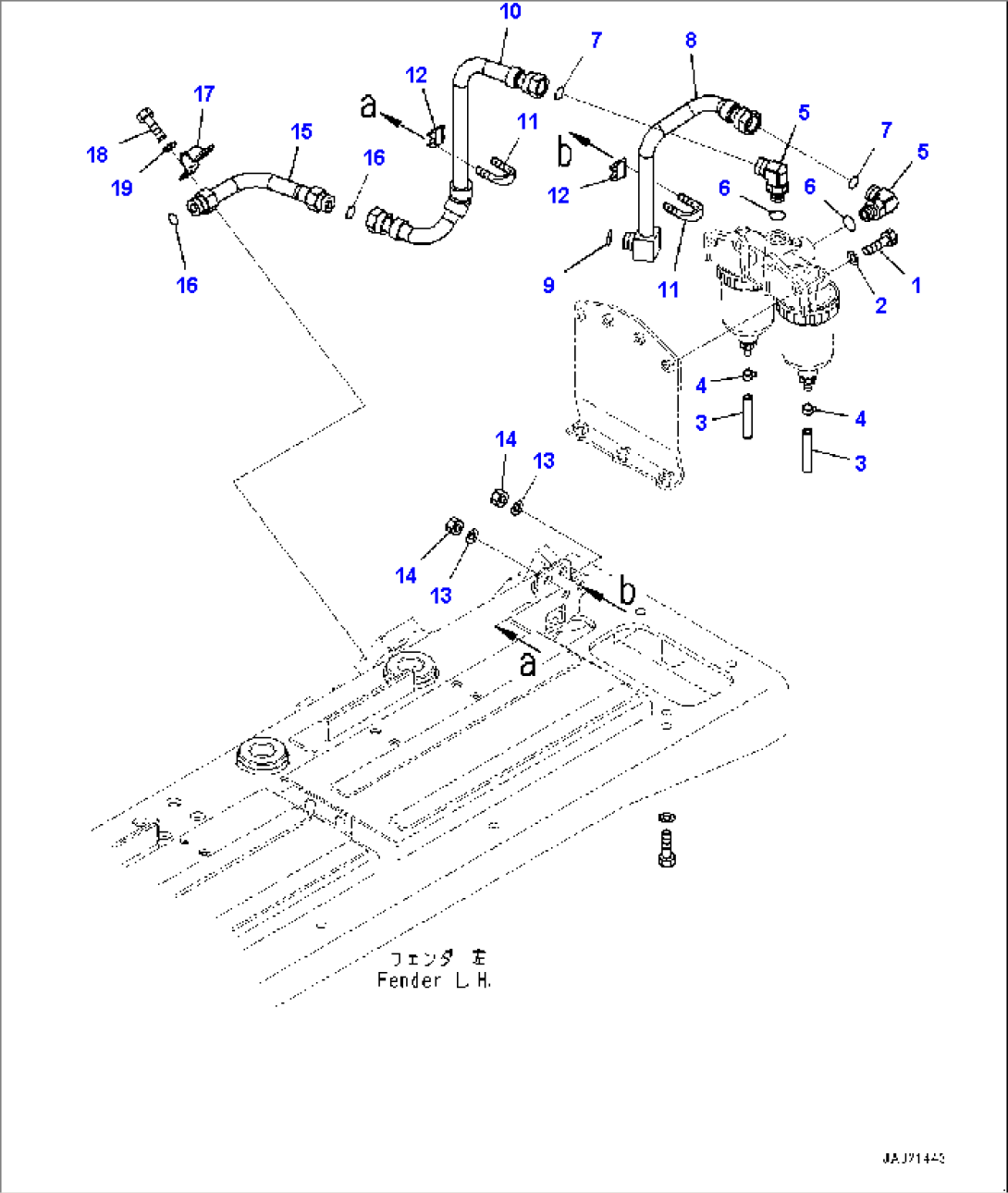

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81030 | Bolt | 11609- | |
| 2 | 01643-31032 | Washer | 11609- | |
| 3 | 07270-20809 | Tube | 11609- | |
| 4 | 07285-00125 | Clip | 11609- | |
| 5 | 02782-10516 | Elbow | 11609- | |
| 6 | 07002-12034 | O-ring | 11609- | |
| 7 | 02896-11015 | O-ring | 11609- | |
| 8 | 154-04-75642 | Tube | 11622- | |
| 8 | 154-04-75641 | Tube | 11609-11621 | |
| 9 | 02896-11015 | O-ring | 11609- | |
| 10 | 154-04-75632 | Tube | 11622- | |
| 10 | 154-04-75631 | Tube | 11609-11621 | |
| 11 | 07283-32236 | Clip, Pipe | 11609- | |
| 12 | 07283-52232 | Seat | 11609- | |
| 13 | 01643-31032 | Washer | 11609- | |
| 14 | 01597-01009 | Nut | 11609- | |
| 15 | 154-04-75622 | Tube | 11622- | |
| 15 | 154-04-75621 | Tube | 11609-11621 | |
| 16 | 02896-11015 | O-ring | 11609- | |
| 17 | 07282-12288 | Clamp, Pipe | 11609- | |
| 18 | 01010-81220 | Bolt | 11609- | |
| 19 | 01643-31232 | Washer | 11609- |
